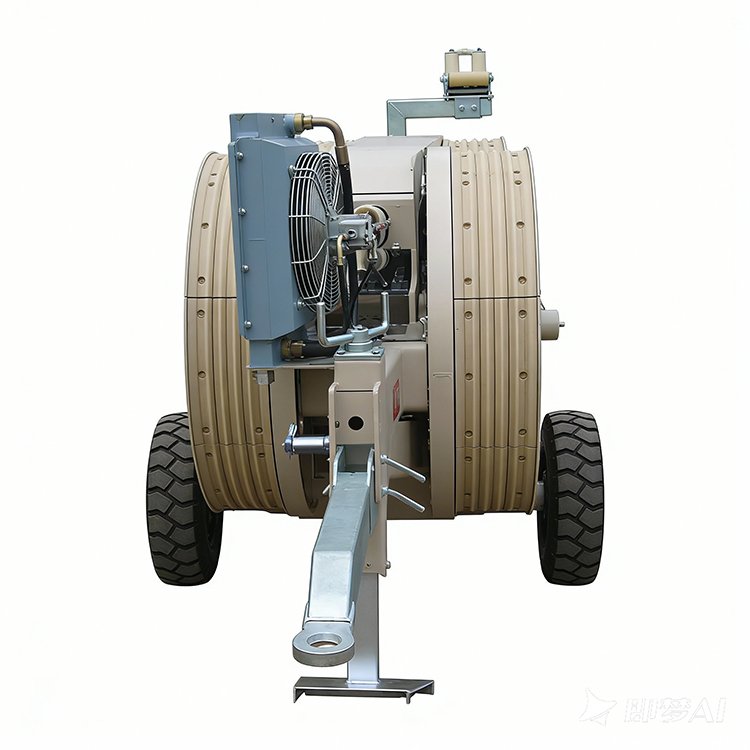

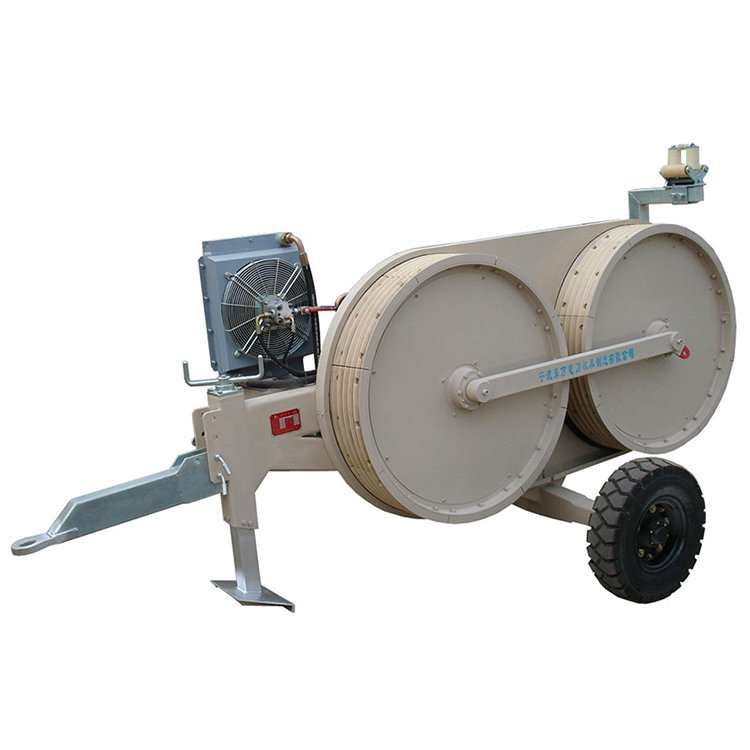

Dual-Reel Hydraulic Cable Tensioner for Stringing
Efficient dual-reel hydraulic cable tensioner for overhead power line stringing. Hydraulic power, trailer-mounted mobility, and high capacity for reliable cable installation.
Technical Parameters
Model SA-YZ30 Hydraulic Tensioner
Maximum Tension (kN) 30
Continuous Tension (kN) 25
Maximum Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) φ1200
Number of Grooves 5
Maximum Pullback (kN) 20
Maximum Diameter of Suitable Conductor (mm) φ32
Engine Power / Speed (kW/rpm) 11/2200
Dimensions(mm) 3560×1600×2220
Weight (kg) 1700
Main Components
Engine 30inese top-brand water-cooled diesel engine
Main Pump/Motor Chinese famous-brand pump and motor
Reducer RR (ltalian)
Radiator AKG
Hydraulic Instrument WIKA
Option Imported engine (Product Model: SA-YZ30B, ltemnumber: 07156)
