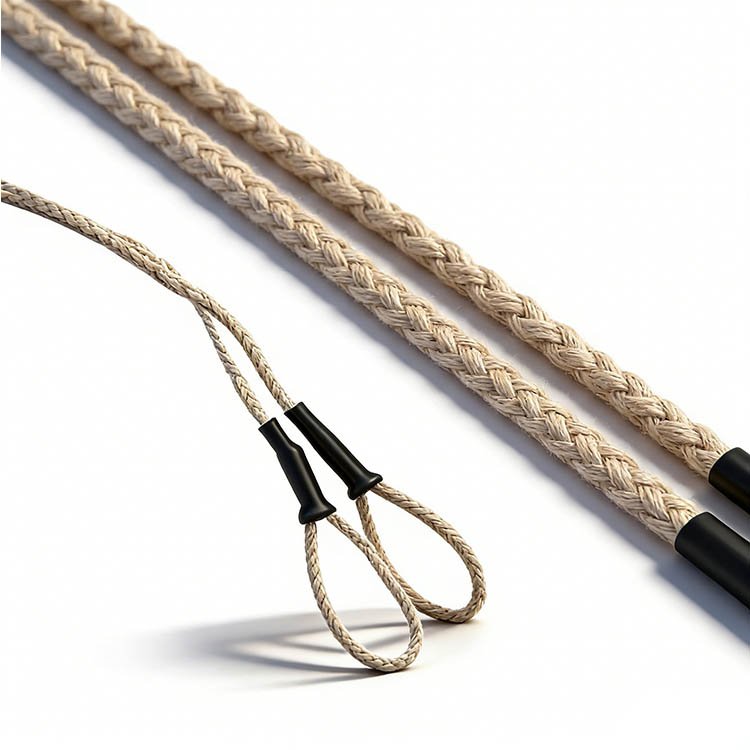

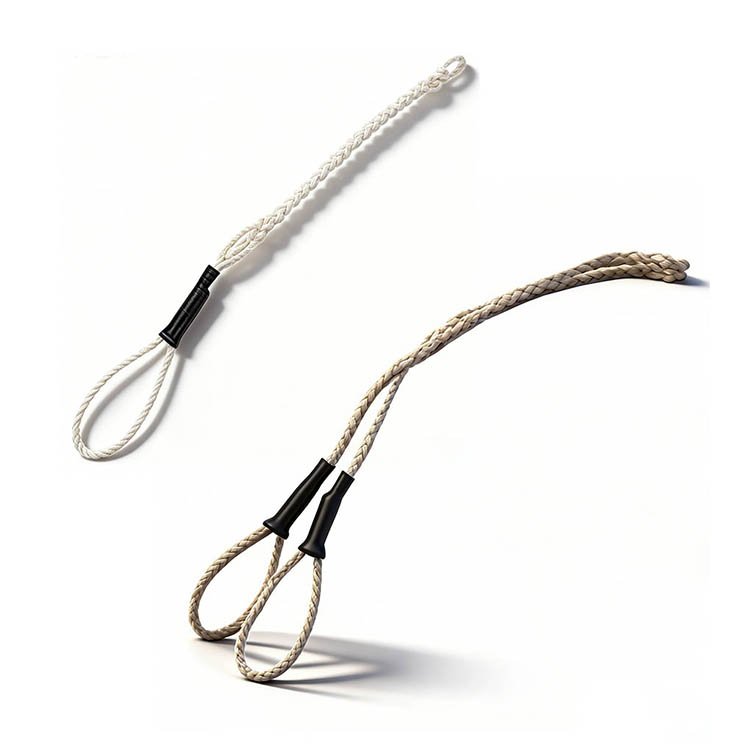

Durable Braided Excavator Tow Ropes
Reliable heavy-duty braided ropes for excavators, engineered for strength and durability in harsh job sites. Secure loops and robust construction ensure safe towing, lifting, and hauling operations.

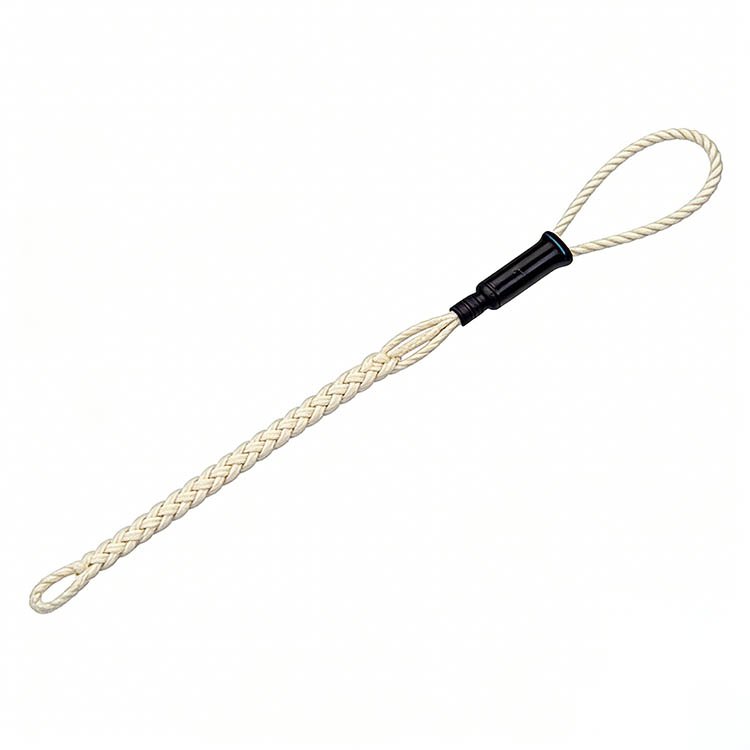

These grips are woven of high strength, non-conductive nylon
Are available for pulling single cable or cable bundles.
Their braided weave design adds strength and positive holding power
Can be used in essentially all grip configurations
Easy installation
Wide range grips are recommended for use in wiring of fiber cable

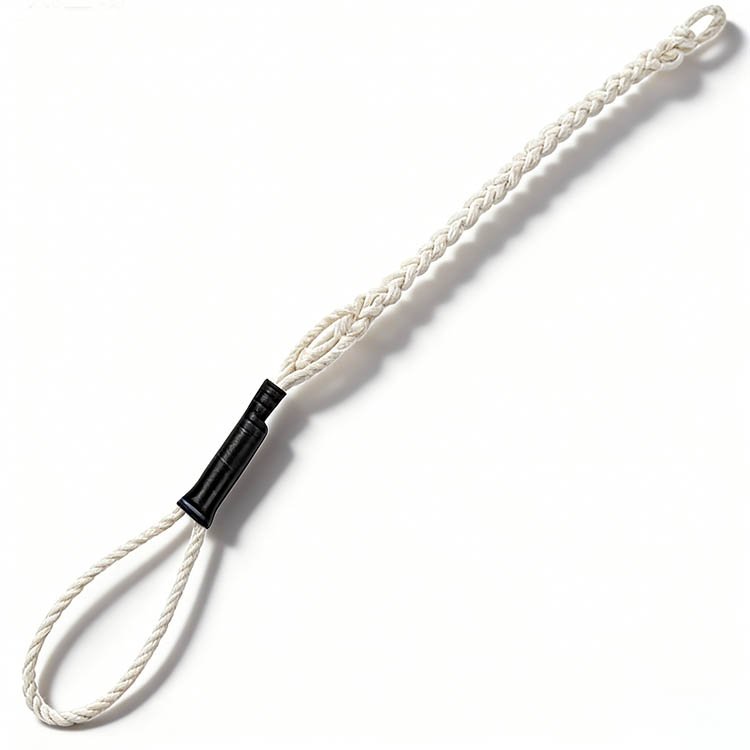

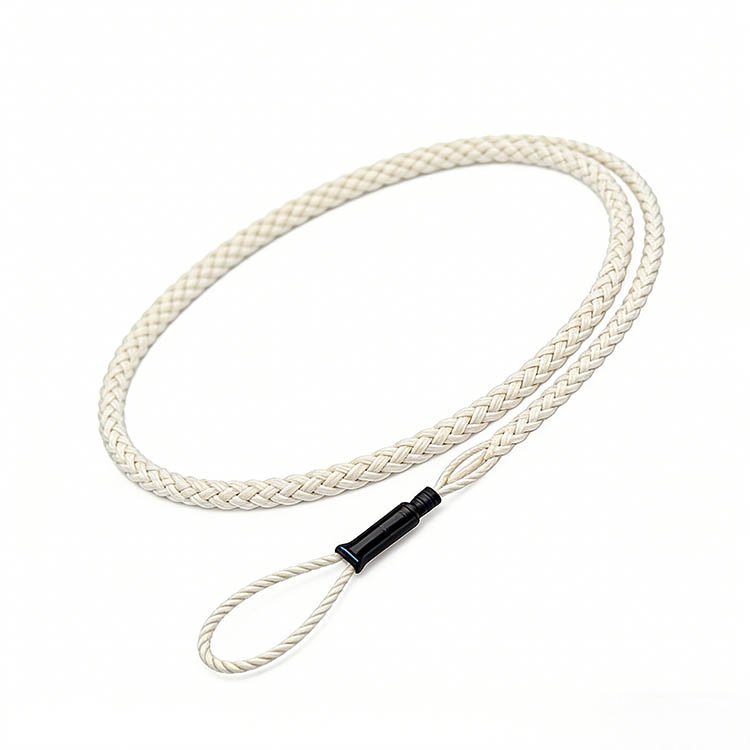

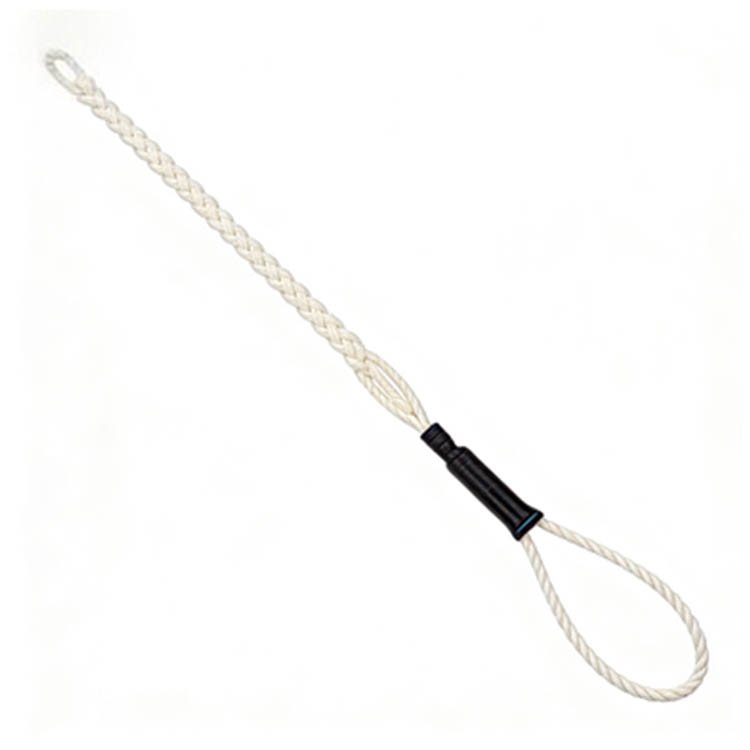

Closed Mesh, Single Eye
Part Number Cable Diameter Eye Length Mesh Length Approx Break Strength
NO38P 3/8″ (10.1-11.9mm) 6″ (152.4mm) 6″ (152.4mm) 40 lbs.
NO12P 1/2″ (11.4-16.0mm) 7″ (177.8mm) 10″ (254.0mm) 60 lbs.
NO58P 5/8″ (21.3-22.6mm) 12″ (304.8mm) 10″ (254.0mm) 100 lbs.
NO78P 7/8″ (27.4-30.4mm) 13″ (330.2mm) 17″ (431.8mm) 100 lbs.
NO114P 1-1/4″ (39.1-42.4mm) 10″ (254.0mm) 24″ (609.6mm) 150 lbs.
NO158P 1-5/8″ (50.3-51.8mm) 12″ (304.8mm) 27″ (685.8mm) 200 lbs.
NO214P 2-1/4″ (59.7-59.9mm) 20″ (508.0mm) 27″ (685.8mm) 250 lbs.

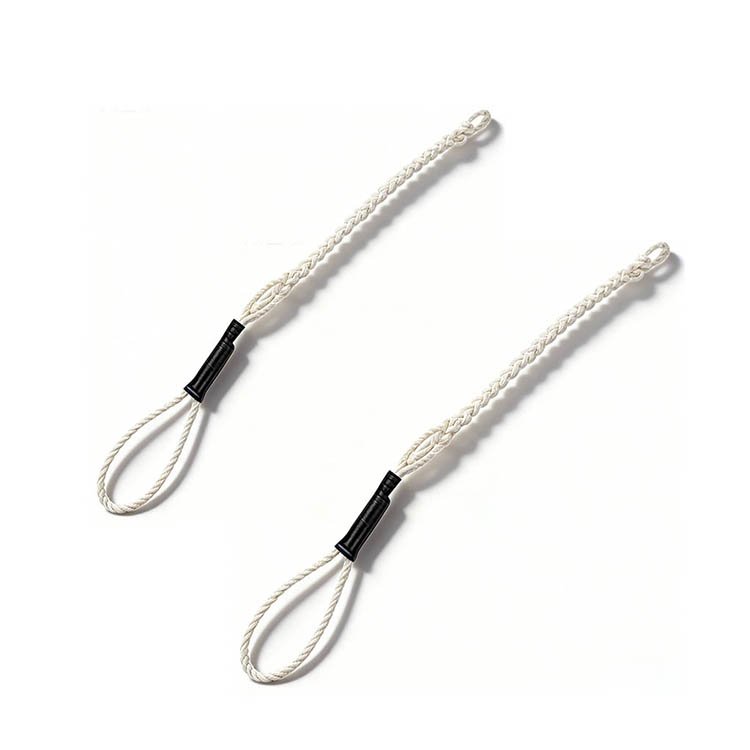

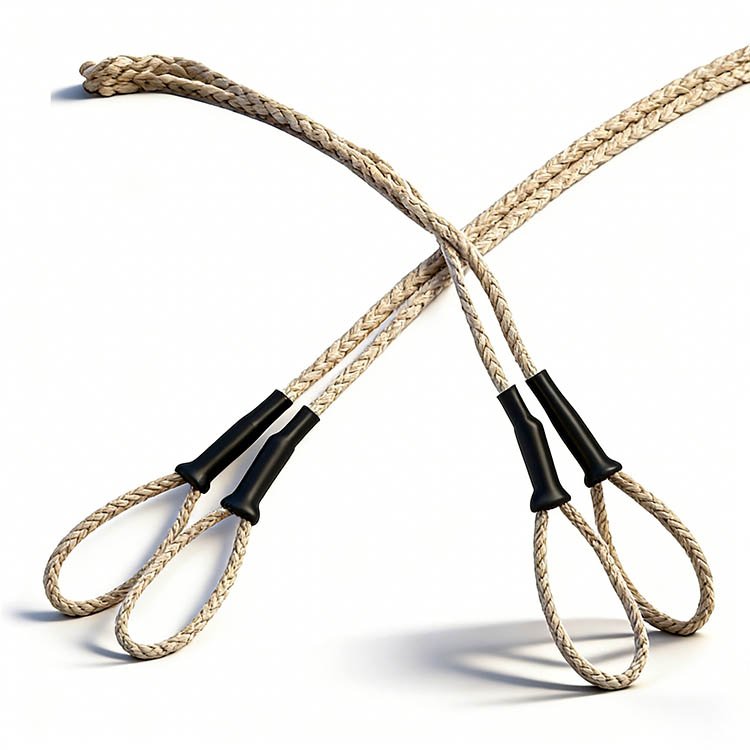

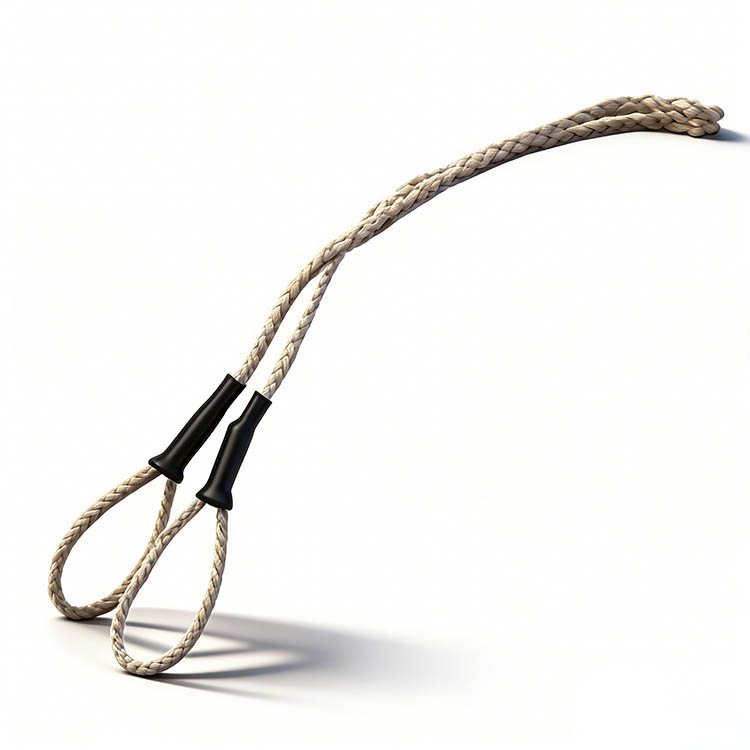

Closed Mesh, Double Eye
Part Number Cable Diameter Eye Length Mesh Length Approx Break Strength
ND38P 3/8″ (10.1-11.9mm) 6″ (152.4mm) 6″ (152.4mm) 40 lbs.
ND12P 1/2″ (11.4-16.0mm) 7″ (177.8mm) 10″ (254.0mm) 60 lbs.
ND58P 5/8″ (12.13-22.6mm) 12″ (304.8mm) 10″ (254.0mm) 100 lbs.
ND78P 7/8″ (27.4-30.4mm) 13″ (330.2mm) 17″ (431.8mm) 100 lbs.
ND114P 1-1/4″ (39.1-42.4mm) 10″ (254.0mm) 24″ (609.6mm) 150 lbs.
ND158P 1-5/8″ (50.3-51.8mm) 12″ (304.8mm) 27″ (685.8mm) 200 lbs.
ND214P 2-1/4″ (59.7-59.9mm) 20″ (508.0mm) 27″ (685.8mm) 250 lbs.
