Durable Braided Rigging Rope with Adjustable Loops
Sturdy braided rope with adjustable loops for secure lifting, rigging, or safety. Durable construction supports heavy-duty tasks, ideal for excavator attachments.
These grips are woven of high strength, non-conductive nylon.
Are available for pulling single cable or cable bundles.
Their braided weave design adds strength and positive holding power.
Can be used in essentially all grip configurations.
Easy installation.
Includes Nylon wire line.

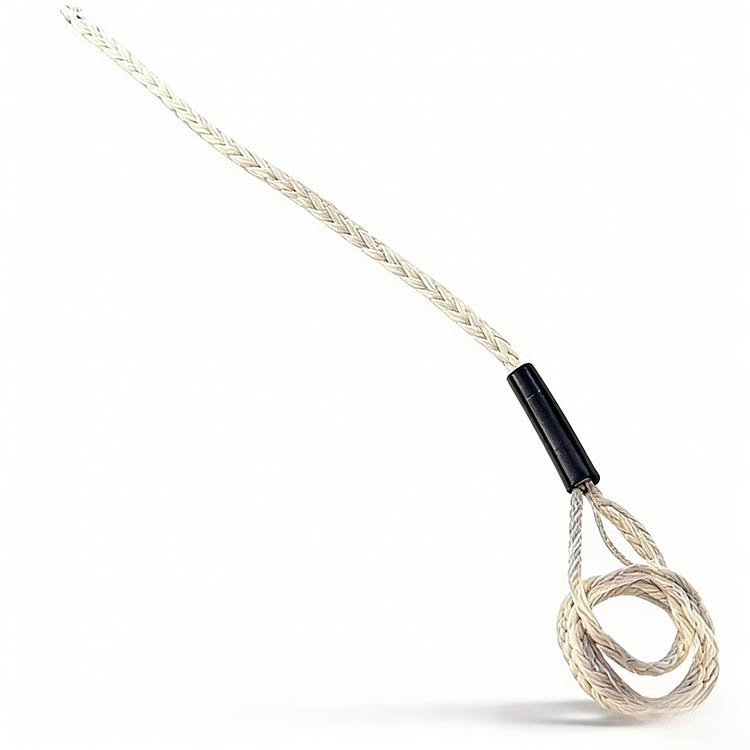

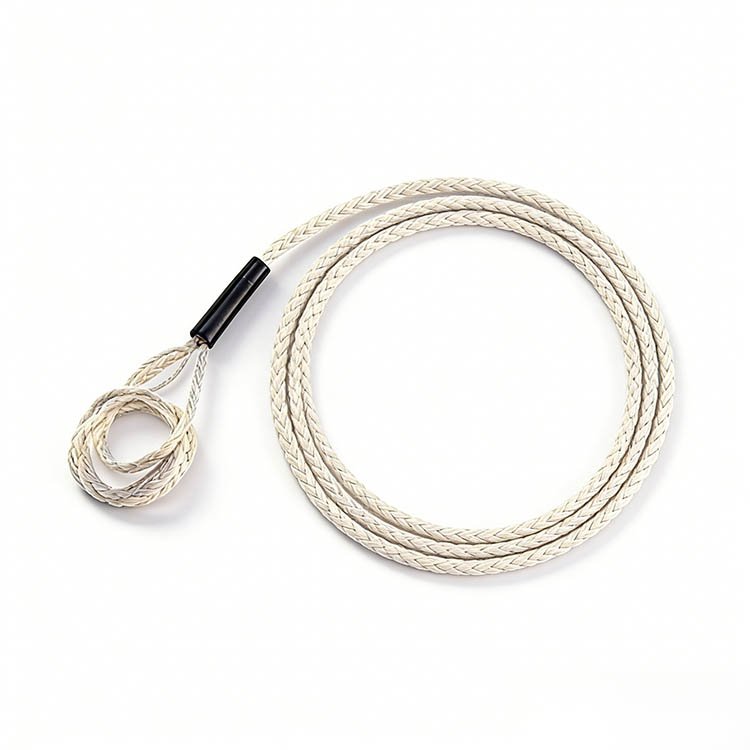

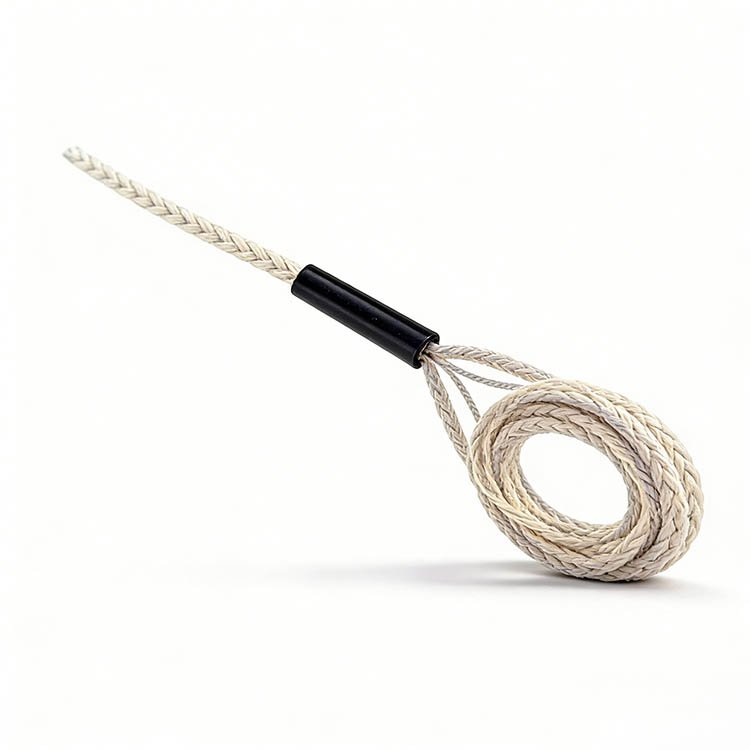

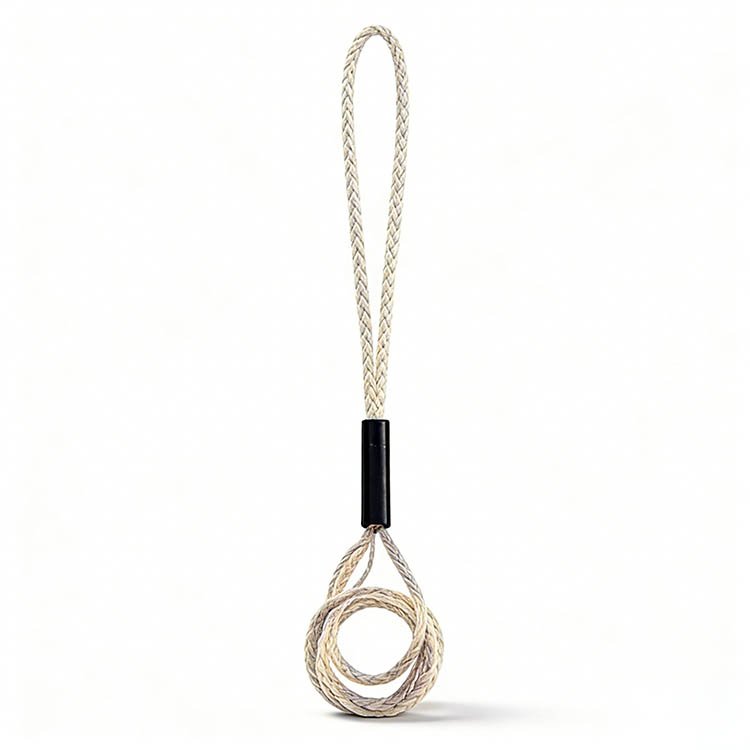

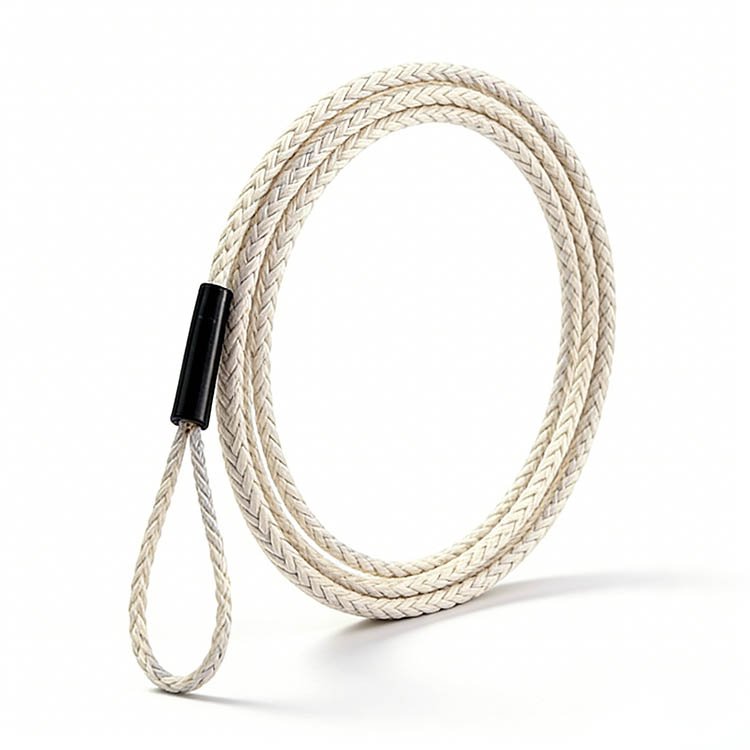

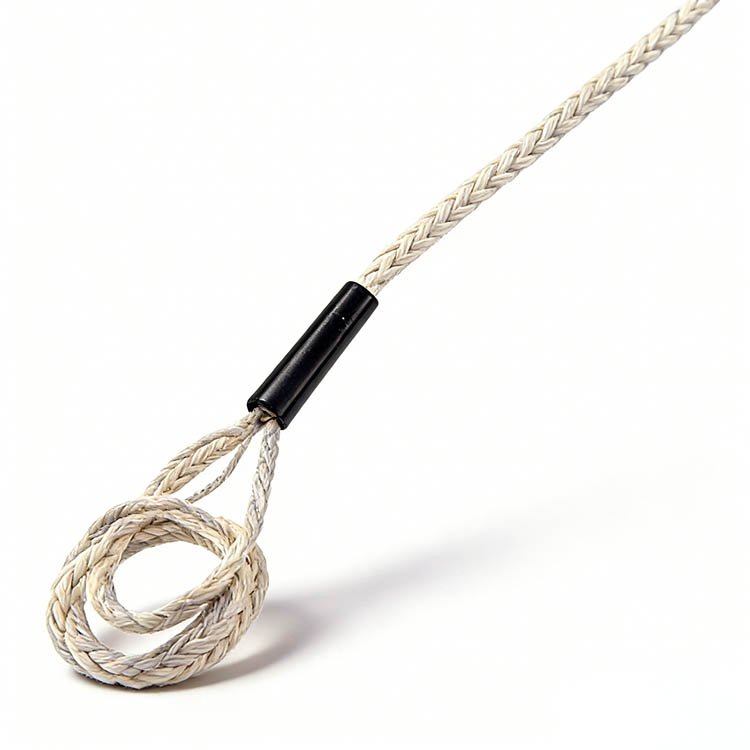

Split Lace, Single Eye
Part Number Cable Diameter Eye Length Mesh Length Approx Break Strength
NO38O 3/8″ (10.1-11.9mm) 6″ (152.4mm) 6″ (152.4mm) 40 lbs.
NO12O 1/2″ (11.4-16.0mm) 7″ (177.8mm) 10″ (254.0mm) 60 lbs.
NO58O 5/8″ (21.3-22.6mm) 8″ (203.2mm) 18″ (457.2mm) 100 lbs.
NO78O 7/8″ (27.4-30.4mm) 13″ (330.2mm) 17″ (431.8mm) 100 lbs.
NO114O 1-1/4″ (39.1-42.4mm) 8″ (203.2mm) 25″ (635.0mm) 150 lbs.
NO158O 1-5/8″ (50.3-51.8mm) 12″ (304.8mm) 27″ (685.8mm) 200 lbs.
NO214O 2-1/4″ (59.7-59.9mm) 14″ (355.6mm) 26″ (660.4mm) 250 lbs.

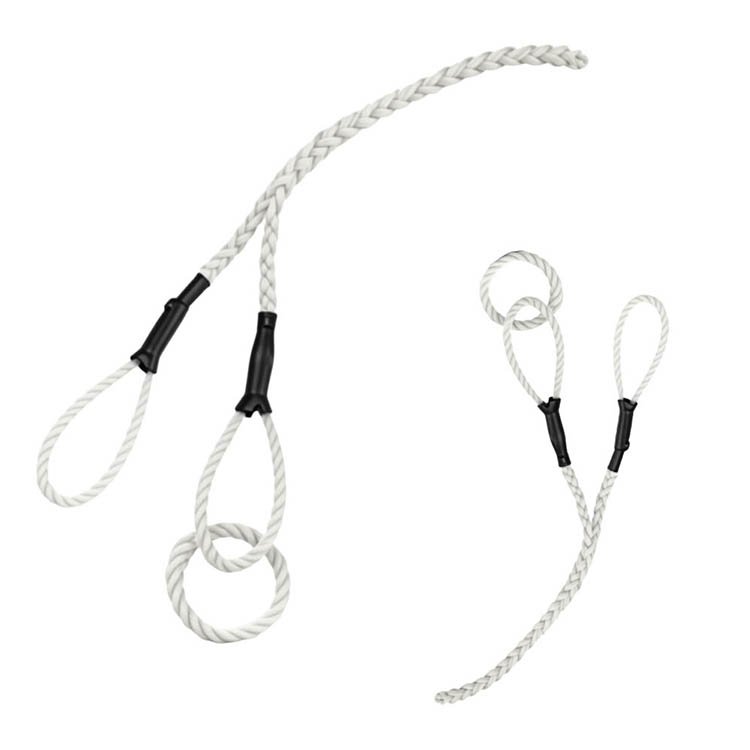

Split Lace, Double Eye
Part Number Cable Diameter Eye Length Mesh Length Approx Break Strength
ND38O 3/8”(10.1-11.9mm) 6”(152.4mm) 6”(152.4mm) 40 lbs.
ND12O 1/2”(11.4-16.0mm) 7”(177.8mm) 10”(254.0mm) 60 lbs.
ND58O 5/8”(21.3-22.6mm) 8”(203.2mm) 18”(457.2mm) 100 lbs.
ND78O 7/8”(27.4-30.4mm) 13”(330.2mm) 17”(431.8mm) 100 lbs.
ND114O 1-1/4”(39.1-42.4mm) 8”(203.2mm) 25”(635.0mm) 150 lbs.
ND158O 1-5/8”(50.3-51.8mm) 12”(304.8mm) 27”(685.8mm) 200 lbs.
ND214O 2-1/4”(59.7-59.9mm) 14”(355.6mm) 26”(660.4mm) 250 lbs.
