Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary
Designed for loads up to 600 lbs and vertical runs of no more than 100 ft.

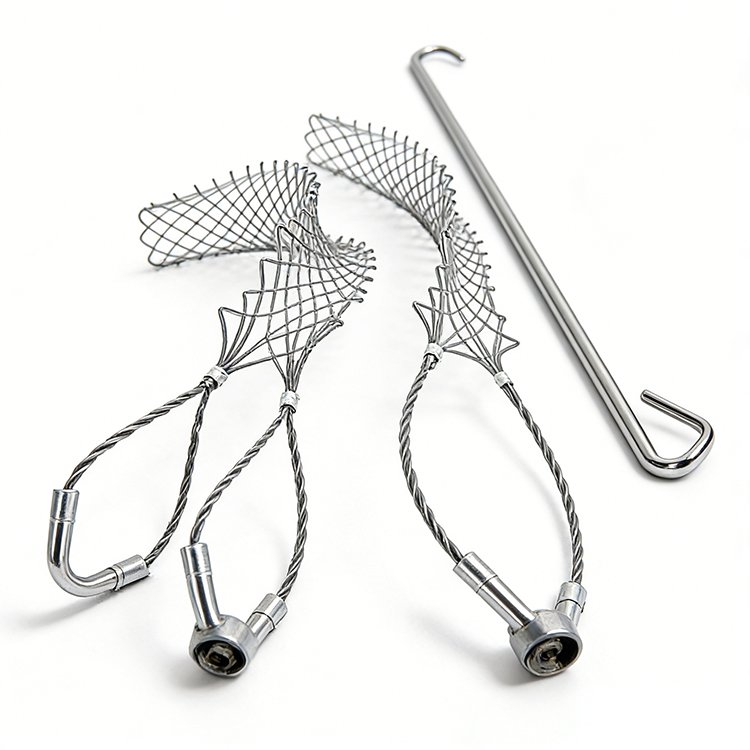

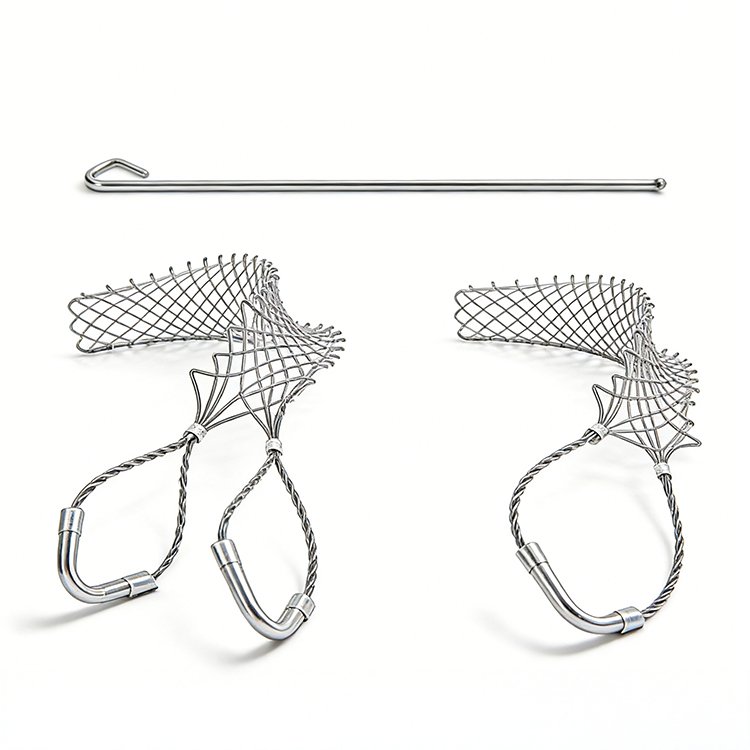

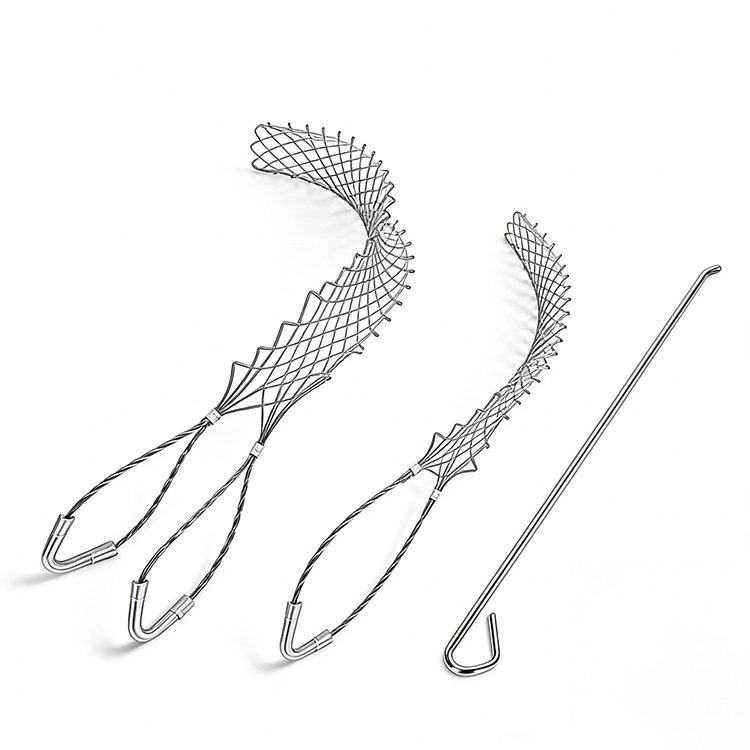

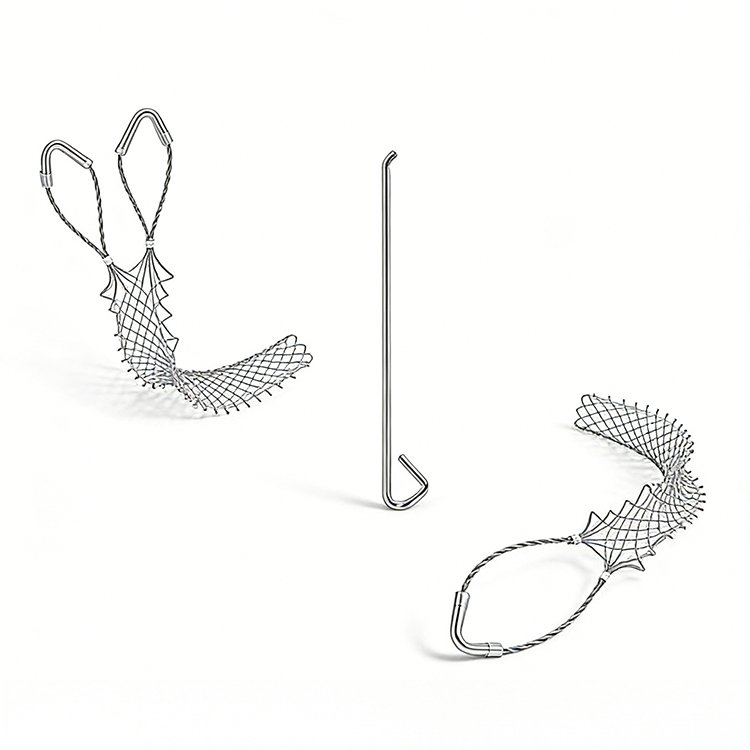

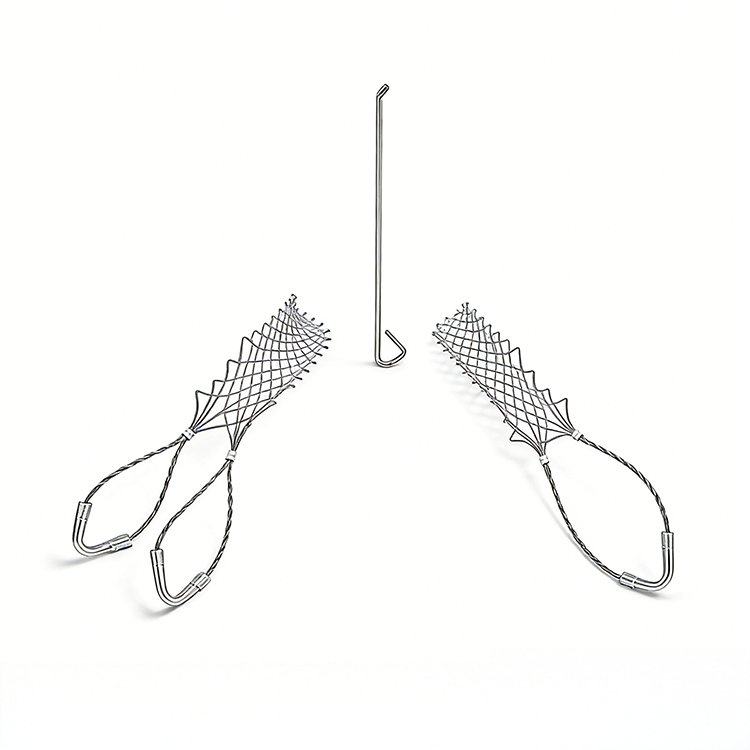

Available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods and tubing

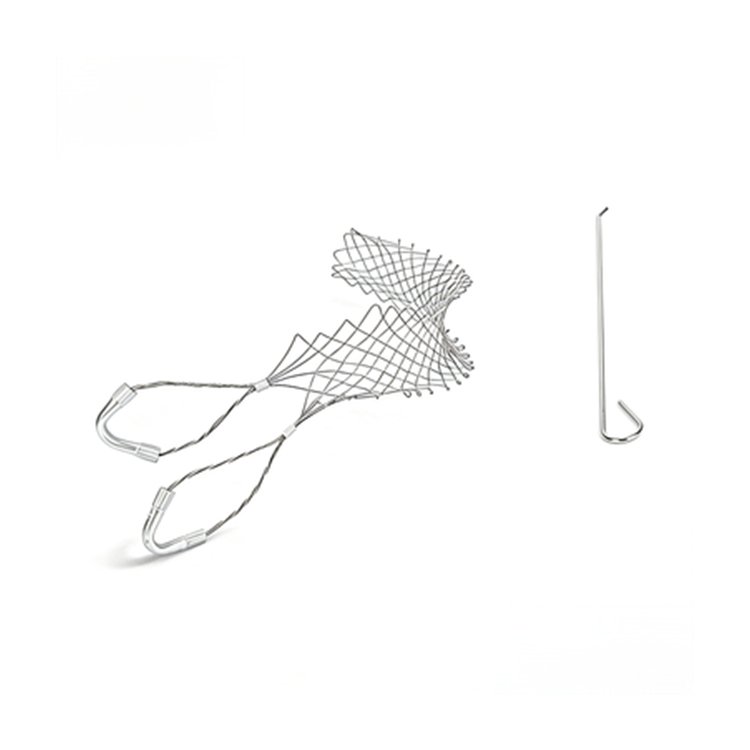

Single eye for use when cable is vertical and for applications cable bends
Double eye for use when cable is vertical and extends without bending

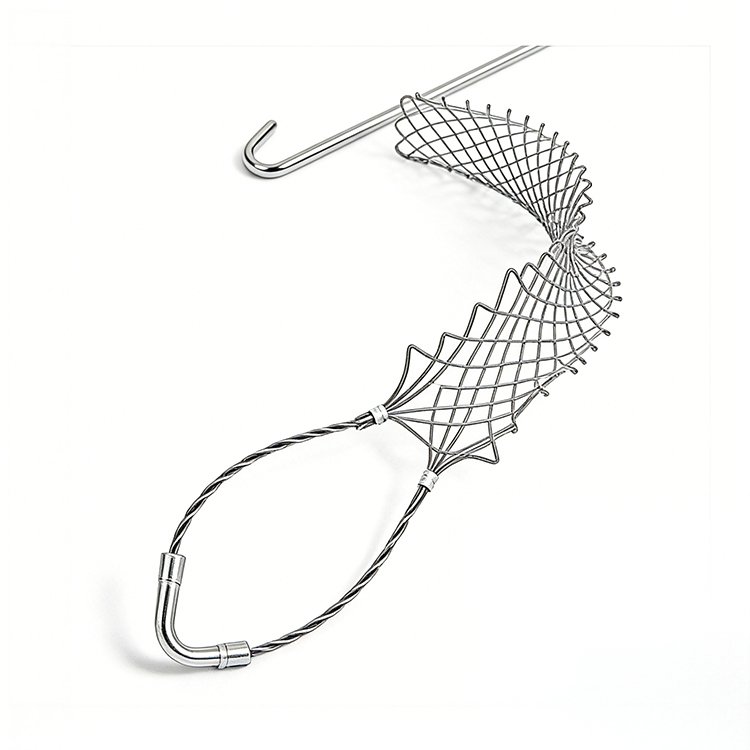

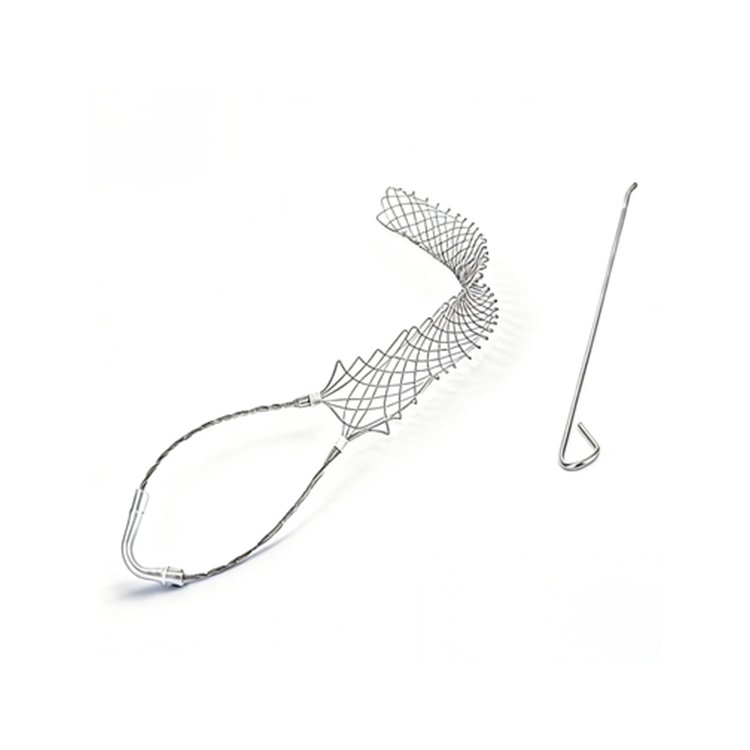

Split Rod, Single Eye
Part Number Cable Diameter Bale Length Mesh Length Approx Break Strength
SG1215L 0.50-0.61″(12.7-15.5mm) 7″(177.8mm) 11″(279.4mm) 770 lbs.
SG1519L 0.62-0.74″(15.7-18.8mm) 8″(203.2mm) 11″(279.4mm) 960 lbs.
SG1925L 0.75-0.99″(19.1-25.1mm) 8″(203.2mm) 14″(355.6mm) 1320 lbs.
SG2532L 1.00-1.24″(25.4-31.5mm) 9″(228.6mm) 15″(381.0mm) 1680 lbs.
SG3238L 1.25-1.49″(31.8-37.8mm) 10″(254.0mm) 16″(406.4mm) 1680 lbs.
SG3844L 1.50-1.74″(38.1-44.2mm) 12″(304.8mm) 18″(457.2mm) 1680 lbs.
SG4450L 1.75-1.99″(44.5-50.5mm) 14″(355.6mm) 20″(508.0mm) 2640 lbs.
SG5063L 2.00-2.49″(50.8-63.2mm) 16″(406.4mm) 22″(558.8mm) 3760 lbs.
SG6375L 2.50-2.99″(63.5-75.9mm) 18″(457.2mm) 24″(609.6mm) 3760 lbs.
SG7688L 3.00-3.49″(76.2-88.6mm) 21″(533.4mm) 26″(660.4mm) 5040 lbs.
SG8899L 3.50-3.99″(88.9-101.3mm) 24″(609.6mm) 28″(711.2mm) 5040 lbs.
Split Rod, Double Eye
Part Number Cable Diameter Bale Length Mesh Length Approx Break Strength
DSG1215L 0.50-0.61″(12.7-15.5mm) 4″(101.6mm) 11″(279.4mm) 770 lbs.
DSG1519L 0.62-0.74″(15.7-18.8mm) 4″(101.6mm) 11″(279.4mm) 1150 lbs.
DSG1925L 0.75-0.99″(19.1-25.1mm) 4″(101.6mm) 14″(355.6mm) 1320 lbs.
DSG2532L 1.00-1.24″(25.4-31.5mm) 5″(127.0mm) 15″(381.0mm) 1920 lbs.
DSG3238L 1.25-1.49″(31.8-37.8mm) 5″(127.0mm) 16″(406.4mm) 1920 lbs.
DSG3844L 1.50-1.74″(38.1-44.2mm) 6″(152.4mm) 18″(457.2mm) 1920 lbs.
DSG4450L 1.75-1.99″(44.5-50.5mm) 6″(152.4mm) 20″(508.0mm) 3150 lbs.
DSG5063L 2.00-2.49″(50.8-63.2mm) 6″(152.4mm) 22″(558.8mm) 3360 lbs.
DSG6375L 2.50-2.99″(63.5-75.9mm) 6″(152.4mm) 24″(609.6mm) 3360 lbs.
DSG7688L 3.00-3.49″(76.2-88.6mm) 8″(203.2mm) 26″(660.4mm) 5280 lbs.
DSG8899L 3.50-3.99″(88.9-101.3mm) 8″(203.2mm) 28″(711.2mm) 5280 lbs.
