Durable Excavator Wire Spools for Heavy Duty
Reliable high-tensile wire spools for excavators, built to withstand heavy machinery demands, ensuring long-lasting perfor
Product Features

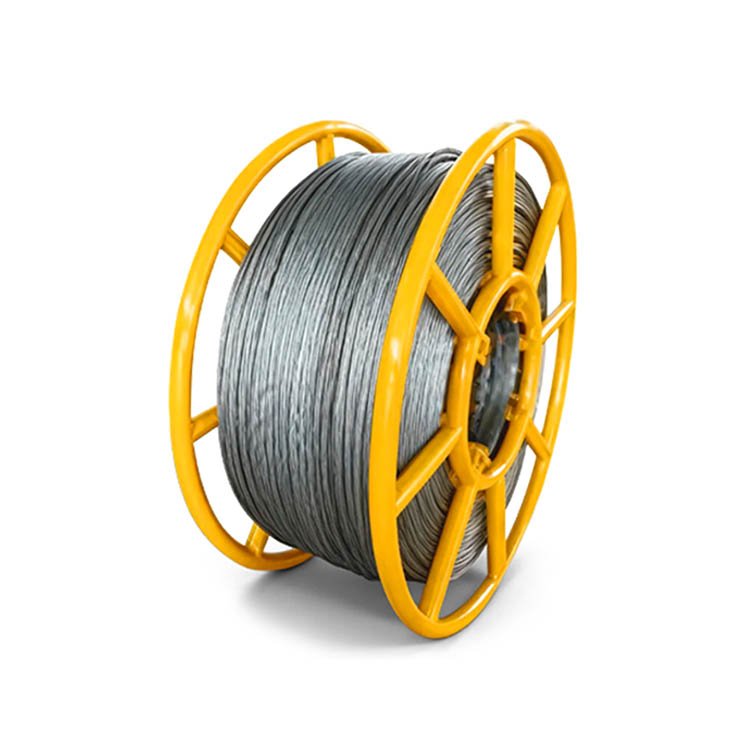

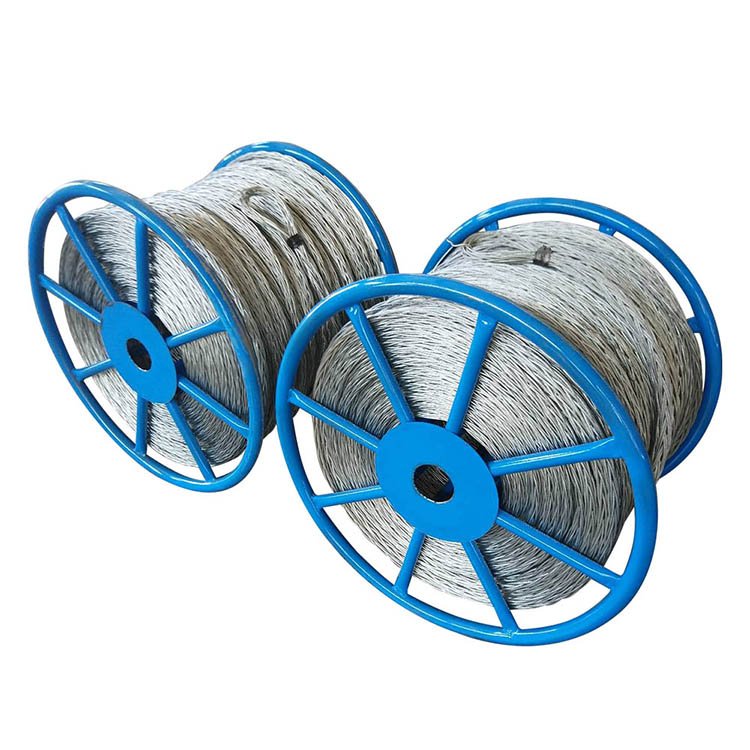

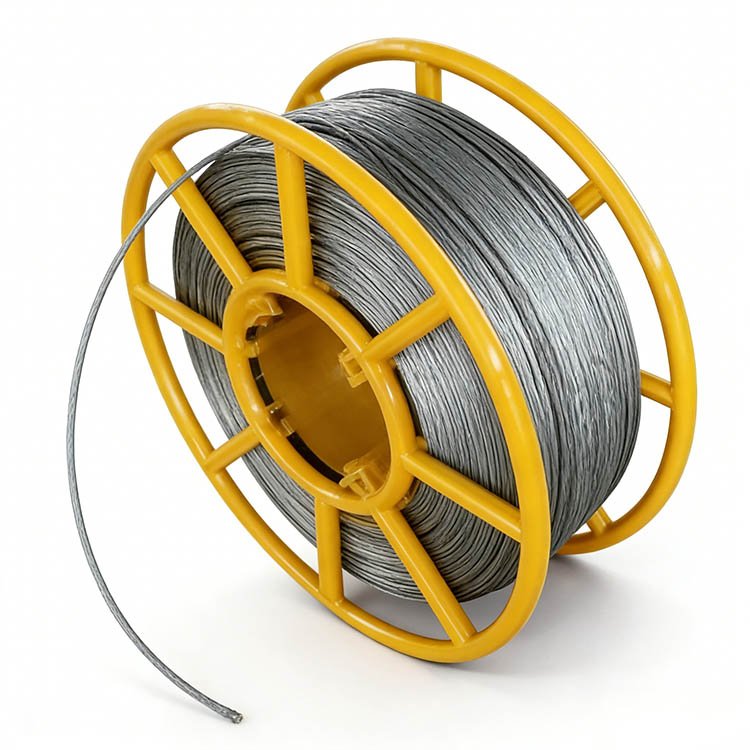

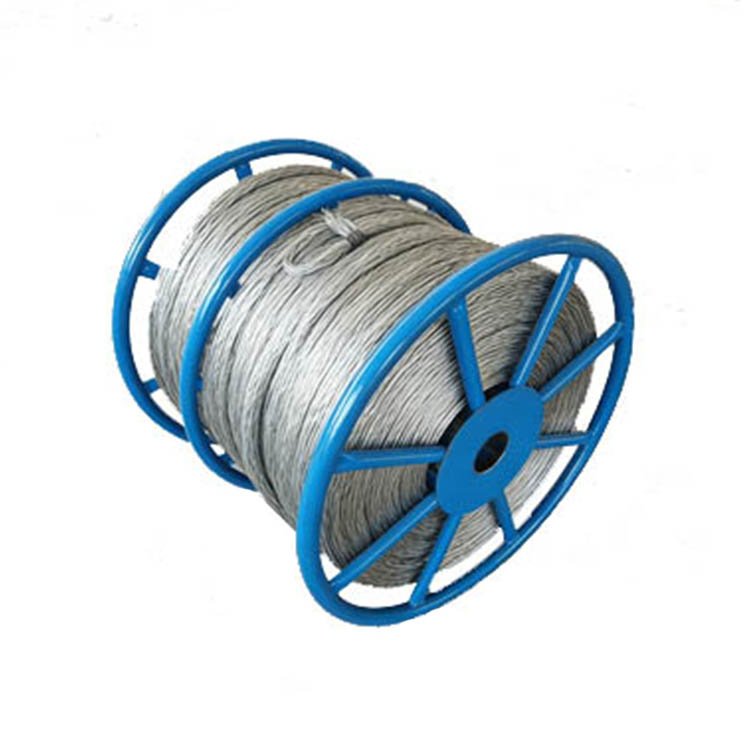

It is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.
Main Technical Parameters
Model Nominal Dia (mm) Single bundle Dia (mm) Ref Weight (kg/100m) Breaking Force(KN) Standard Length (m)
HL9-12×19W 9 2.0 26.69 55.0 1000
HL11-12×19W 11 2.5 45.73 80.5 1000
HL13-12×19W 13 3.0 57.96 120.0 1000
HL16-12×19W 16 3.5 82.80 158.0 1000
HL18-12×19W 18 4.0 103.82 210.0 1000
HL20-12×T25Fi 20 4.5 129.62 250.0 800
HL22-12×T25Fi 22 4.8 147.88 320.0 800
HL24-12×T25Fi 24 5.0-5.2 160.23 360.0 800
HL26-12×T25Fi 26 5.5-5.6 193.71 420.0 700
HL28-12×T29Fi 28 6.0 230.50 480.0 500
HL30-12×T29Fi 30 6.5 272.04 540.0 500
HL20-18×19W 20 4.0 159.80 300.0 800
HL22-18×T25Fi 22 4.2 189.80 389.0 800
HL24-18×T25Fi 24 4.8 216.20 440.0 800
HL26-18×T25Fi 26 5.2 276.80 480.0 700
HL28-18×T29Fi 28 5.4 301.20 580.0 500
HL30-18×T29Fi 30 5.6 361.60 658.0 500
HL32-18×T29Fi 32 6.0 423.00 780.0 500
