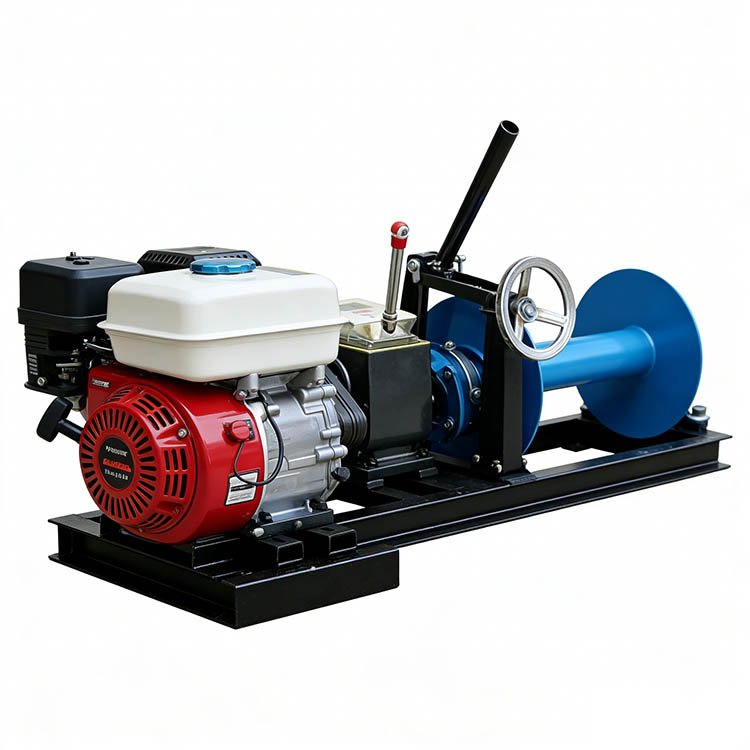

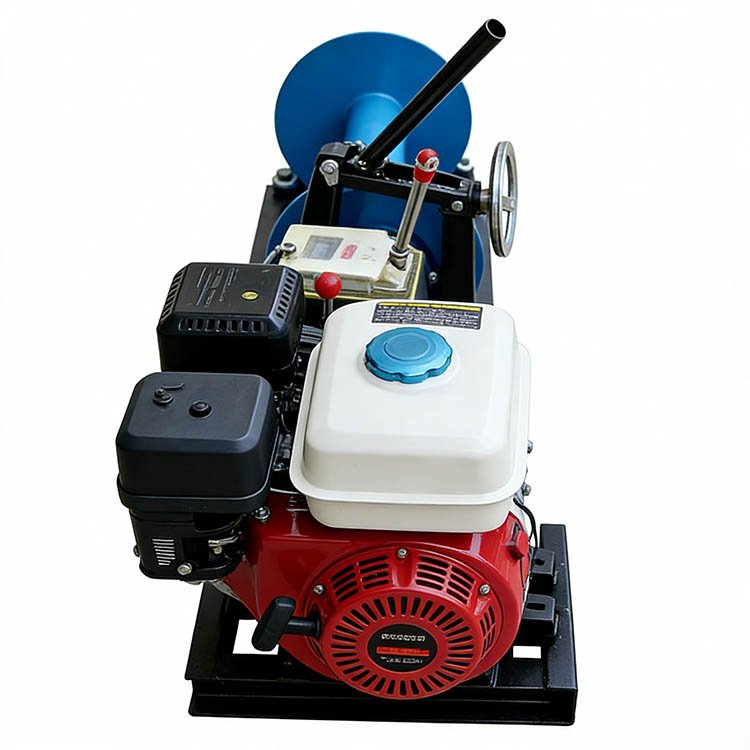

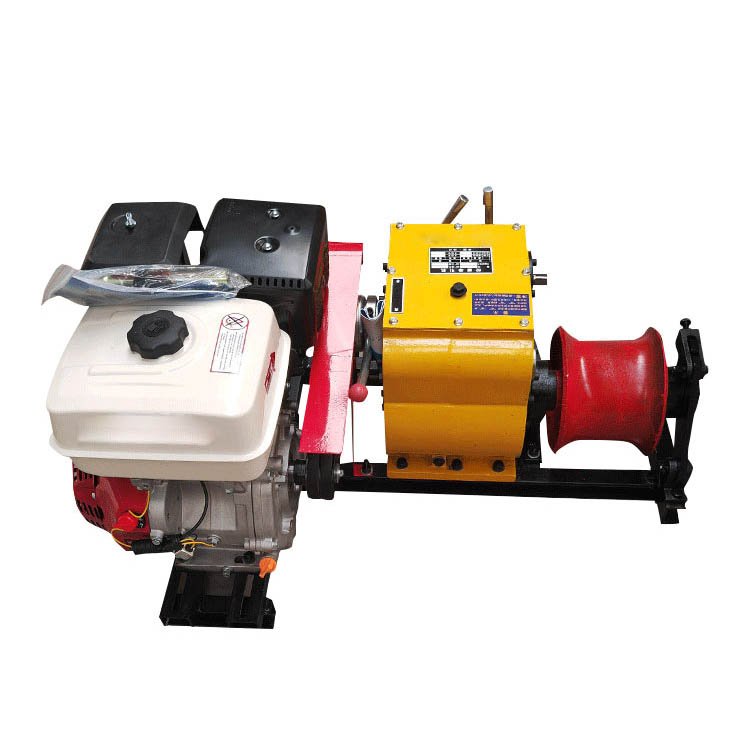

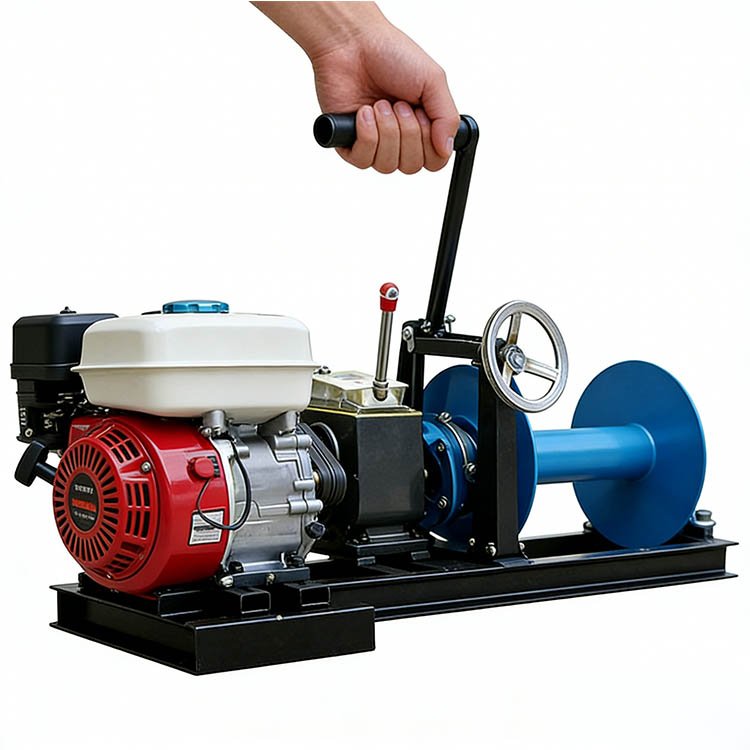

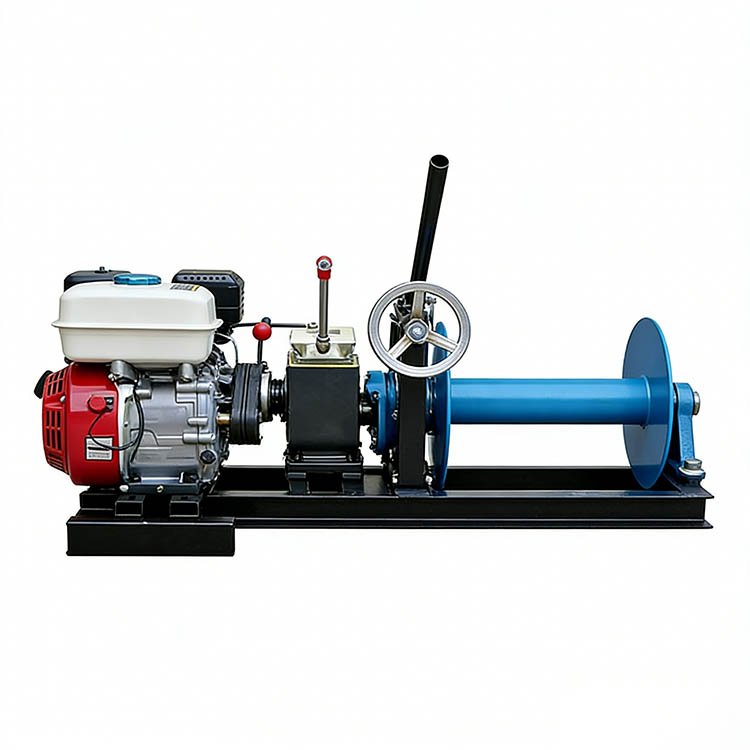

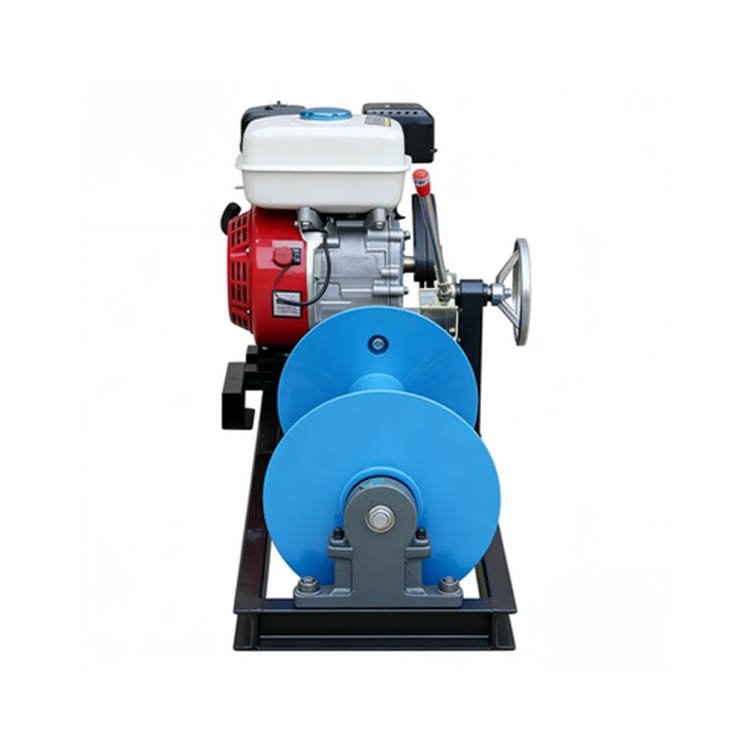

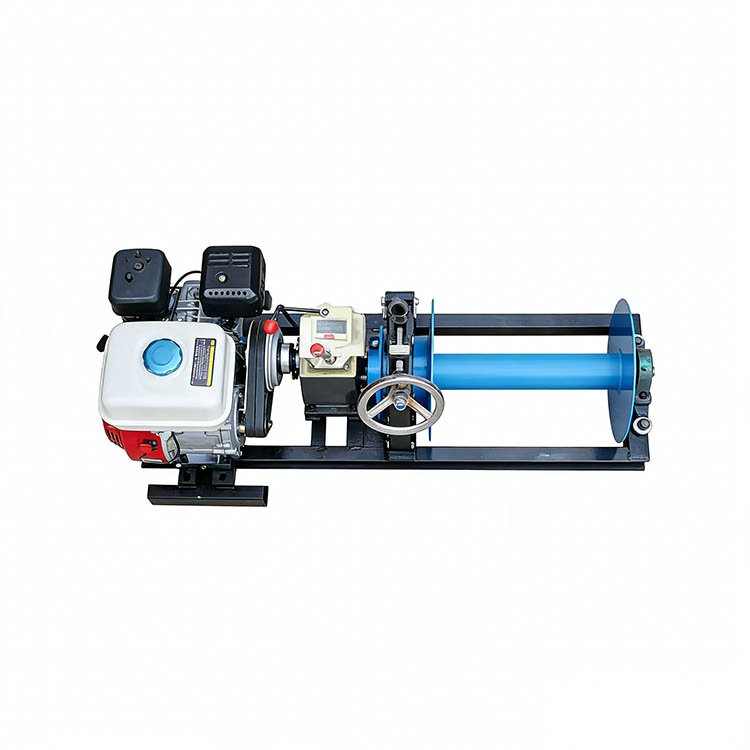

Heavy-Duty Gasoline-Powered Cable Winch
Heavy-duty gasoline-powered winch delivers reliable cable pulling power for construction, utility, and industrial applications. Durable design ensures long-lasting performance.
PRODUCT FEATURES
This is a winch, which belongs to light engineering machinery. Its core components consist of an engine assembly, a drum assembly, a gearbox (with a gear shift lever, a clutch lever, and a brake), and a thickened base. It is suitable for scenarios such as electric power construction (cable laying, tower erection, and wire tensioning), small – scale hoisting, cable traction, and mountain timber transportation, and can operate efficiently in complex terrains.
MAIN TECHNICAL PARAMETERS
Product Name 1-ton Gasoline Winch 2-ton Gasoline Winch 1-ton Diesel Winch 2-ton Diesel Winch
Pull Limit 500 kg 850kg 500kg 850kg
Number of Forward Gears 3 3 3 3
Number of Neutral Gears 1 1 1 1
Number of Reverse Gears 1 1 1 1
1st Gear Speed 12m/min 12m/min 12m/min 12m/min
2nd Gear Speed 24m/min 24m/min 24m/min 24m/min
3rd Gear Speed 50m/min 50m/min 50m/min 50m/min
Reverse Gear Speed 12m/min 12m/min 12m/min 12m/min
1st Gear Pull Force 500kg 850kg 500kg 850kg
2nd Gear Pull Force 300kg 500kg 300kg 500kg
3rd Gear Pull Force 150kg 200kg 150kg 200kg
Reverse Gear Pull Force 500kg 850kg 500kg 850kg
Neutral Gear Status Can coast Can coast Can coast Can coast
Drum Capacity (10mm Wire Rope) 200m 200m 200m 200m
Drum Capacity (8mm Wire Rope) 300m 300m 300m 300m
Drum Capacity (6mm Wire Rope) 500m 500m 500m 500m
Machine Weight 64 kg 76kg 87kg 102kg
Machine Dimensions 1100*600*500 mm 1200*600*500mm 1100*600*500mm 1200*600*500mm
Shifting Method Clutch-assisted shifting Clutch-assisted shifting Clutch-assisted shifting Clutch-assisted shifting
