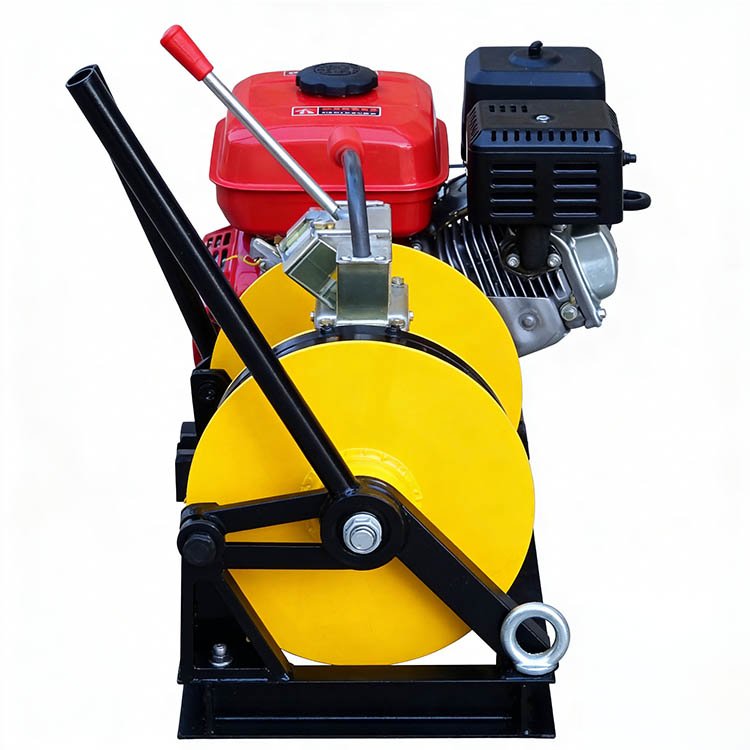

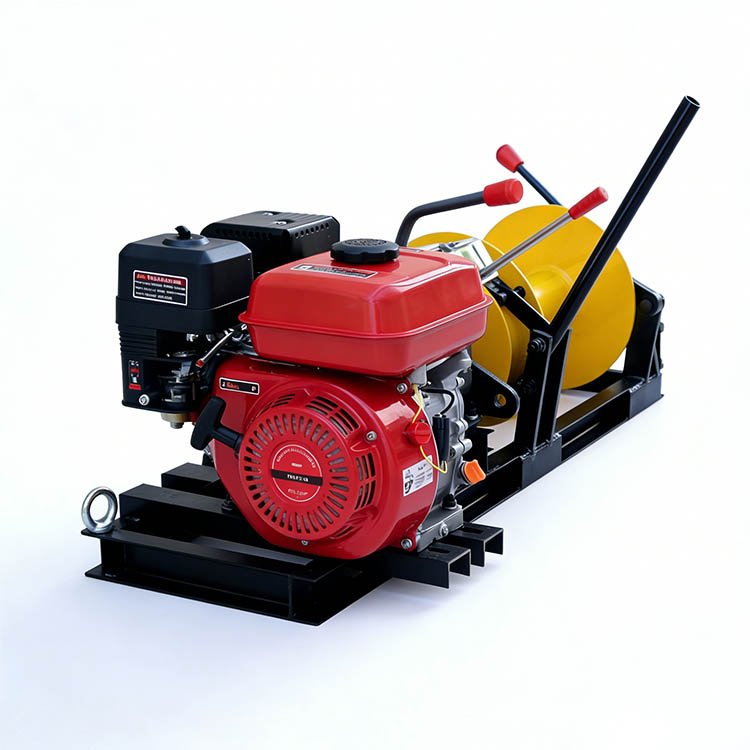

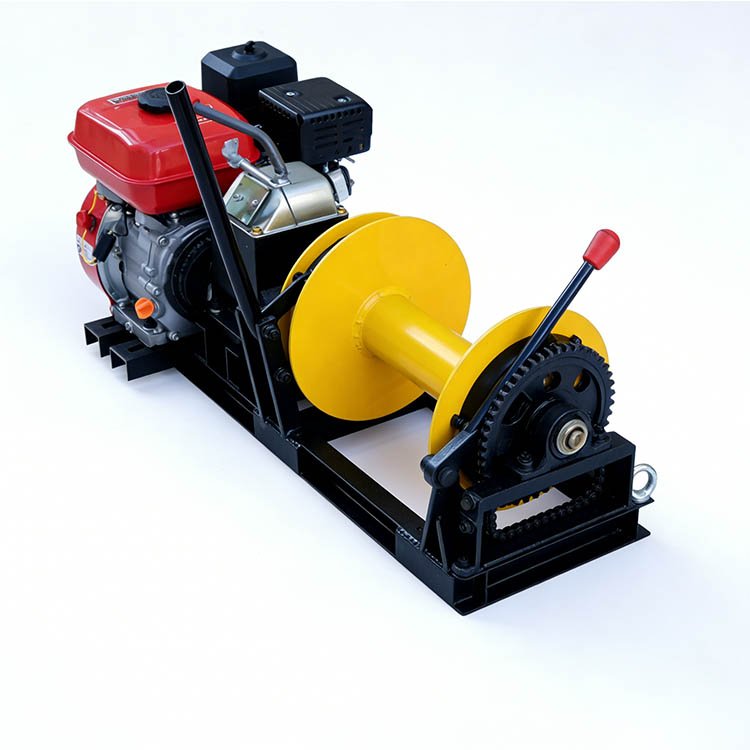

Heavy-Duty Gasoline Winch for Construction
Robust gasoline-powered winch delivers reliable power for construction, utility, and heavy-duty pulling/lifting. Easy operation, durable design for demanding tasks.
The winch groove is used to directly connect the wire rope to the traction slot, with gasoline or diesel engine, motor as power,Box speed to achieve the required speed, the machine is located in the steel structure, stable and easy to move. Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up. Apply to use in the wild non-transformer station, it will be convenient and agility.
Main Technical Parameters
Model Rotation direction Gear Rotational speed(RPM) Traction Speed(m/min) Tractive force(T) Power Outline Size (mm) Weight (kg)
KL-30 Gasoline engine forwarder slow 9.0 11.0 3.0 6HP 840*450*500 82
fast 16.0 6.6 1.8
reversal reverse 7.5 3.3 No lifting

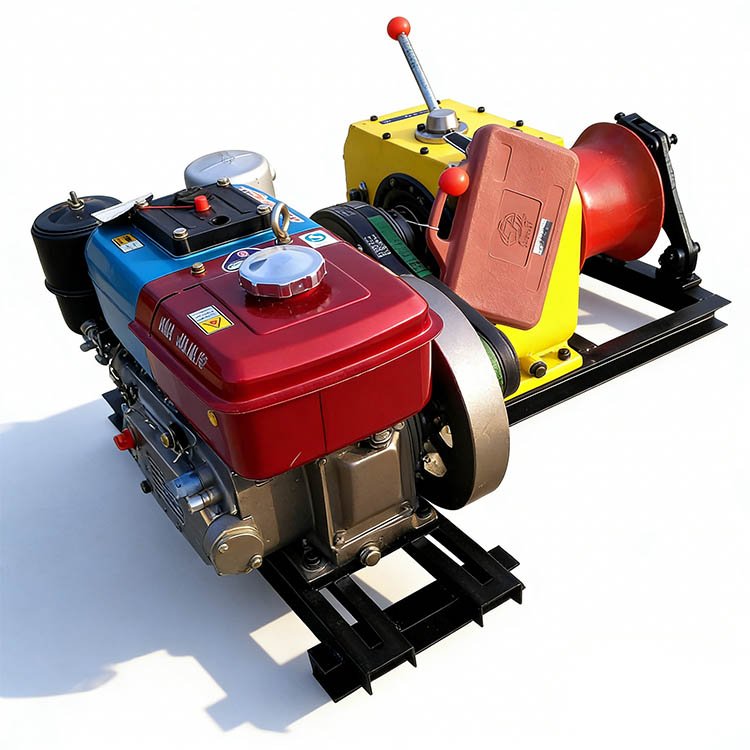

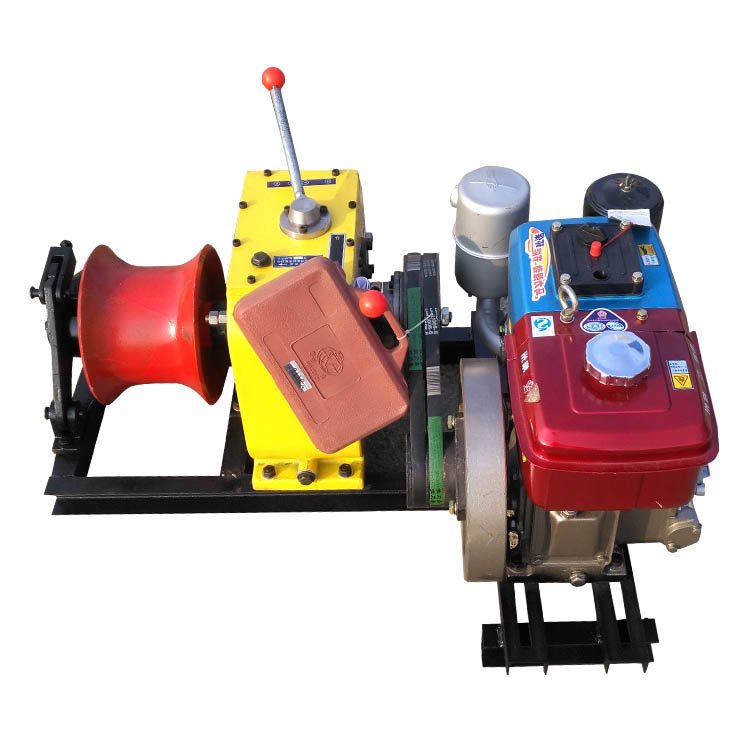

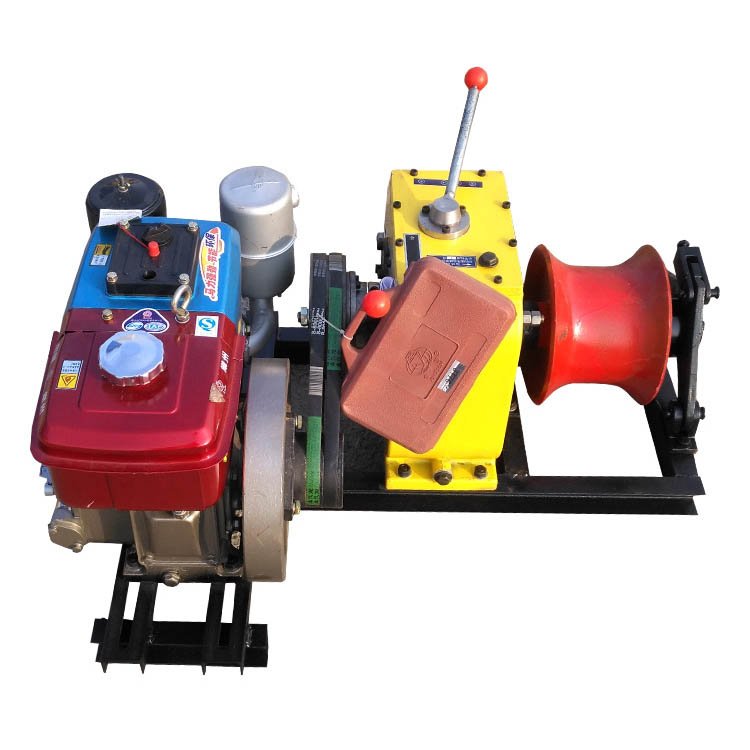

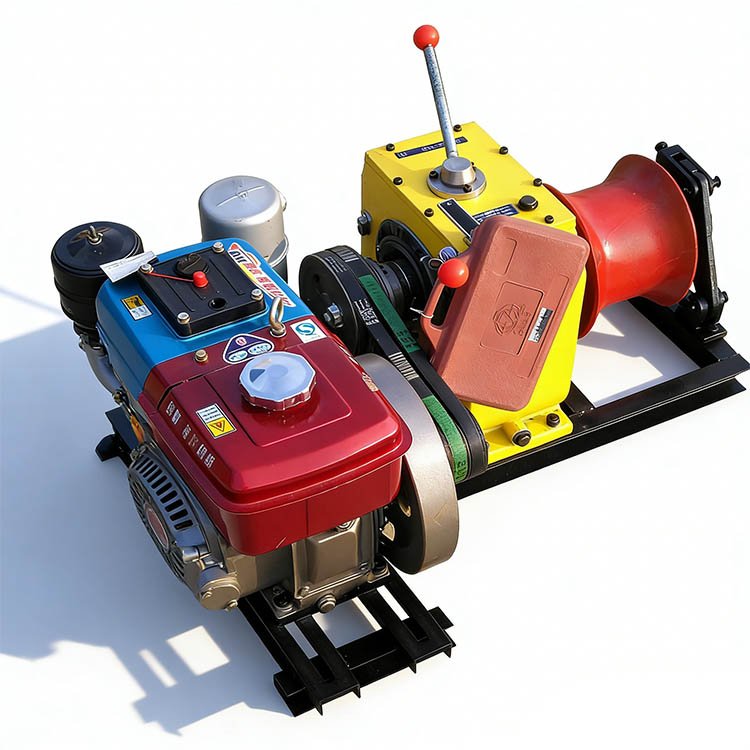

KL-30 170F Diesel engine forwarder slow 11.5 5.0 3.0 4HP 840*600*500 108
fast 21.0 9.0 1.8
reversal reverse 10.0 4.5 No lifting
KL-30 Electric Motor forwarder slow 8.5 4.0 3.0 3KW 770*600*460 108
fast 10.5 6.5 1.8
reversal reverse 7.0 3.0 No lifting
