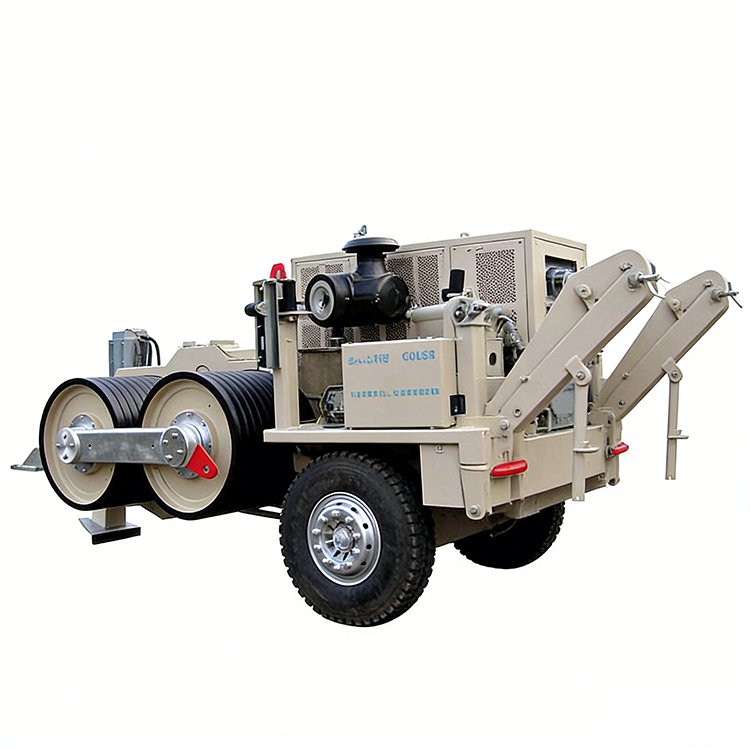

Heavy-Duty Hydraulic Cable Puller Machine
Robust hydraulic cable puller for efficient power line construction. Reliable, wheeled for easy transport, built for heavy-duty cable pulling tasks.
Product Features
This SA-YQ420 Hydraulic Puller possesses infinitely variable pulling speed and traction force. The pull in the rope can be visually read on the line pull gauge. Additionally, our product has the overload automatic protection function. Users can set the maximum traction force in advance.
Essential Parameters
Model SA-YQ400 Hydraulic Puller
Maximum Traction Force (kN) 400
Continuous Tractive Effort (kN) 350
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ960
Number of Bullwheel Grooves 11
Maximum Diameter of Suitable Steel Rope (mm) Φ45
Maximum Through Connector Diameter (mm) Φ80
Engine Power /Speed (kW/rpm) 402/2100
Dimensions(mm) 6100x2600x2800
Weight (kg) 14800
Main Components
Engine Cummins (USA) water-cooled diesel engine
Main Variable Displacement Pump, Main Motor Rexroth(BOSCH)
Reducer RR (ltalian)
Main Hydraulic Valves Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument WIKA
Suitable Drum Model GSP1900 (ltem number: 07125E)
