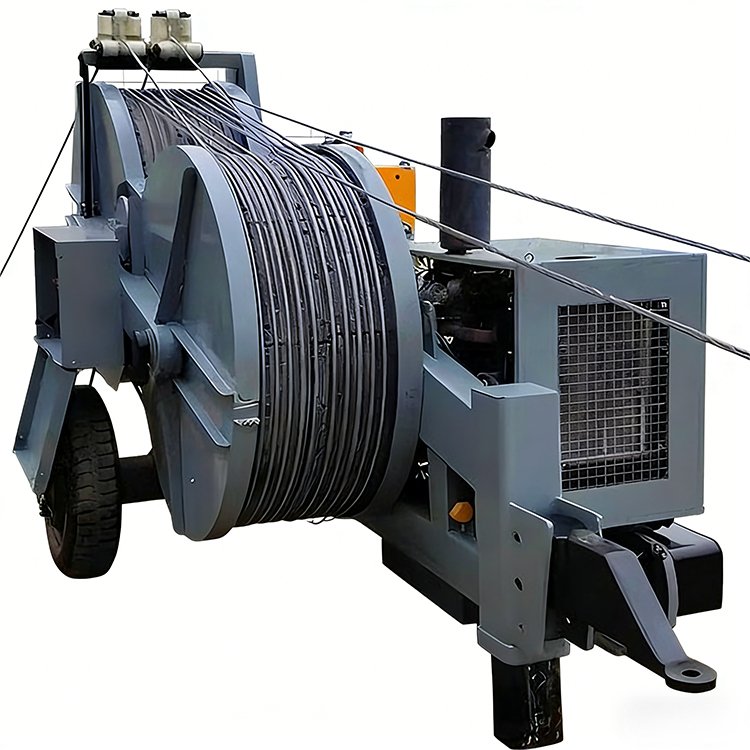

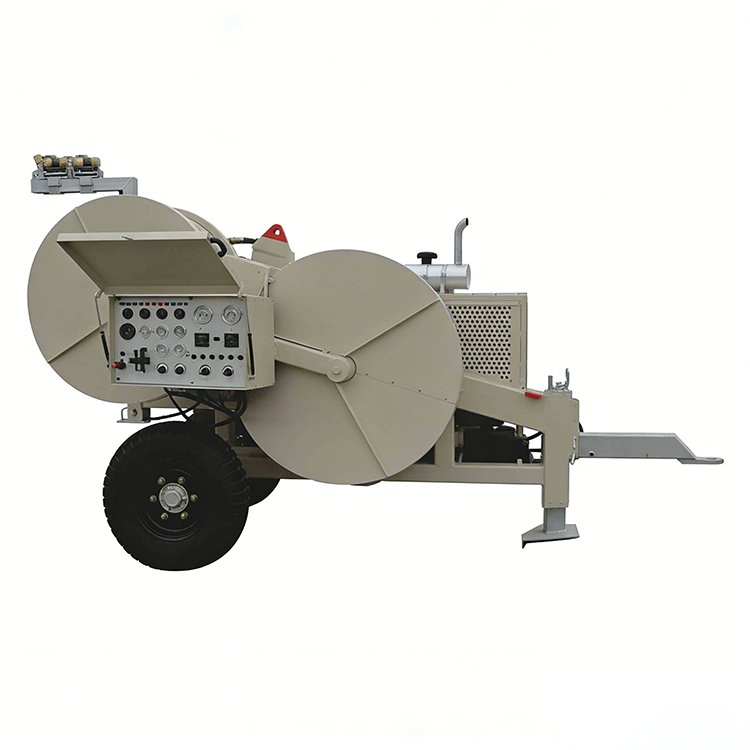

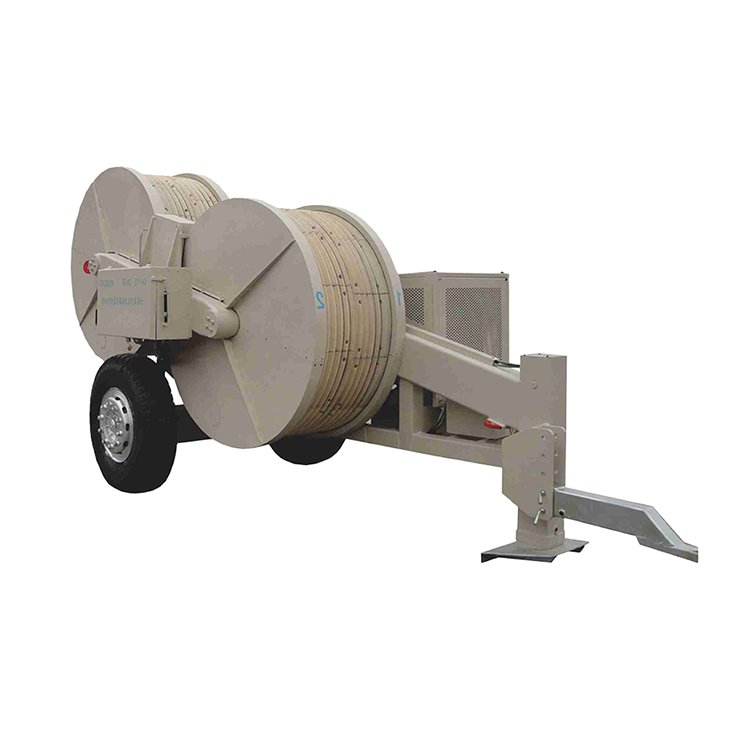

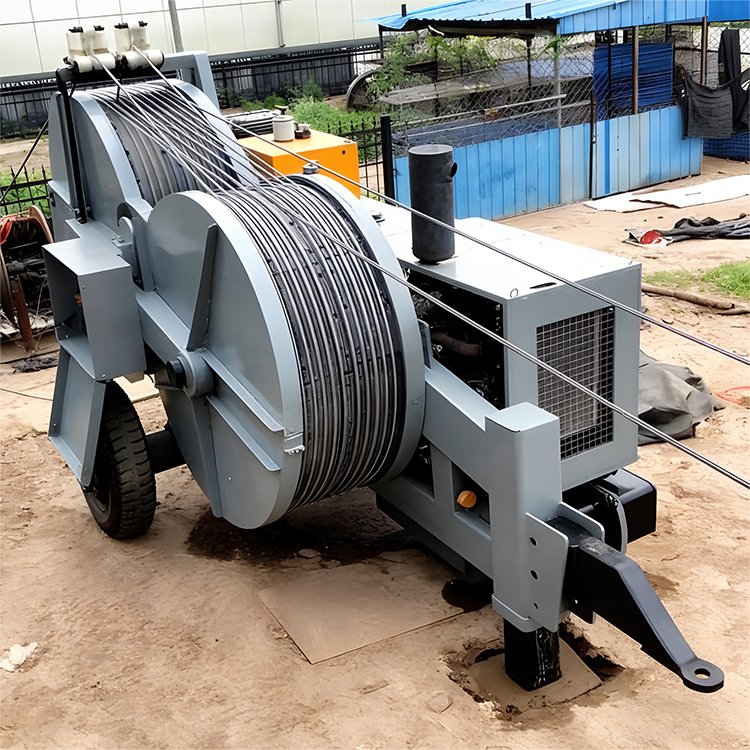

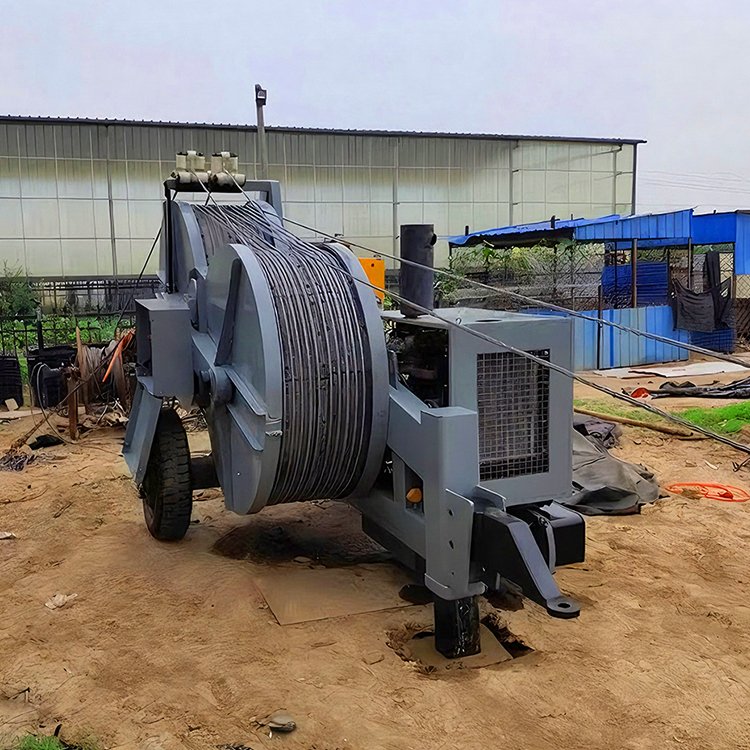

Heavy-Duty Hydraulic Cable Puller Trailer
Efficiently pull cables with this heavy-duty hydraulic cable puller trailer. Ideal for construction, utility, and infrastructure work, it ensures reliable performance and easy transport.
Main Technical Parameters
Model SA-YZ70 Hydraulic Tensioner
Maximum Tension (kN) 2×35 or 1×70
Continuous Tension (kN) 2×30 or 1×60
Maximum Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ1200
Number of Grooves 2×5
Maximum Pullback (kN) 2×30 or 1×60
Maximum Speedback (km/h) 2×2.1
Maximum Diameter of Suitable Conductor (mm) Φ32
Engine Power / Speed (kW/rpm) 51/2500
Dimensions(mm) 4400×2100×2600
Weight (kg) 4000
Main Components
Engine Beinei Deutz air cooled diesel engine
Main Pump/Motor Rexroth(BOSCH)
Reducer RR (ltalian) or Rexroth
Hydraulic Valve Rexroth(BOSCH)
Radiator AKG
Hydraulic Instrument WIKA
