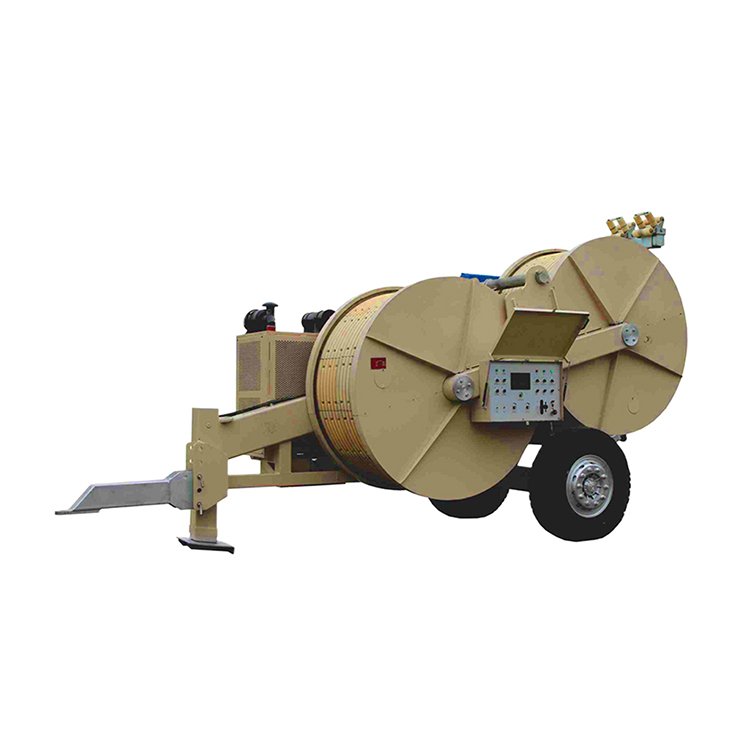

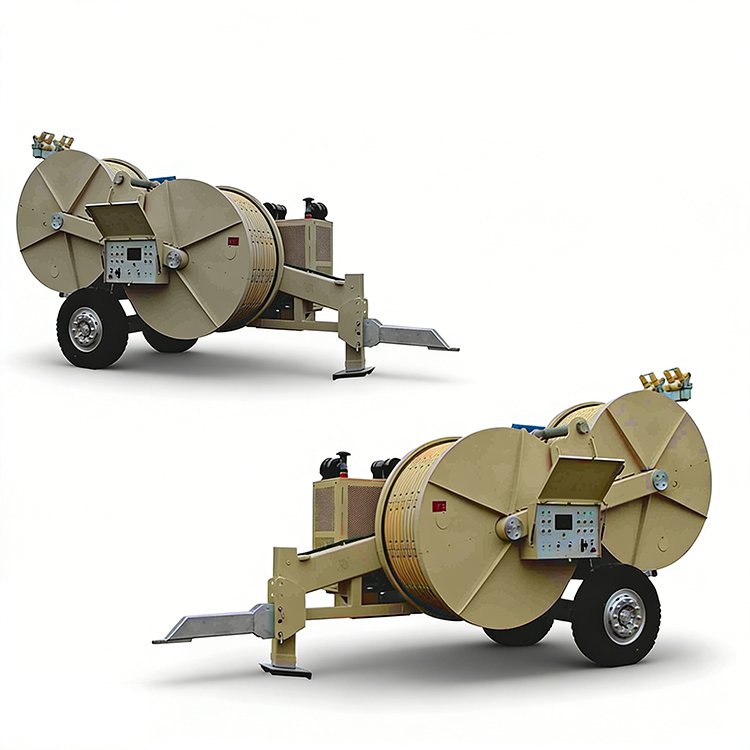

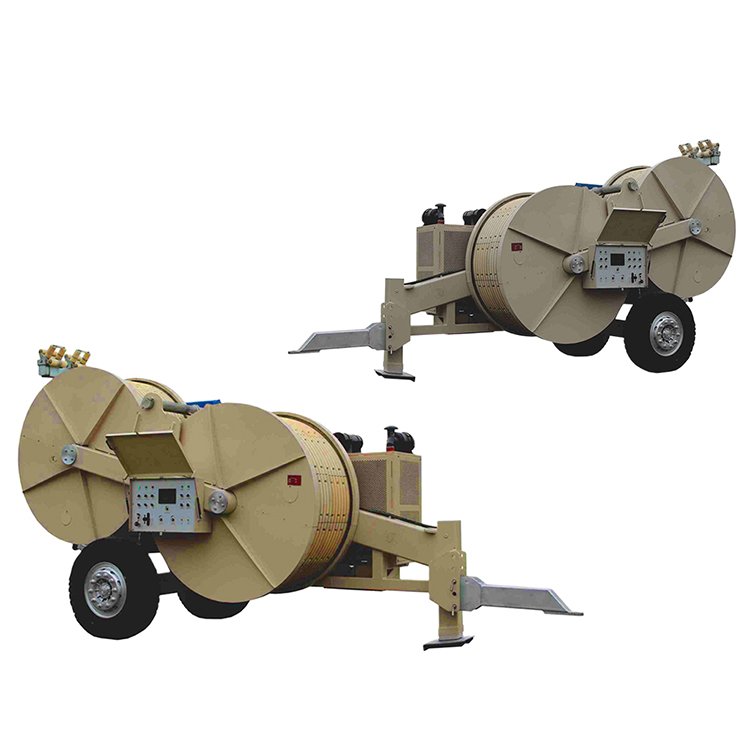

Heavy-Duty Hydraulic Cable Puller Trailer
Robust hydraulic cable puller trailer for efficient power line stringing, featuring durable reels and mobile design for construction sites.
Main Technical Parameters
Mode SA-ZY2×90 Hydraulic Tensioner
Maximum Tension (KN) 2×90 or 1×180
Continuous Tension (KN) 2×80 or 1×160
Maximum speed (km/h) 5
Bull wheel bottom of groove diameter (mm) Φ1850
Number of grooves 2×6
Maximum pull-back 2×90 or 1×180
Maximum pull-back speed( (km/h) 2×1.7
Maximum suitable conductor diameter r (mm) Φ48.8
Engine Power/Speed (kw/rpm) 82.5/2500
Dimensions (mm) 5300×2290×2950
Weight (kg) 10500
Main Components
Engine Deutz air-cooled diesel engine
Main Pump/Motor Rexroth (BOSCH)
Main Hydraulic Valve Rexroth (BOSCH)
Reducer RR (ltalian)
Radiator AKG
Hydraulic Instrument WIKA
