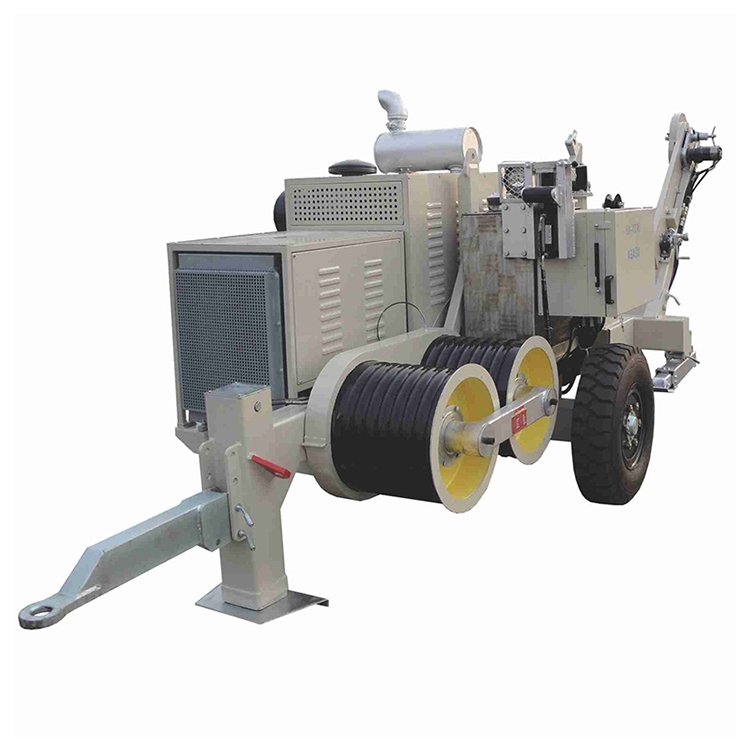

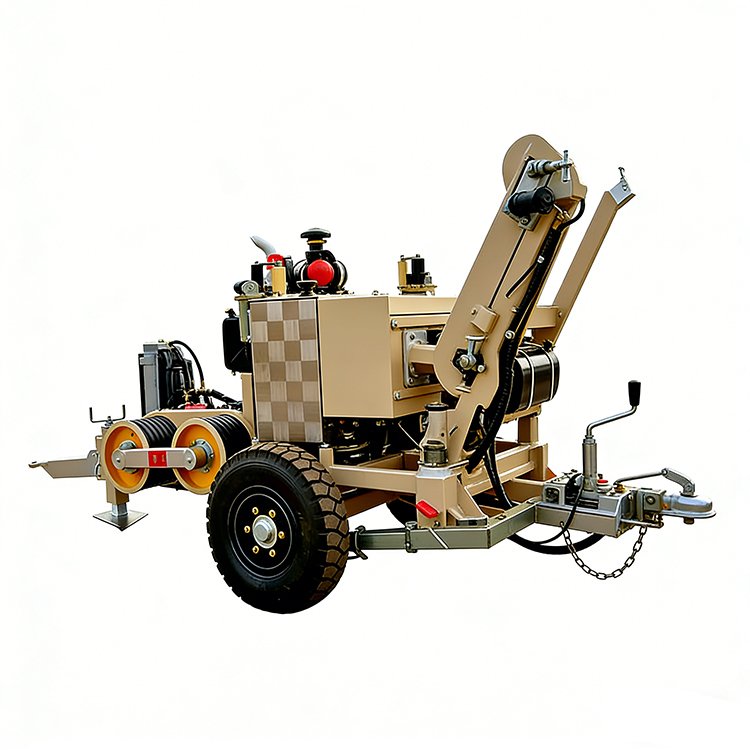

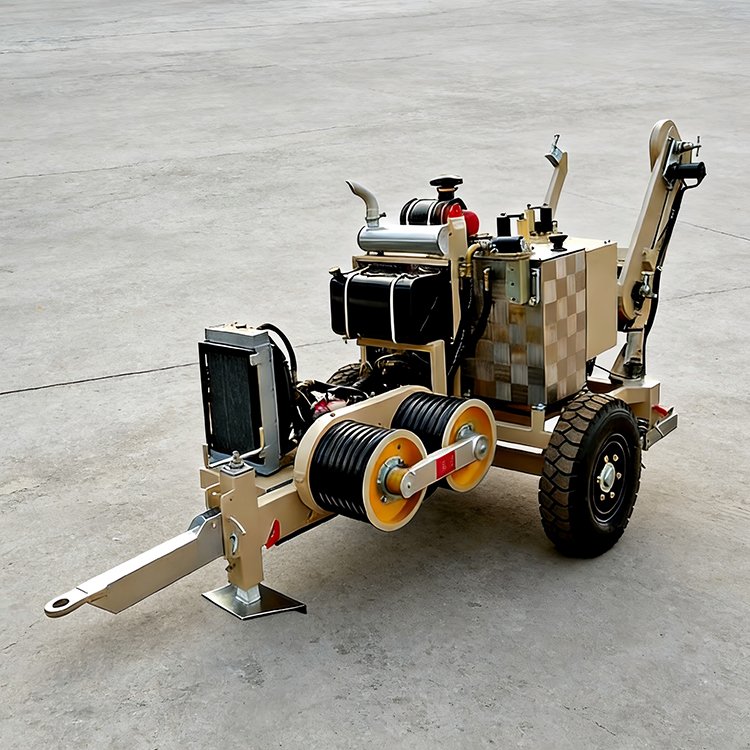

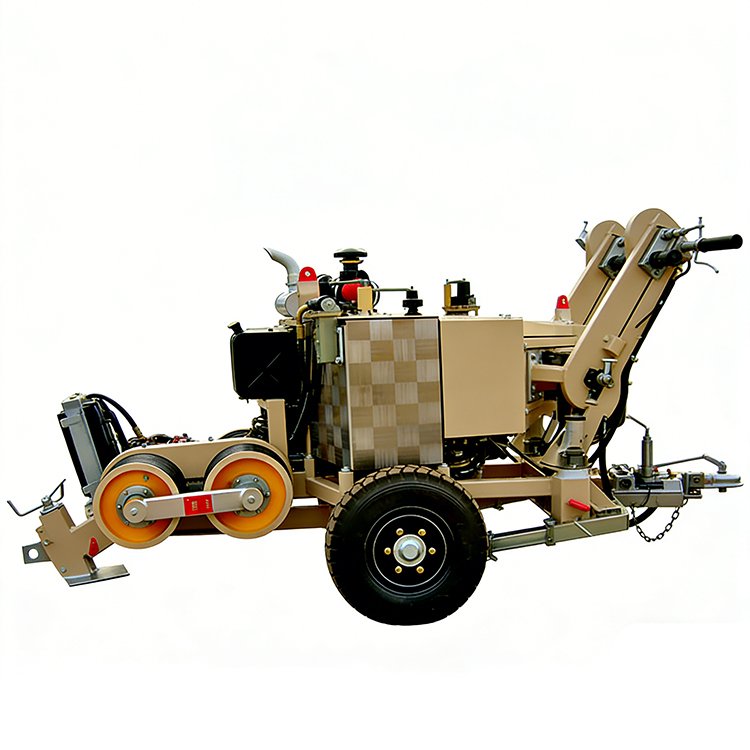

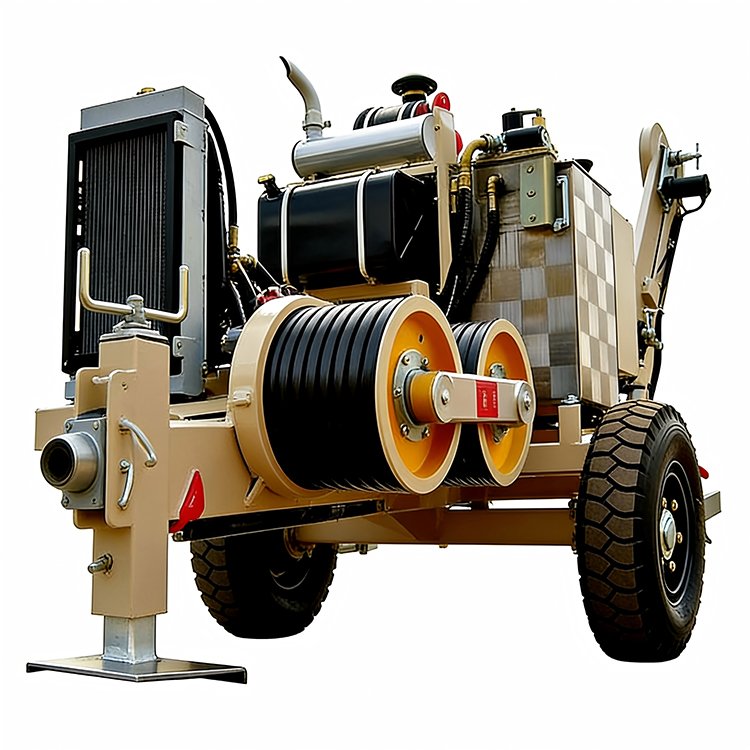

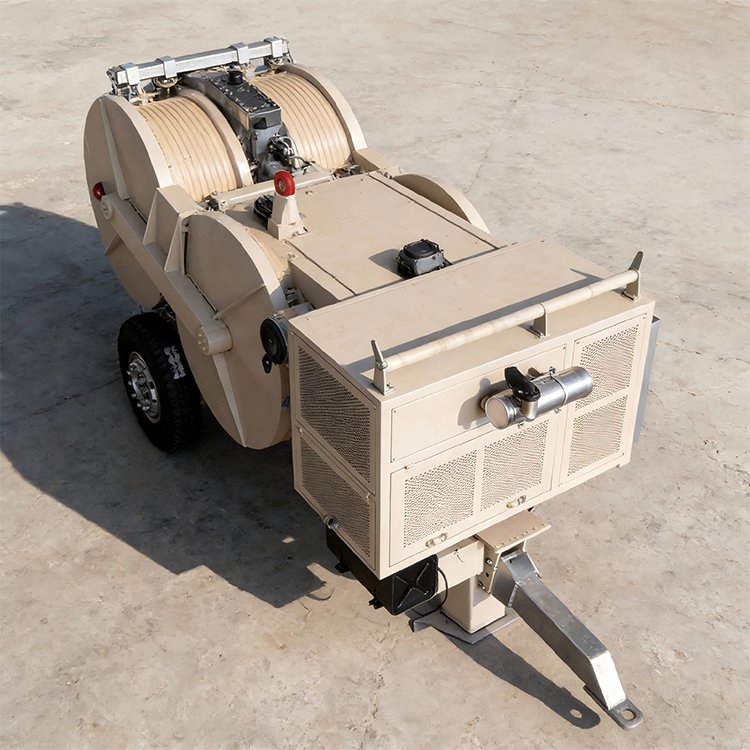

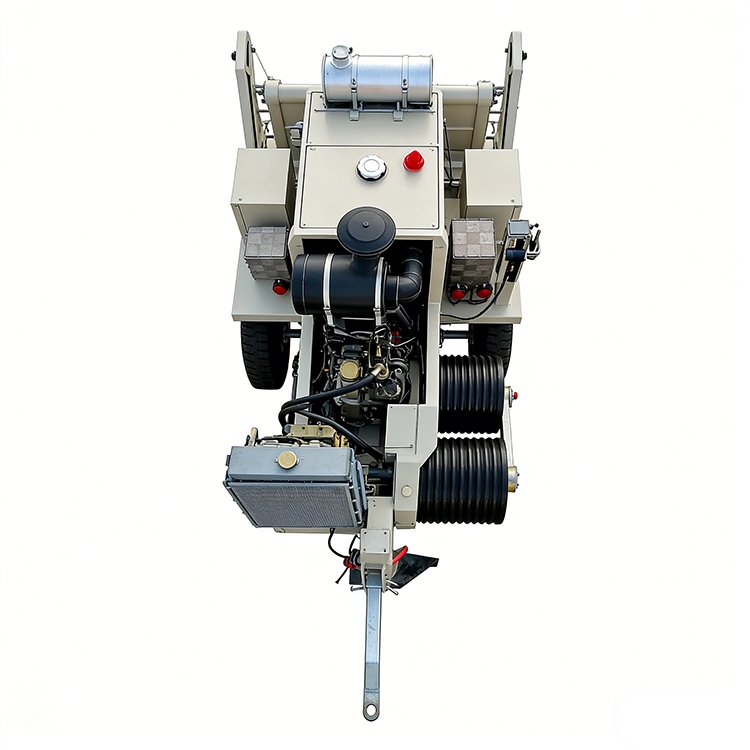

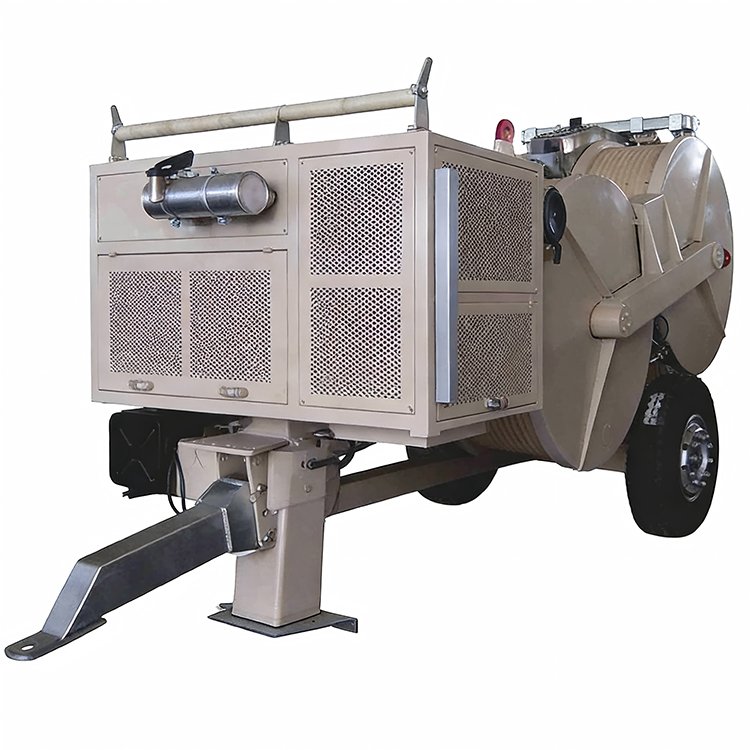

Heavy-Duty Hydraulic Cable Pulling Winch
Heavy-duty hydraulic cable pulling winch delivers reliable power for power line installation, construction, and maintenance, with robust design and easy mobility for versatile use.
Product Features
Our SA-YQ40 Hydraulic Puller has an overload automaticprotection function, The maximum traction force forconductor stringing operation is able to be preset. Anotherfunction is the automatic action of spring appliedhydraulically released brake. Owing to it, our product is safeto be operated, in case that the motor suddenly turns off, orother reasons cause the hydraulic failure.
Main Technical Parameters
Model SA-YQ40 Hydraulic Puller
Max Traction Force (KN) 40
Continuous Tractive Effort (kN) 35
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter(mm) φ400
Number of Bullwheel Grooves 7
Maximum Diameter of Suitable Steel Rope(mm) φ16
Maximum Through Connector Diameter(mm) φ50
Engine Power/speed (kw/rpm) 60/2000
Dimensions(mm) 3500×2000×2300
Weight (kg) 2500
Main Components
Engine Cummins(DONGFENG )water cooled engine
Main Variable Pump and Main Motor Rexroth (BOSCH)
Reducer RR (ltalian)
Main Hydraulic Valve Rexroth (BOSCH)
Radiator AKG
Hydraulic instrument WIKA
Suitable Drum Model GSP1400 (ltem number: 07125C)
