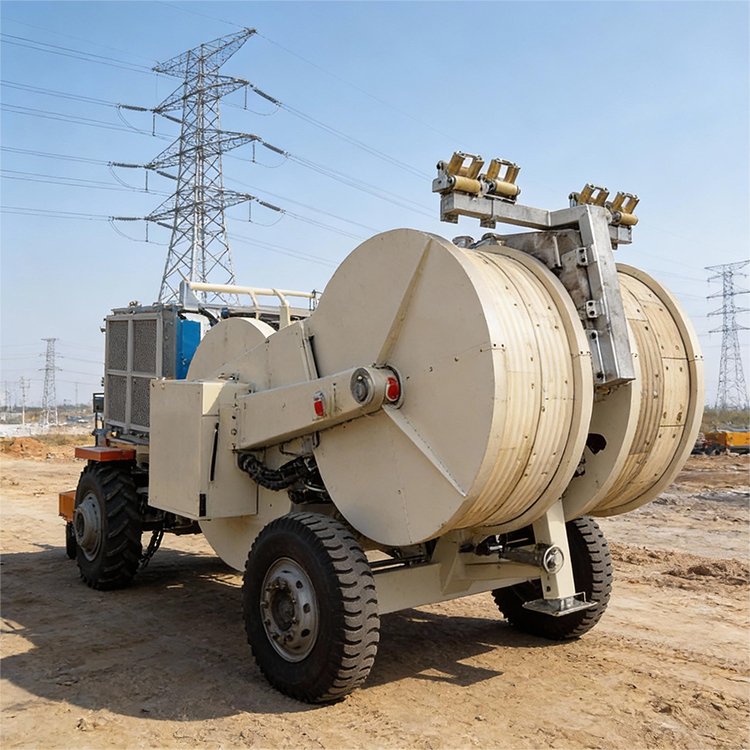

Heavy-Duty Hydraulic Cable Pulling Winch
Robust hydraulic cable pulling winch with dual reels, engine, and mobile design for efficient power line installation and construction projects.
Technical Parameters
Model SA-YZ40 Hydraulic Tensioner
Maximum Tension (kN) 40
Continuous Tension (kN) 35
Maximum Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) φ1200
Number of Grooves 5
Maximum Pullback (kN) 40
Maximum Speedback (km/h) 3
Maximum Diameter of Suitable Conductor (mm) φ32
Engine Power / Speed (kW/rpm) 51/2500
D.mensions(mm) 3400×1800×2400
Weight (kg) 2800
Configurations
Engine Beinei Deutz air cooled diesel engine
Main Pump/Motor Rexroth (BOSCH)
Reducer RR (ltalian)
Hydraulic Valve Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument WIKA
