Heavy-Duty Rigging Pulley for Lifting Tasks

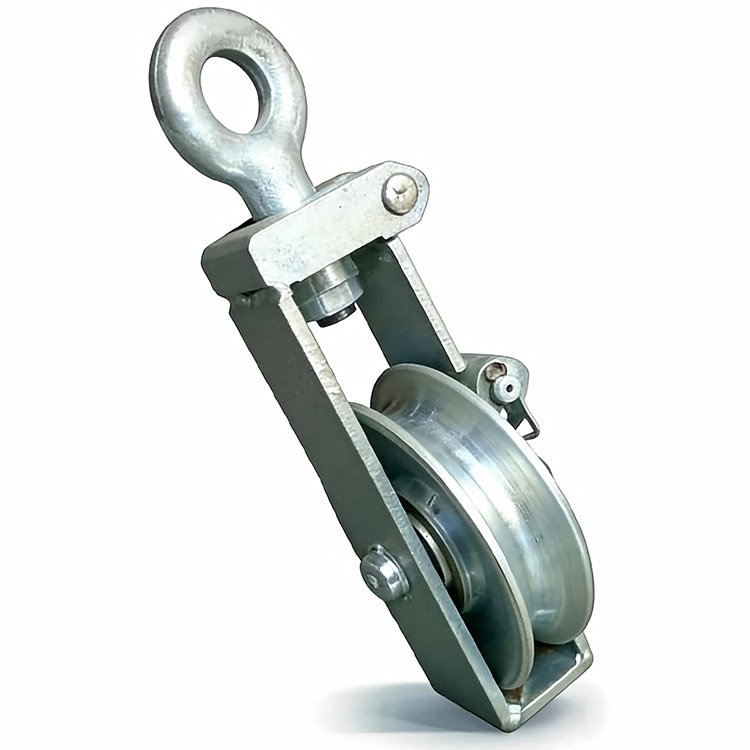

Galvanized heavy-duty rigging pulley with eye hook, swivel joint, and locking mechanism for lifting applications.
Product Features
The product is used for fastening conductors, from a gantry or a derrick to run a trawler’s wire rope It has an open/close hook for easy removal of a rope from the block
Main Technical Parameters
Item number Model Rated load (kN) Diameter of sheave (mm) Width of sheave (mm) Weight (kg)
12191 SH30J 30 Φ140 36 5.3
12192 SH50J 50 Φ160 48 9.0
12193 SH80J 80 Φ180 56 16.5
