Heavy-Duty Stainless Steel Wire Rope Loop Assembly
High-strength stainless steel wire rope loop assembly for secure lifting, rigging, or industrial use. Corrosion-resistant, durable, and reliable for heavy-load applications.
Multi-Weave Pulling Grips
Multi-weave pulling grips are constructed of high strength galvanized steel and are designed for pulling aluminum or copper bare conductor, wire rope and insulated cables
The forged steel rotating eye will thread through sheaves and blocks without binding, but is not a swivel and will not turn under tension

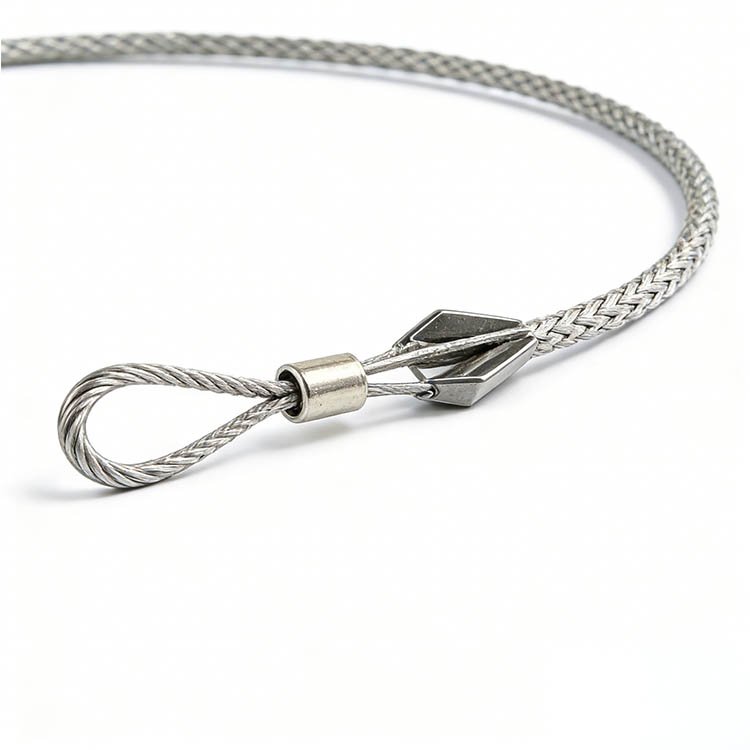

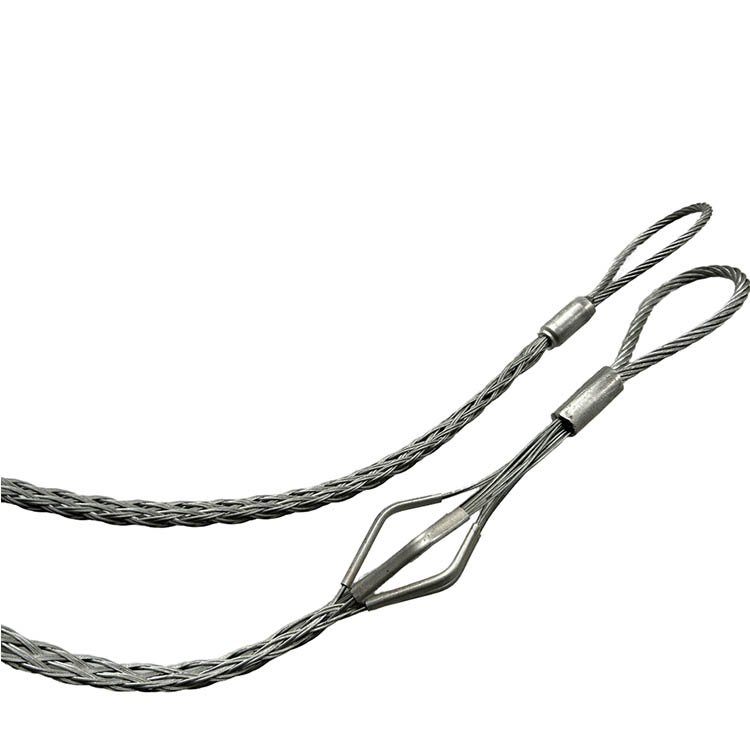

Multi-weave pulling grips are available with a flexible or rotating eye, which can be attached to a swivel
The rotating eye can turn to relieve pulling torque when tension is relaxed
These grips are used in applications such as distribution line stringing and overhead transmission

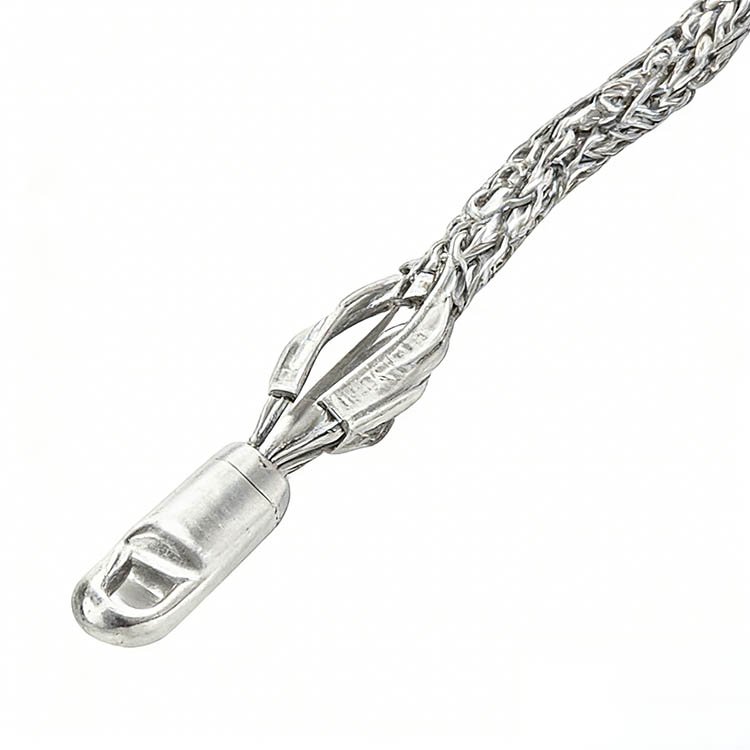

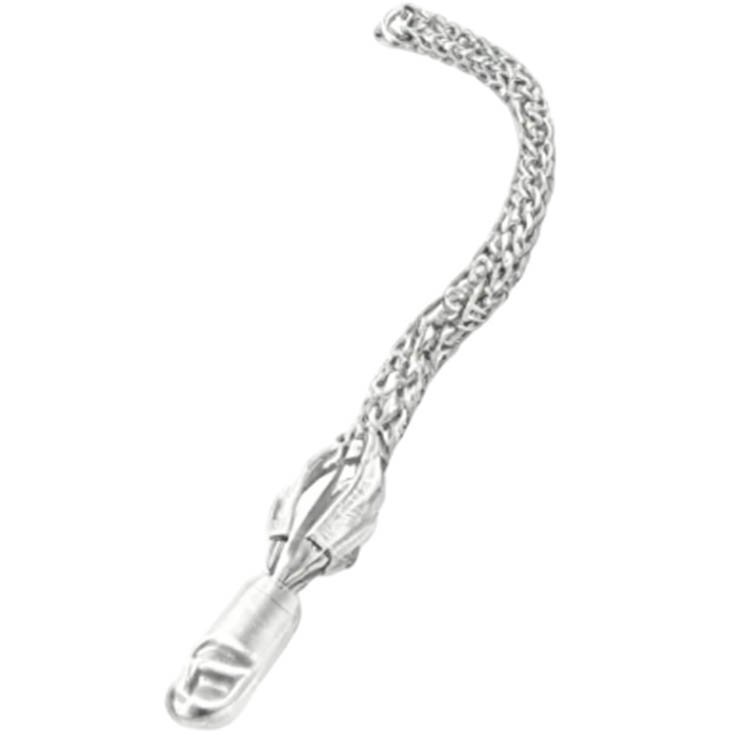

Rotating Eye
Part Number Cable Diameter Eye Diameter Mesh Length Approx Break Strength
RMCS010 0.25-0.49″ (6.4-12.5mm) 7/8″ (22.2mm) 26″ (660.4mm) 6800 lbs.
RMCS016 0.50-0.74″ (12.7-18.8mm) 1″ (25.4mm) 32″ (812.8mm) 10000 lbs.
RMCS022 0.75-0.99″ (19.1-25.1mm) 1″ (25.4mm) 41″ (1041.4mm) 14400 lbs.
RMCS025 1.00-1.24″ (25.4-31.8mm) 1-3/8″ (34.9mm) 52″ (1320.8mm) 24600 lbs.
RMCS032 1.25-1.49″ (31.8-37.8mm) 1-5/8″ (41.3mm) 56″ (1422.4mm) 30600 lbs.
RMCS038 1.50-1.74″ (38.1-44.2mm) 1-7/8″ (47.6mm) 60″ (1524.0mm) 30600 lbs.
RMCS050 2.00-2.49″ (50.8-63.3mm) 1-7/8″ (47.6mm) 50″ (1270.0mm) 48000 lbs.
RMCS060 2.50-2.99″ (63.5-76.0mm) 1-7/8″ (47.6mm) 52″ (1320.8mm) 48000 lbs.
RMCS070 3.00-3.49″ (76.2-88.6mm) 1-7/8″ (47.6mm) 54″ (1371.6mm) 48000 lbs.
RMCS080 3.50-3.99″ (88.9-101.3mm) 1-7/8″ (47.6mm) 56″ (1422.4mm) 48000 lbs.

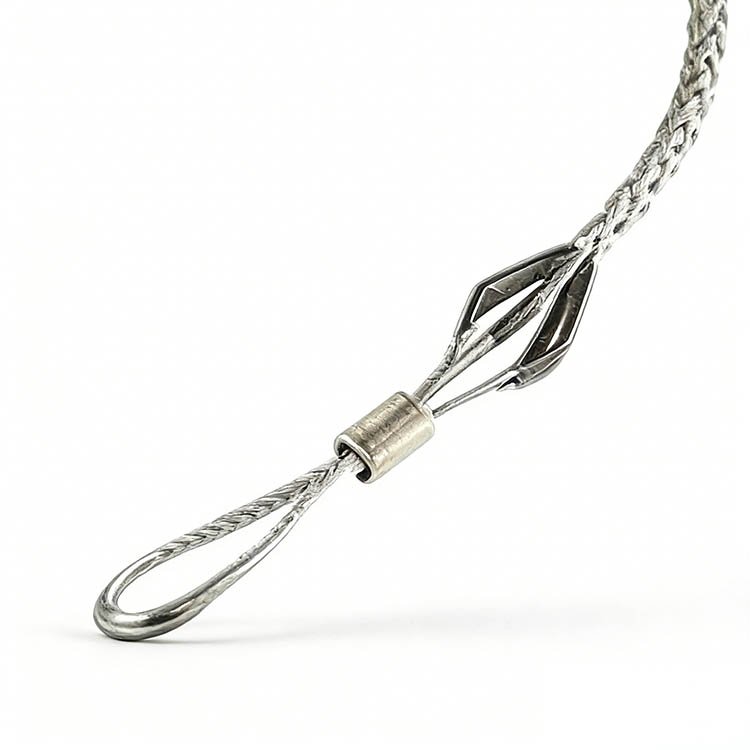

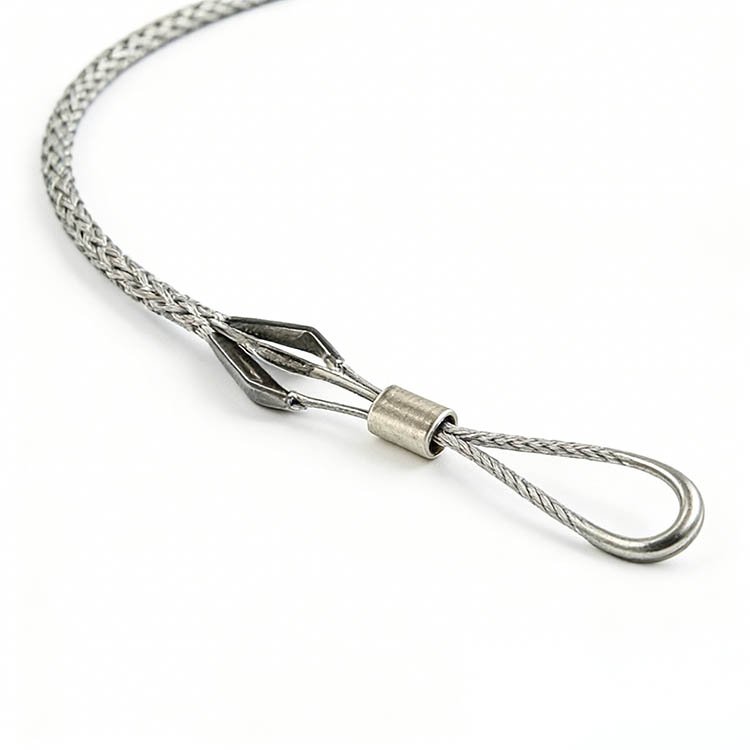

Flexible Eye
Part Number Cable Diameter Eye Diameter Mesh Length Approx Break Strength
FMCS010 0.25-0.49”(6.4-12.5mm) 1/4”(6.4mm) 26”(660.4mm) 6800 lbs.
FMCS016 0.50-0.74”(12.7-18.8mm) 5/16”(7.9mm) 32”(812.8mm) 10000 lbs.
FMCS022 0.75-0.99”(19.1-25.1mm) 3/8”(9.5mm) 41”(1041.4mm) 14400 lbs.
FMCS025 1.00-1.24”(25.4-31.8mm) 1/2”(12.7mm) 52”(1320.8mm) 24600 lbs.
FMCS032 1.25-1.49”(31.8-37.8mm) 1/2”(12.7mm) 56”(1422.4mm) 30600 lbs.
FMCS038 1.50-1.74”(38.1-44.2mm) 1/2”(12.7mm) 60”(1524.0mm) 30600 lbs.
FMCS050 2.00-2.49”(50.8-63.3mm) 5/8”(15.9mm) 50”(1270.0mm) 48000 lbs.
FMCS060 2.50-2.99”(63.5-76.0mm) 5/8”(15.9mm) 52”(1320.8mm) 48000 lbs.
FMCS070 3.00-3.49”(76.2-88.6mm) 5/8”(15.9mm) 54”(1371.6mm) 48000 lbs.
FMCS080 3.50-3.99”(88.9-101.3mm) 5/8”(15.9mm) 56”(1422.4mm) 48000 lbs.
