Heavy-Duty Steel Wire Rope for Excavators

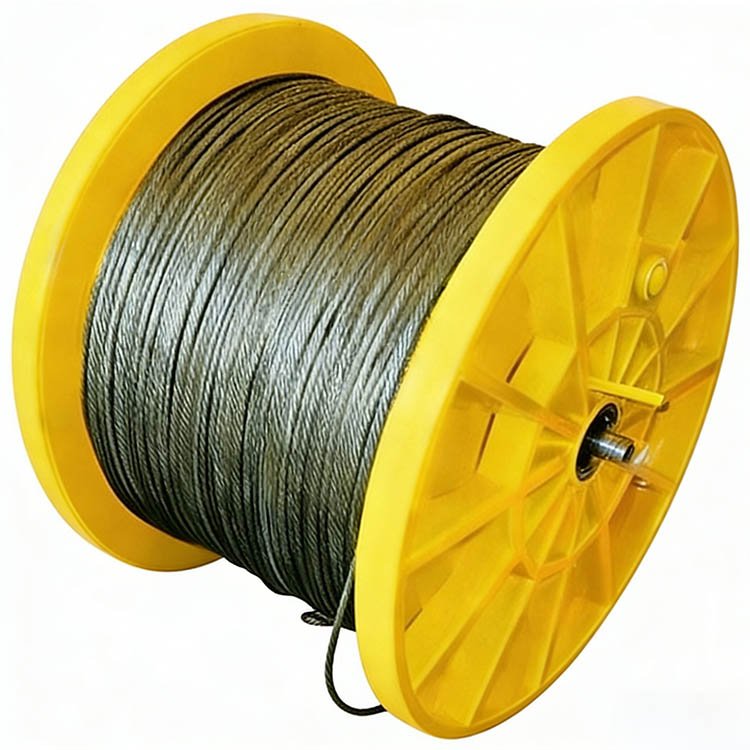

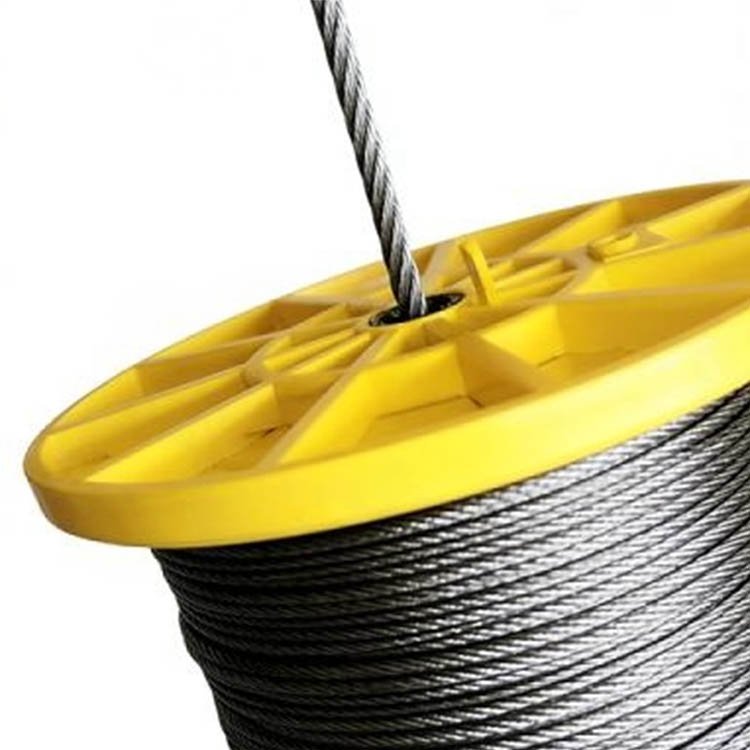

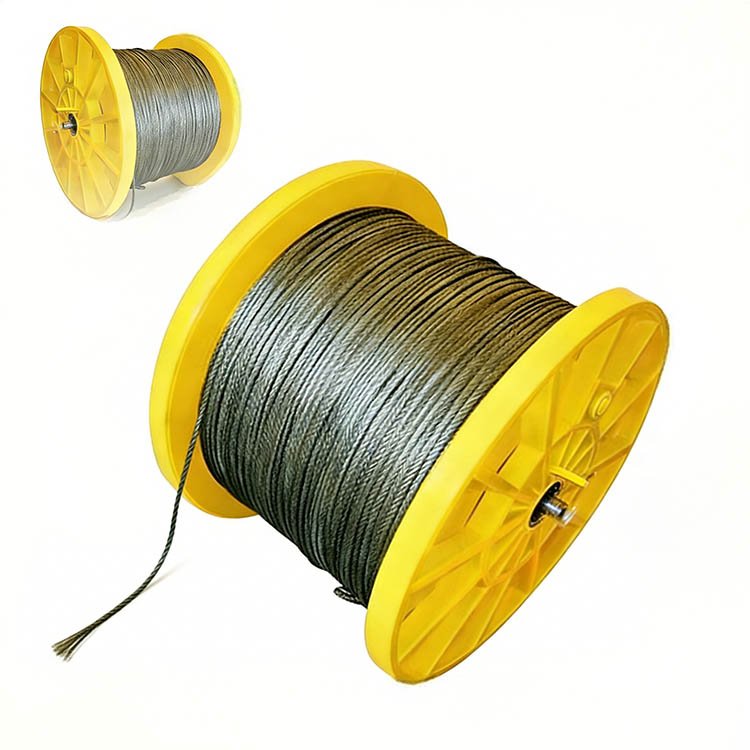

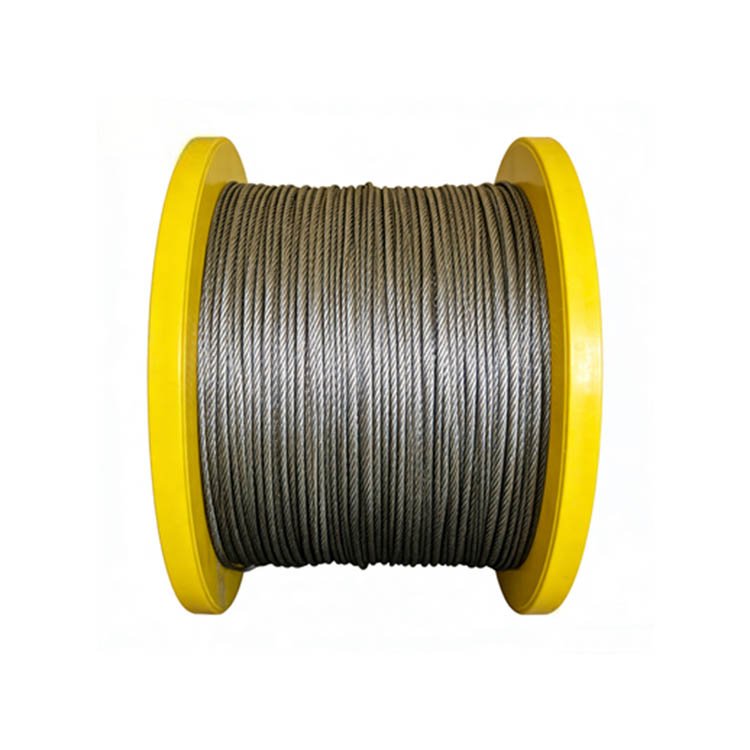

High-strength steel wire rope for excavators, built for durability and reliable performance in heavy-duty applications. Yellow reels ensure easy handling and storage.
Product Features
Anti-twisting galvanized steel rope is constructed by braiding strands and each strand consists of individual galvanized elementary wires. Notably this type of steel rope offers multiple prominent advantages: it features high flexibility maintains complete stability against rotation ensures homogeneous distribution of pressure between the elementary wires delivers increased efficiency during stringing operations.
Main Technical Parameters
FUA Model Nominal Diameter inches(mm) Indicative Lubricated Linear Mass (kg/m) Minimum Breaking Load (kN) Standard Length (m)
FUA006 6 0.11 22.9 1800-3600
FUA008 8 0.22 42.6 1600
FUAG11 11 0.36 75 1100
FUAG13 13 0.50 105 800-1600
21000114 15 0.71 150 900-1800
21000117 18 1.07 225 1200
FUAG21 21 1.43 300 900
FUAG23 23 1.72 360 800
FUAG25 25 2.00 420 700
FUA628 28 2.57 540 600
21000850 9 0.25 60 1600
21000852 13 0.50 121 800-1600
21000854 16 0.76 183 900
21000856 18 1.01 243 800
21000858 22 1.48 358 900
21000860 25 2.02 480 800
21000862 31 3.00 713 500
