Heavy-Duty Wire Rope Lifting Sling Excavator Attachment
Reliable wire rope lifting sling for excavators – durable, corrosion-resistant, ideal for heavy lifting. Ensures secure load handling with high tensile strength.
Standard Duty Support Grips
Standard closed mesh support grips are designed for loads up to 600lbs. and vertical runs of no more than 100ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods and tubing.
Absorbs additional strain from vibration, expansion, contraction and flexing.

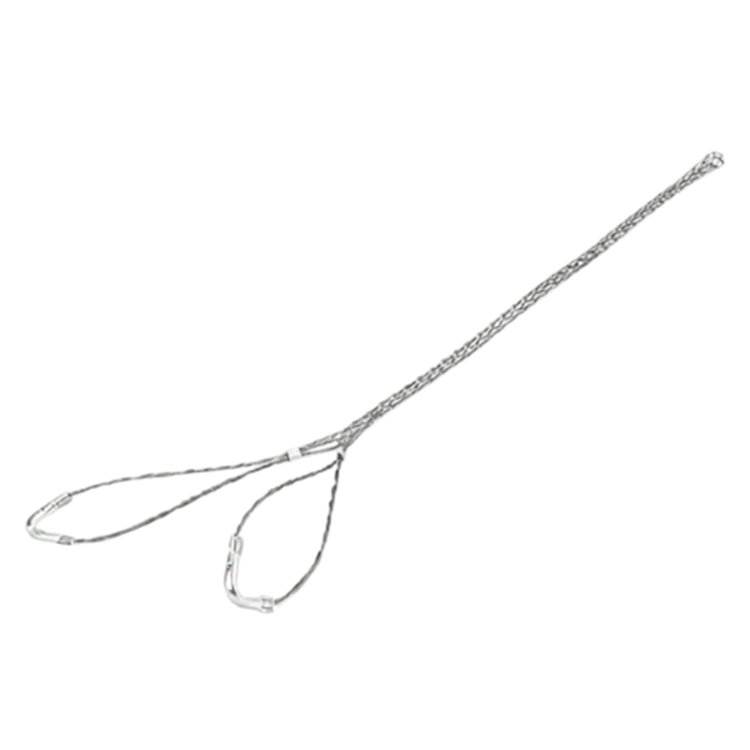

Double eye for use when cable is vertical and extends without bending.

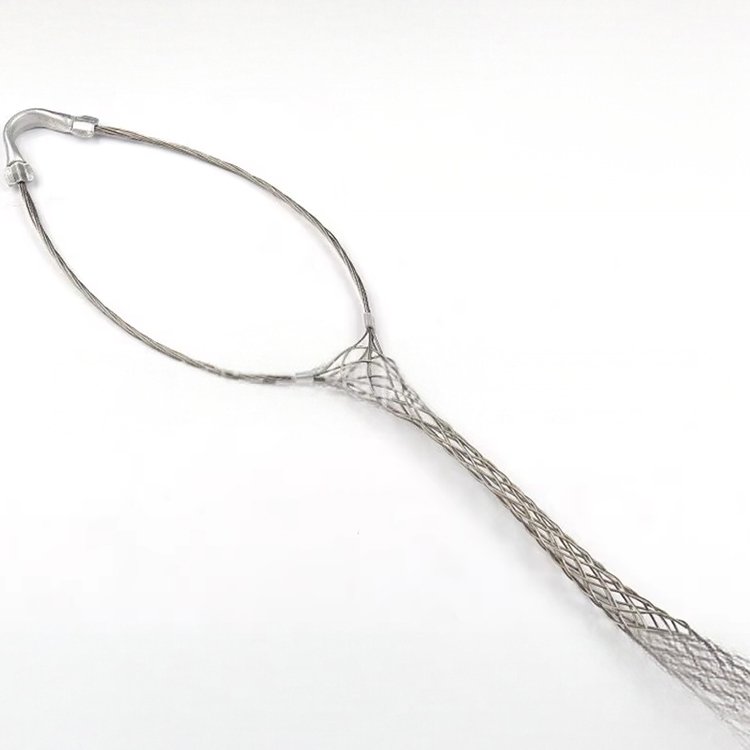

Single eye for use when cable is vertical and for applications where cable bends.
Closed Mesh , Single Eye
Part Number Cable Diameter Bale Length Mesh Length Approx Break Strength
SEHGO50P 0.50-0.61”(12.7-15.5mm) 7”(177.8mm) 11”(279.4mm) 770 lbs.
SEHGO62P 0.62-0.74”(15.7-18.8mm) 8”(203.2mm) 11”(279.4mm) 960 lbs.
SEHGO75P 0.75-0.99”(19.1-25.1mm) 8”(203.2mm) 14”(355.6mm) 1300 lbs.
SEHG100P 1.00-1.24”(25.4-31.5mm) 9”(228.6mm) 15”(381.0mm) 1680 lbs.
SEHG125P 1.25-1.49”(31.8-37.8mm) 10”(254.0mm) 16”(406.4mm) 1680 lbs.
SEHG150P 1.50-1.74”(38.1-44.2mm) 12”(304.8mm) 18”(457.2mm) 1680 lbs.
SEHG175P 1.75-1.99”(44.5-50.5mm) 14”(355.6mm) 20”(508.0mm) 2640 lbs.
SEHG200P 2.00-2.49”(50.8-63.2mm) 16”(406.4mm) 22”(558.8mm) 3760 lbs.
SEHG250P 2.50-2.99”(63.5-75.9mm) 18”(457.2mm) 24”(609.6mm) 3760 lbs.
SEHG300P 3.00-3.49”(76.2-88.6mm) 21”(533.4mm) 26”(660.4mm) 5040 lbs.
SEHG350P 3.50-3.99”(88.9-101.3mm) 24”(609.6mm) 28”(711.2mm) 5040 lbs.
Closed Mesh, Double Eye
Part Number Cable Diameter Bale Length Mesh Length Approx Break Strength
DEHG050P 0.50-0.61″ (12.7-15.5mm) 4″ (101.6mm) 11″ (279.4mm) 770 lbs.
DEHG062P 0.62-0.74″ (15.7-18.8mm) 4″ (101.6mm) 11″ (279.4mm) 1150 lbs.
DEHG075P 0.75-0.99″ (19.1-25.1mm) 4″ (101.6mm) 14″ (355.6mm) 1320 lbs.
DEHG100P 1.00-1.24″ (25.4-31.5mm) 5″ (127.0mm) 15″ (381.0mm) 1920 lbs.
DEHG125P 1.25-1.49″ (31.8-37.8mm) 5″ (127.0mm) 16″ (406.4mm) 1920 lbs.
DEHG150P 1.50-1.74″ (38.1-44.2mm) 6″ (152.4mm) 18″ (457.2mm) 1920 lbs.
DEHG175P 1.75-1.99″ (44.5-50.5mm) 6″ (152.4mm) 20″ (508.0mm) 3150 lbs.
DEHG200P 2.00-2.49″ (50.8-63.2mm) 6″ (152.4mm) 22″ (558.8mm) 3360 lbs.
DEHG250P 2.50-2.99″ (63.5-75.9mm) 6″ (152.4mm) 24″ (609.6mm) 3360 lbs.
DEHG300P 3.00-3.49″ (76.2-88.6mm) 8″ (203.2mm) 26″ (660.4mm) 5280 lbs.
DEHG350P 3.50-3.99″ (88.9-101.3mm) 8″ (203.2mm) 28″ (711.2mm) 5280 lbs.
