High-Strength Stainless Steel Braided Wire Rope Assembly
High-strength stainless steel braided wire rope assembly for secure rigging, lifting, and industrial tasks. Durable, corrosion-resistant, and reliable for heavy-duty use.

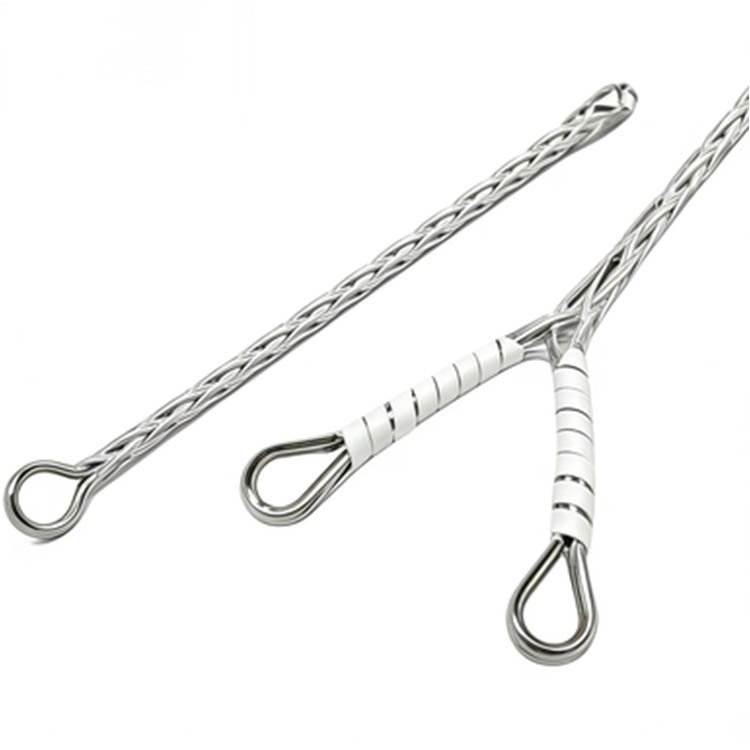

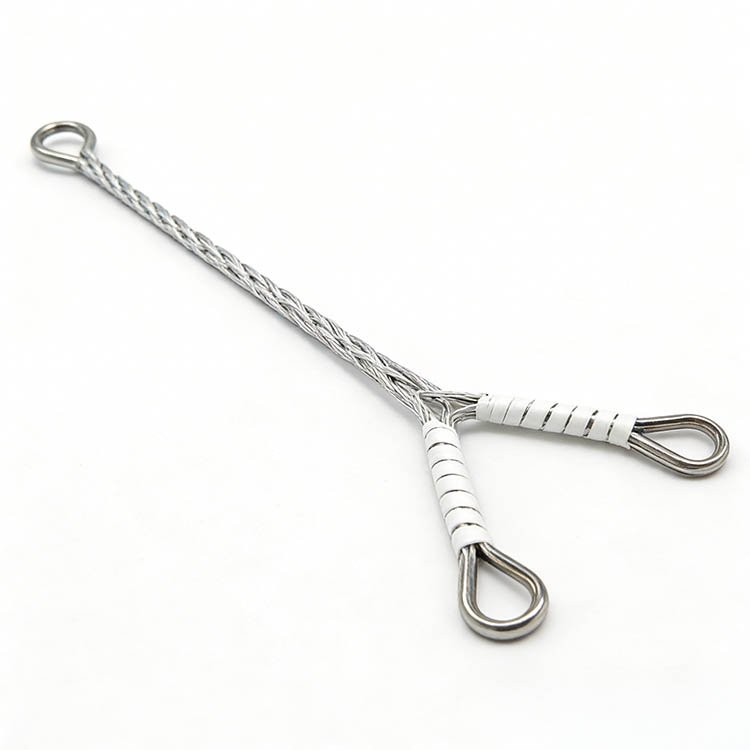

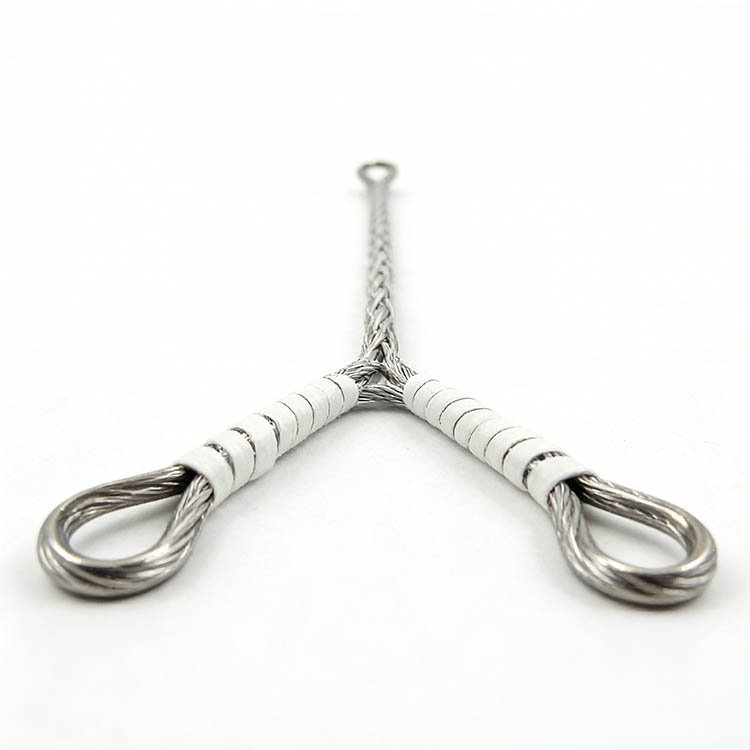

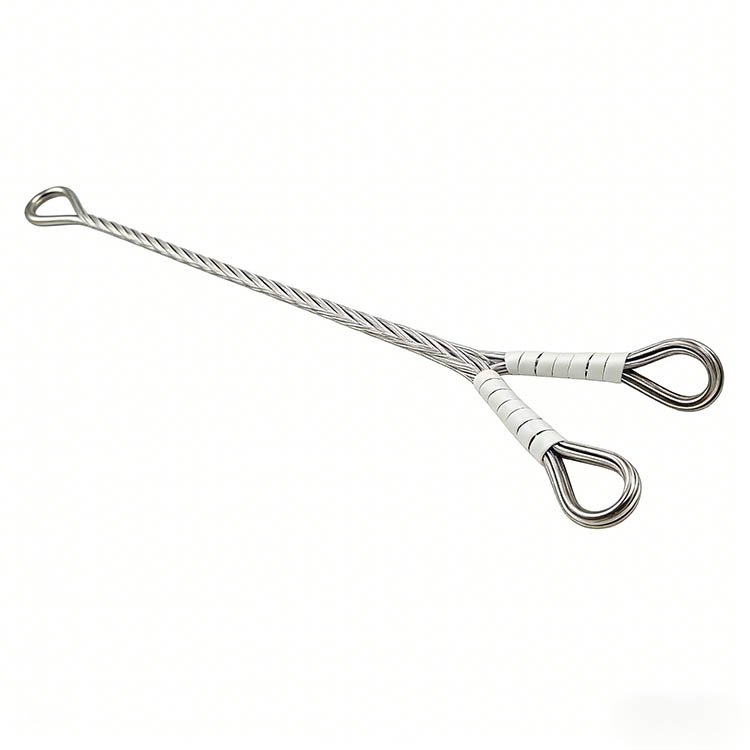

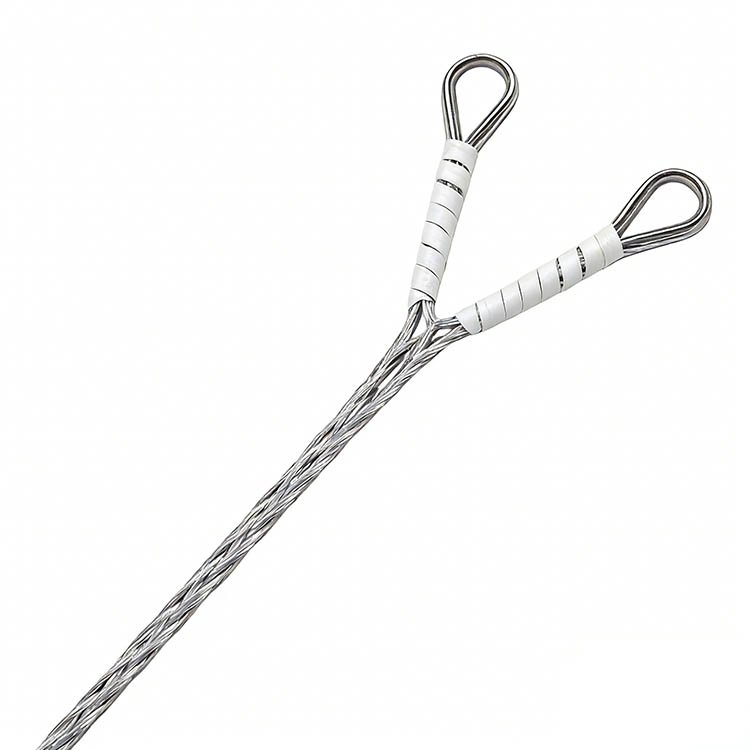

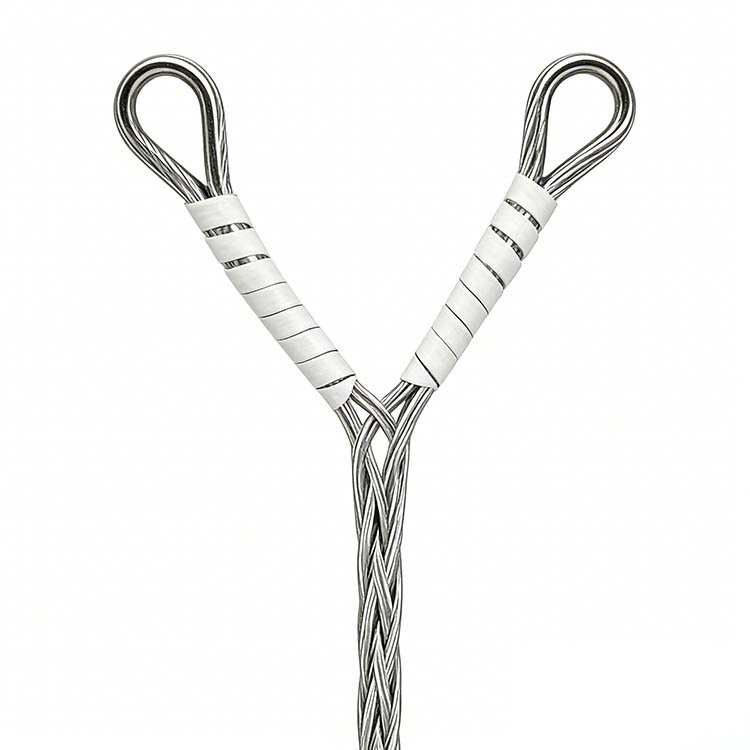

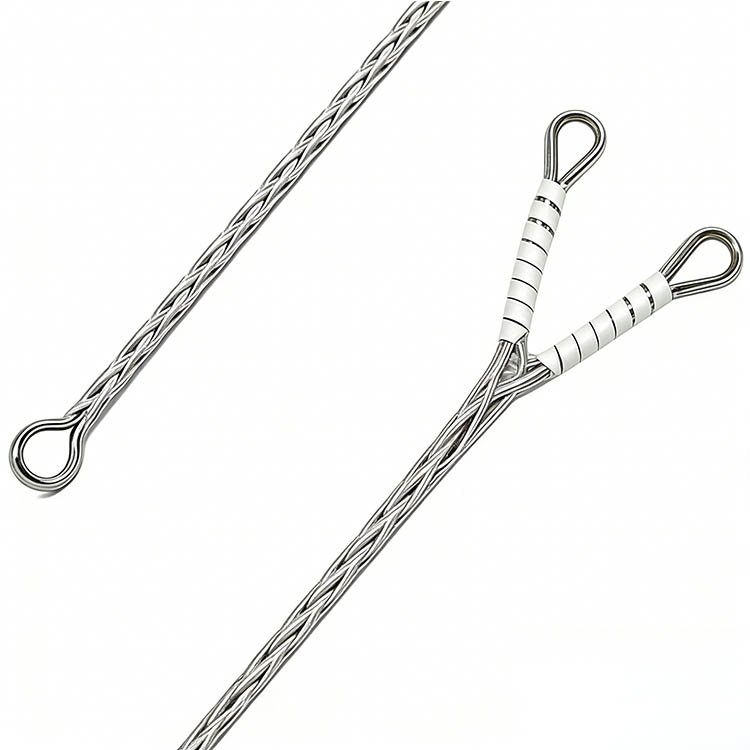

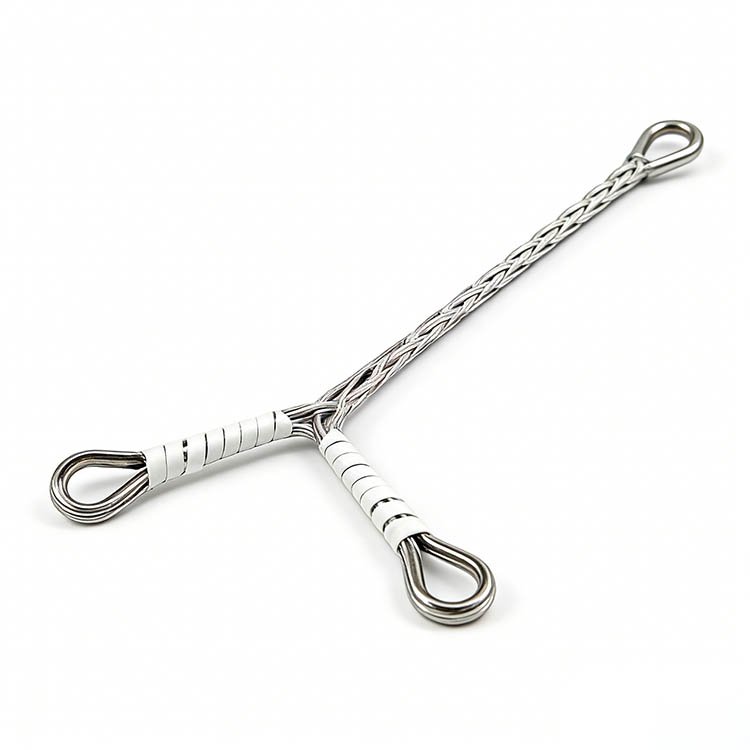

Whipsocks
Whipsocks are woven in Stainless steel wire mesh
Two mounting points and the long gripping area
Help prevent abrasion to the hose underneath
The eyes on these grips are reinforced with a thimble for extra durability
Used on any application where high-pressure hoses are used, air, water, hydraulic, slurry, etc
Whipsocks
Part Number Cable Diameter Mesh Length Approx Break Strength
WS0814 0.315-0.551”(8-14mm) 15.75”(400mm) 1780 lbs.
WS1420 0.551-0.787”(14-20mm) 21.65”(550mm) 2000 lbs.
WS2030 0.787-1.181”(20-30mm) 25.20”(640mm) 2890 lbs.
WS3040 1.181-1.575”(30-40mm) 34.25”(870mm) 5330 lbs.
WS4050 1.575-1.969”(40-50mm) 38.19”(970mm) 5330 lbs.
WS5060 1.969-2.362”(50-60mm) 49.21”(1250mm) 12220 lbs.
WS6070 2.362-2.756”(60-70mm) 51.18”(1300mm) 12220 lbs.
WS7085 2.756-3.346”(70-85mm) 53.15”(1350mm) 12220 lbs.
WS003 3.346-3.937”(85-100mm) 72.44”(1840 mm.) 12220 lbs.
WS312 9.397-4.724”(100-120mm) 72.05”(1830mm) 20660 lbs.
WS004 4.724-5.512”(120-140mm) 86.61”(2200mm) 20660 lbs.
WS006 5.512-7.087”(140-180mm) 93.31”(2370mm) 20660 lbs.
