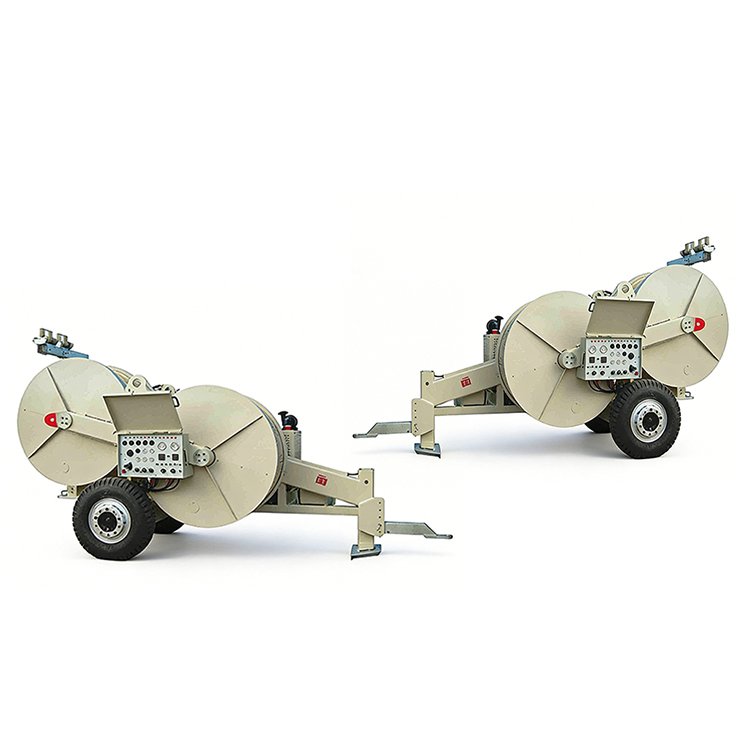

Hydraulic Cable Puller Trailer for Power Transmission

Main Specifications
Main Specifications 07198 07199
Item Number 07198 07199
Model Number SA-YZ2-70 SA-YZ2-80
Maximum Tension (kN) 2×70 or 1×140 2×80 or 1×160
Continuous Tension(kN) 2×65 or 1×130 2×75 or 1×150
Maximum Speed(km/h) 5
Bullwheel Bottom of Groove Diameter (mm) φ700
Number of Grooves 2×5
Maximum Pullback (kN) 2×63 or 1×126
Maximum Speedback (km/h) 2×1.6
Maximum Diameter of Suitable Conductor (mm) φ45
Engine Power/Speed (kW/rpm) 82.5/2500
Dimensions (mm) 5500×2300×2900
Weight (kg) 8500
Main Components
Engine Deutz air-cooled diesel engine
Main Pump/Motor Rexroth (BOSCH)
Main Hydraulic Valve Rexroth (BOSCH)
Reducer RR (Italian)
Radiator AKG
Hydraulic instrument WIKA
