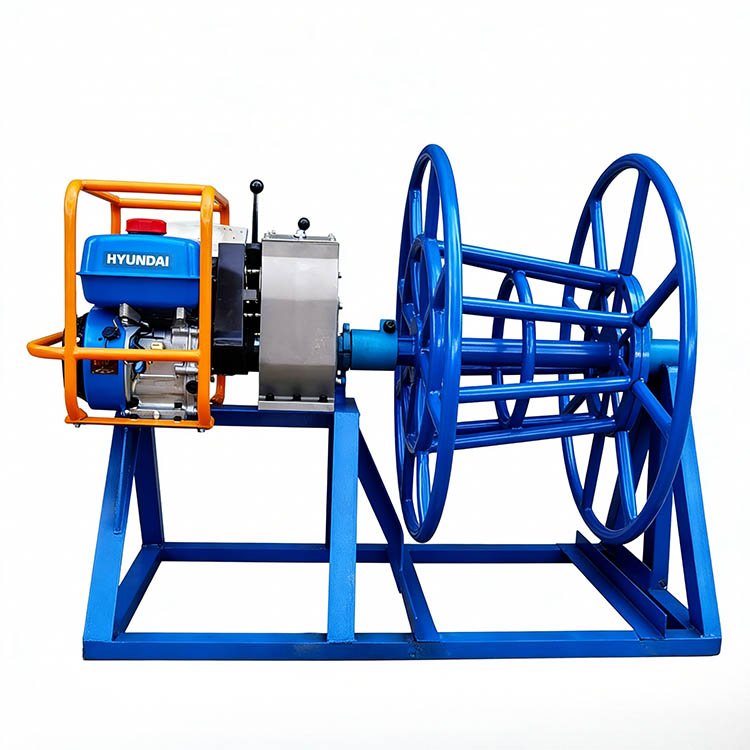

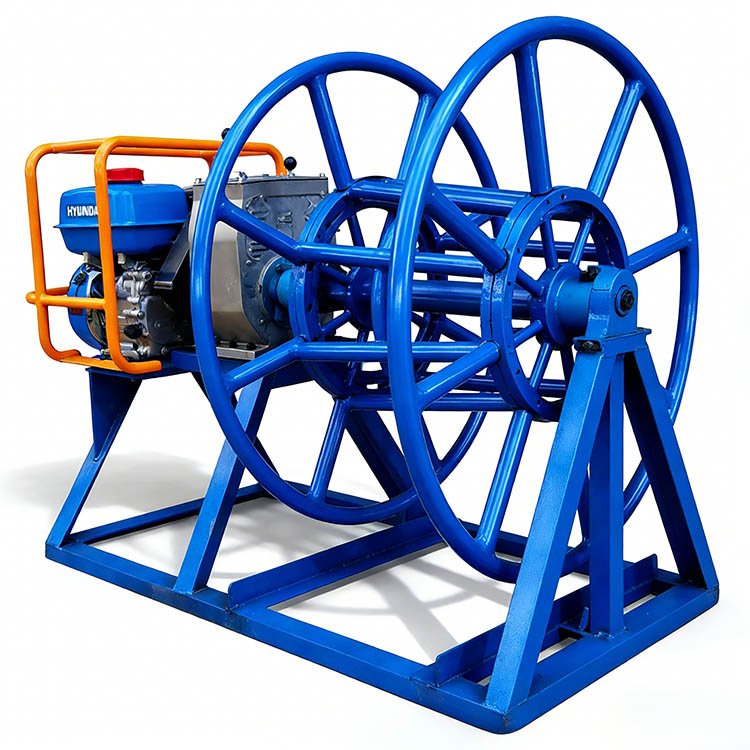

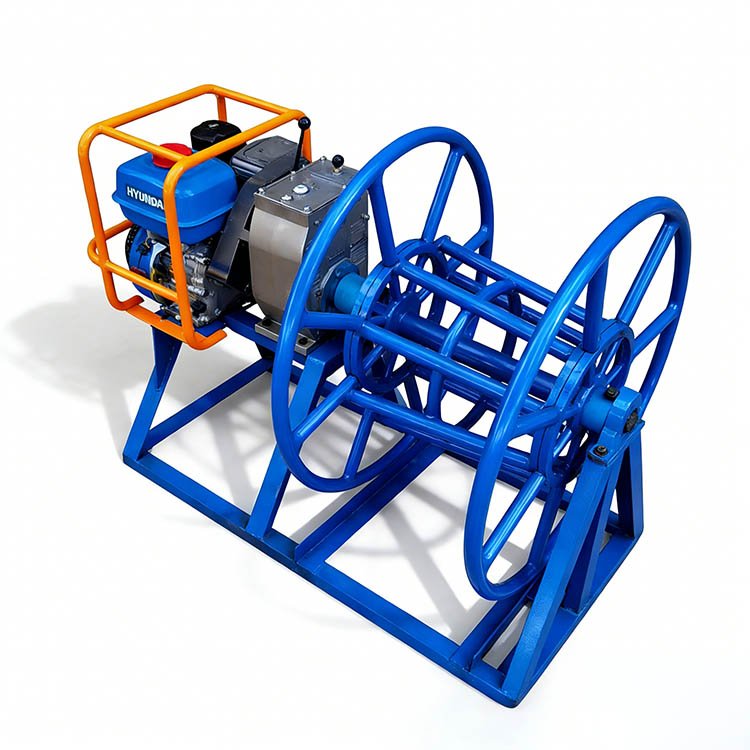

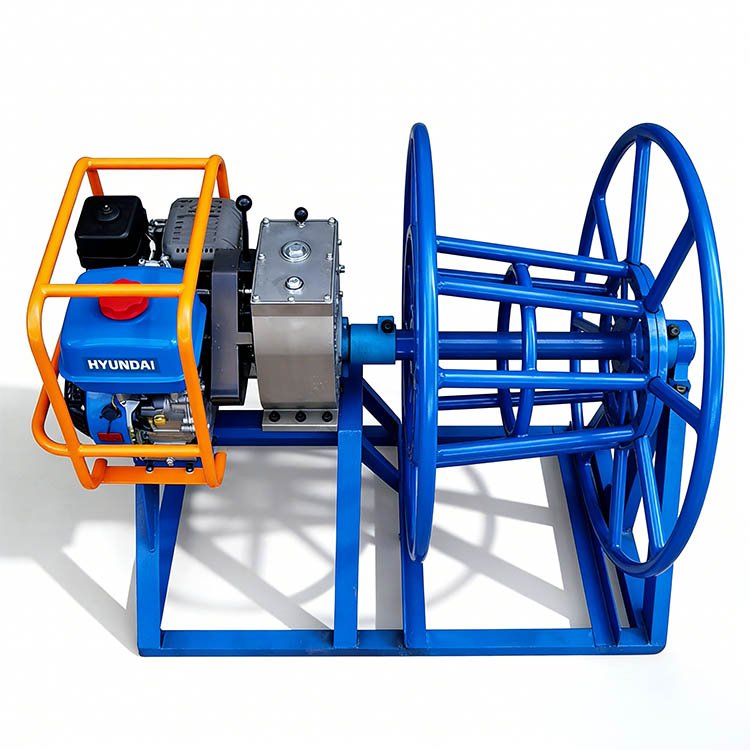

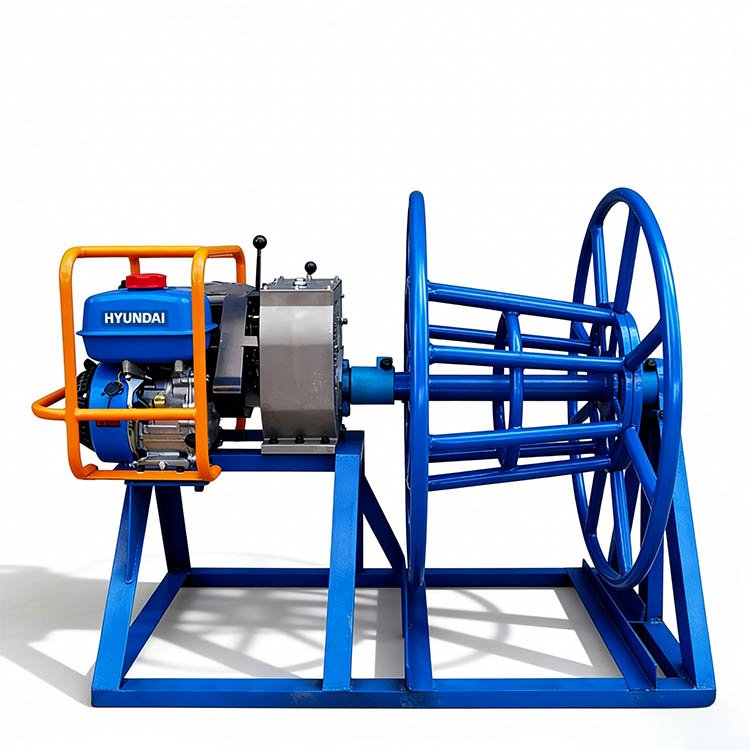

Portable Gas Winch with Heavy-Duty Cable Reel
Portable gas-powered winch with heavy-duty cable reel for efficient pulling, storage, and retrieval in construction, utility, and industrial applications.
This winch machine is used for withdrawing the old conductor or earth wire in transmission line stringing or maintenance operation. The take-up winch can be used for pulling small cable on site, or retrieving old conductor and earth wire in conductor changing or OPGW changing project.
Main Technical Parameters
Item No. 08151 08152
Model SJZ-10B SJZ-10C
Engine Model GX160 Gasoline engine Z170F Diesel
engine
Power (hp) 5.5 4
Speed(rpm) 1500 2600
Max. take-up force (KN) 10 10
Max. Take-up speed (m/min) 41 41
Reel Capacity (m) ACSR95mm? 600 600
ACSR120mm2 460 460
ACSR185mm2 320 320
Weight (kg) 150 165
Dimension(m) 1.2×0.9×1 1.2 x0.9×1
