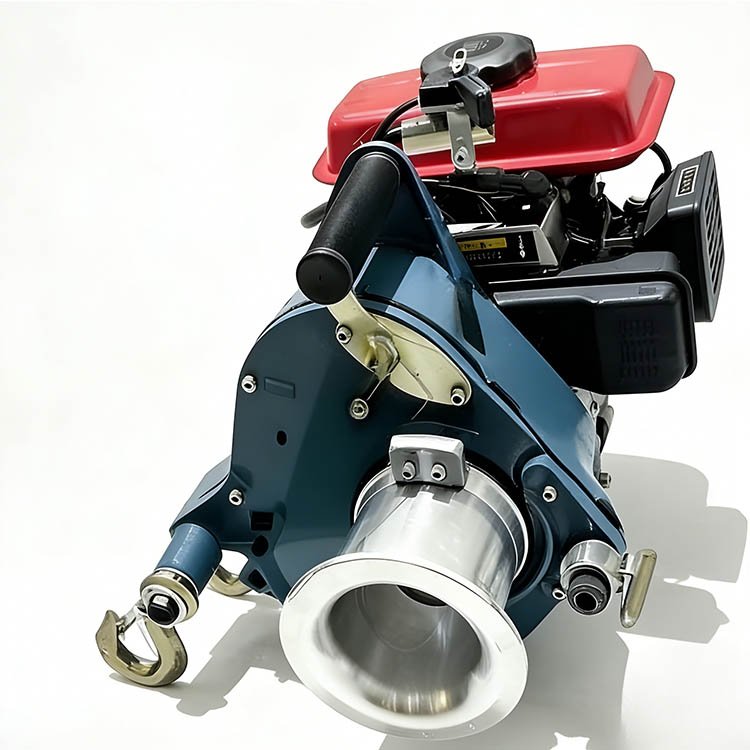

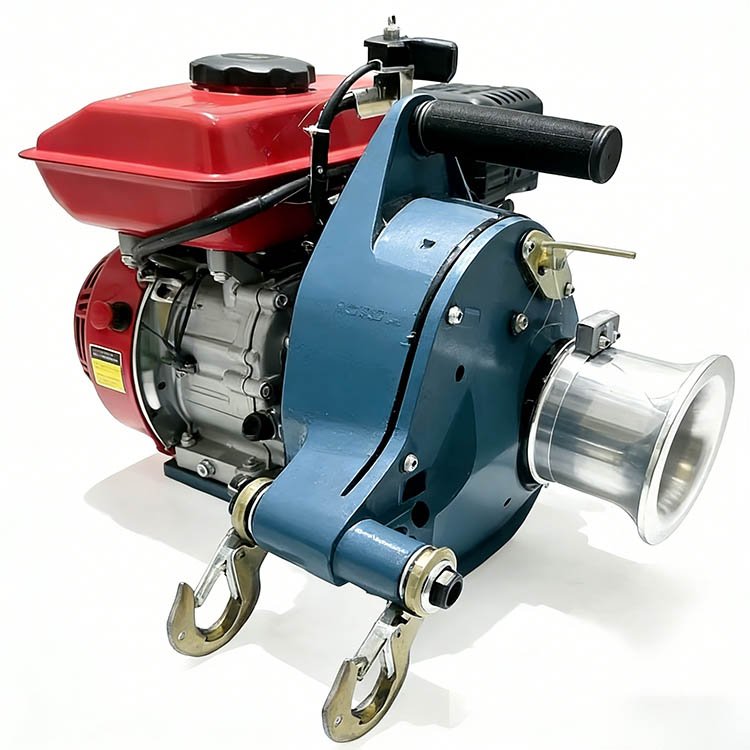

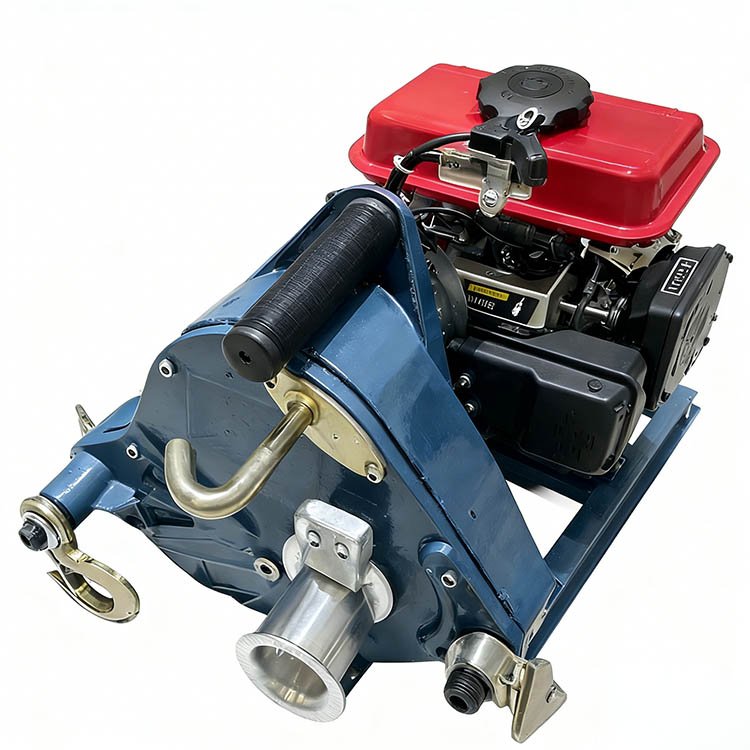

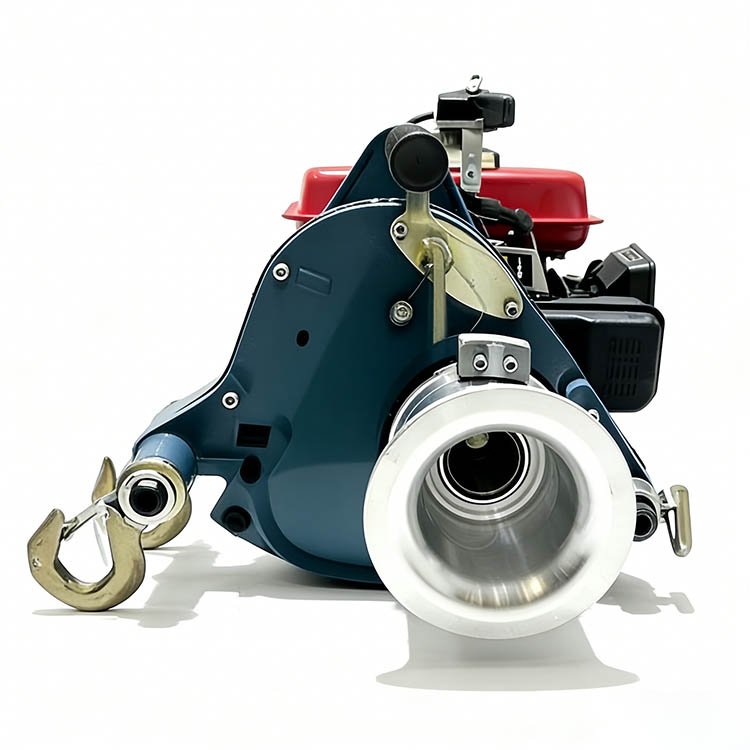

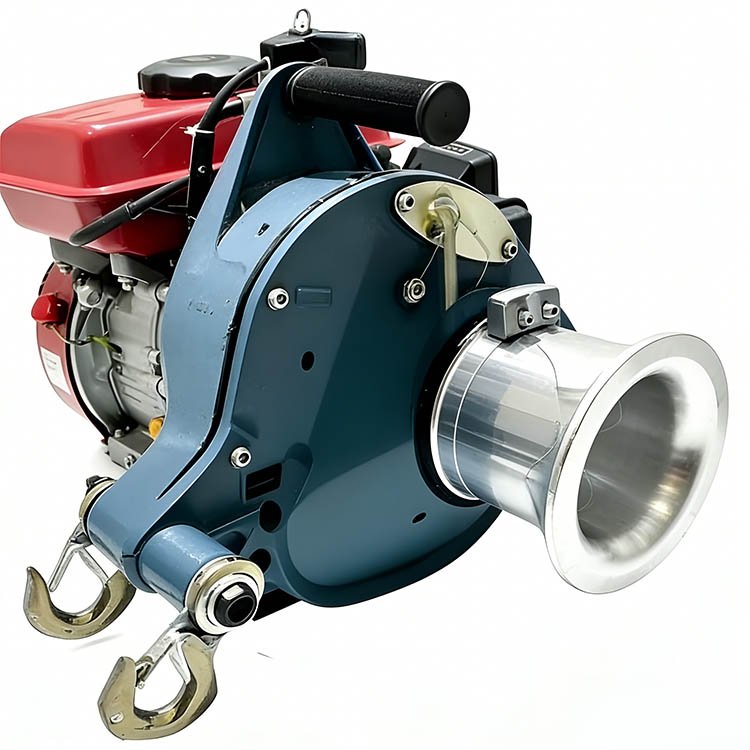

Portable Gasoline Winch for Efficient Heavy Lifting
This portable gasoline winch delivers reliable power for heavy lifting tasks. Compact design, easy operation, and durable construction make it ideal for construction, farming, and more.
The Miniature Winch is a compact, high-performance mechanical device designed for light-duty traction and lifting tasks. It is widely applicable in fields such as construction, electrical maintenance, gardening, and small-scale engineering projects, especially in narrow spaces where large equipment is inaccessible.
Main Technical Parameters
Model small roller large roller
GasolineEngine Mel Lifan 154F/P Type 54F/P Type
Single-Rope Traction Force 1000KG 500KG
Double-Rope
Traction Force 2000KG 1000KG
Applicable Traction Rope 10-16mm 10-30mm
Core Roller Diameter 57mm 115mm
Conveying Speed 5-15m/min 5-15m/min
Weight 20KG 16KG
Machine Dimensions 40*36*36cm 40*36*36cm
