Bus drop grips are woven of galvanized steel wire
Relieve any direct tension from the critical connection and absorb vibration and flexing

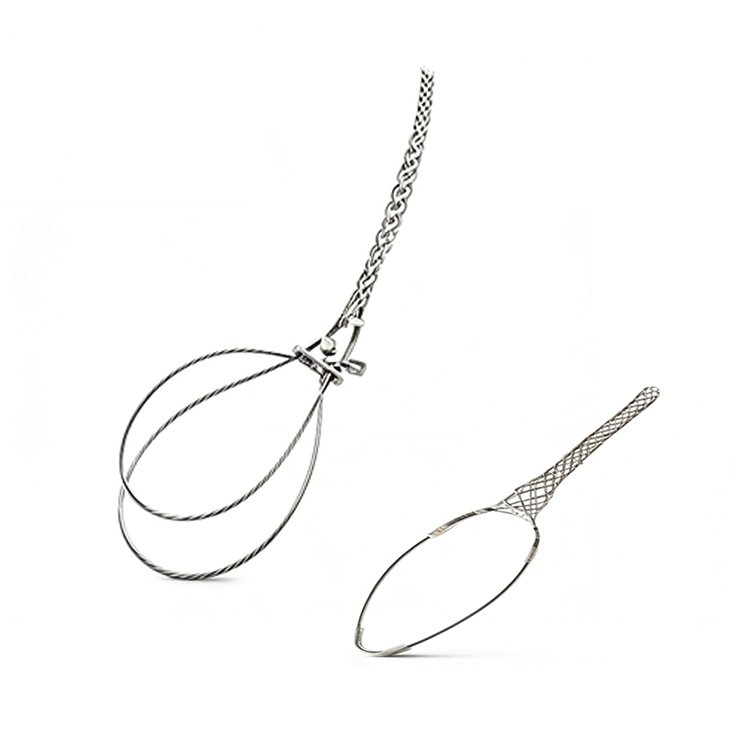

Offered with either the single eye or locking bale attachment

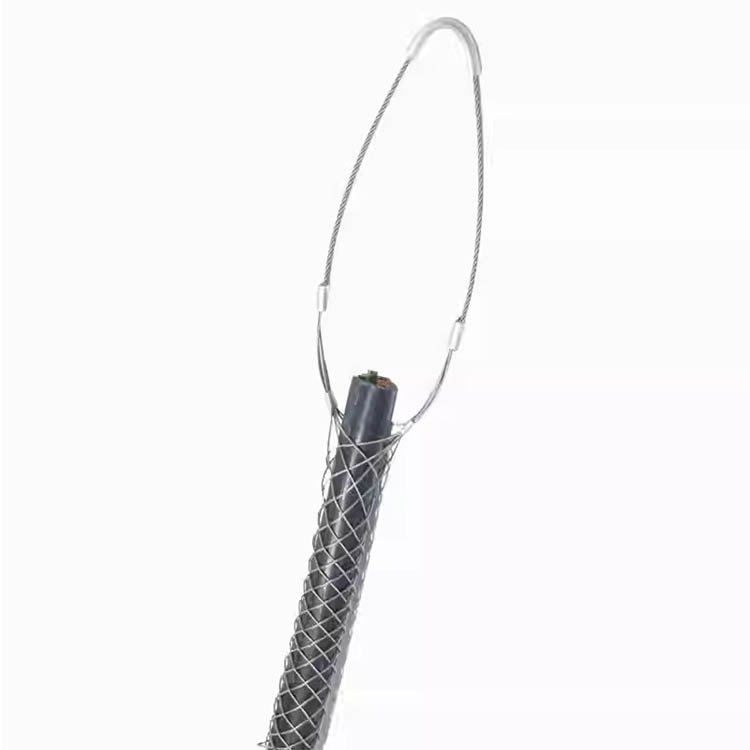

Bus drop grips are used as cable support from bus duct
Single eye for use when cable is vertical and for applications where cable bends

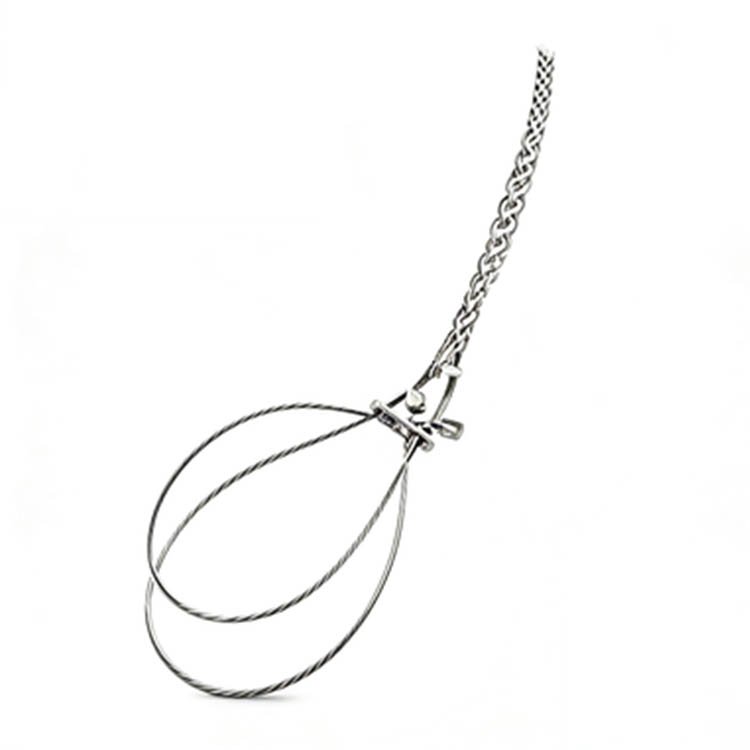

Locking bale attachment fits around beam or pipe and can be locked in place

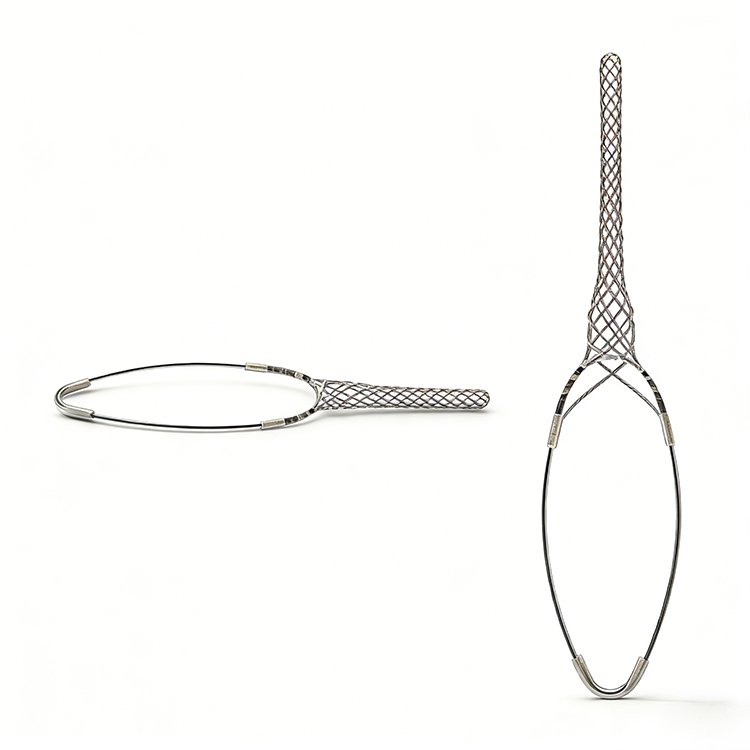

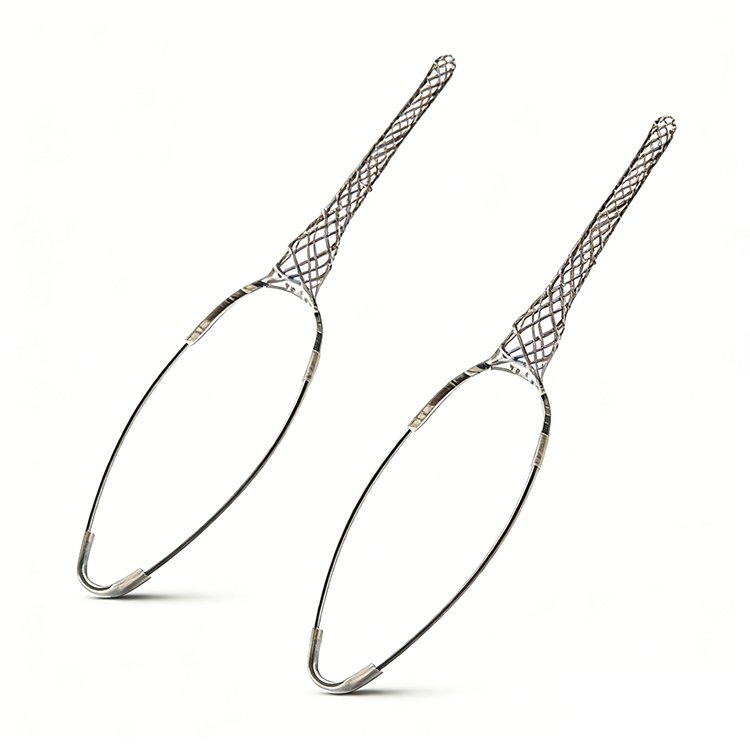

Closed Mesh, Single Eye Grips
Part Number Cable Diameter Bale Length Mesh Length Approx Break Strength
MBHG0509PL 0.22-0.32″ (5.6-8.1mm) 9″ (228.6mm) 3.5″ (88.9mm) 1100 lbs.
MBHG0710PL 0.30-0.43″ (7.6-10.9mm) 9″ (228.6mm) 4.5″ (114.3mm) 1100 lbs.
MBHG1014PL 0.41-0.56″ (10.4-14.2mm) 9″ (228.6mm) 5.0″ (127.0mm) 1100 lbs.
MBHG1419PL 0.53-0.73″ (13.5-18.5mm) 9″ (228.6mm) 6.5″ (165.1mm) 1100 lbs.
MBHG1722PL 0.70-0.85″ (17.8-21.6mm) 9″ (228.6mm) 8.5″ (215.9mm) 1900 lbs.
MBHG1925PL 0.82-1.00″ (20.8-25.4mm) 9″ (228.6mm) 8.5″ (215.9mm) 1900 lbs.
MBHG2532PL 0.96-1.25″ (24.4-31.8mm) 9″ (228.6mm) 11.0″ (279.4mm) 1900 lbs.
Closed Mesh, Single Eye Grips
Part Number Cable Diameter Bale Length Mesh Length Approx Break Strength
BSHG06 0.22-0.32″(5.6-8.1mm) 12″(304.8mm) 3.5″(88.9mm) 1100 lbs.
BSHG09 0.30-0.43″(7.6-10.9mm) 12″(304.8mm) 4.5″(114.3mm) 1100 lbs.
BSHG12 0.41-0.56″(10.4-14.2mm) 12″(304.8mm) 5.0″(127.0mm) 1100 lbs.
BSHG16 0.53-0.73″(13.5-18.5mm) 15″(381.0mm) 6.5″(165.1mm) 1100 lbs.
BSHG18 0.70-0.85″(17.8-21.6mm) 16″(406.4mm) 8.5″(215.9mm) 1900 lbs.
BSHG22 0.82-1.00″(20.8-25.4mm) 16″(406.4mm) 8.5″(215.9mm) 1900 lbs.
BSHG25 0.96-1.25″(24.4-31.8mm) 17″(431.8mm) 11.0″(279.4mm) 1900 lbs.
