Rigging Pulley Blocks with Multiple Sheaves

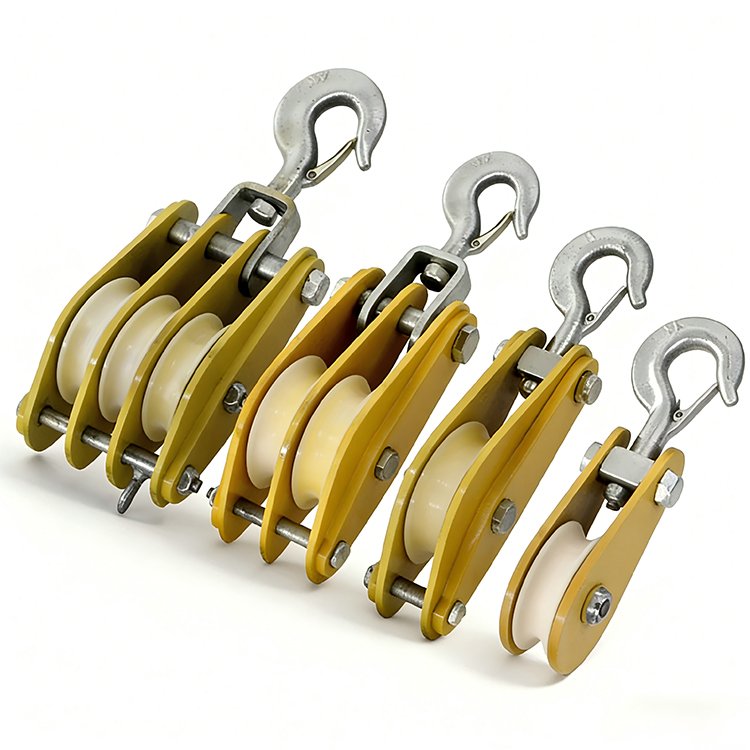

Heavy-duty pulley blocks with metal hooks, multiple yellow-framed sheaves, and white pulleys for rigging and lifting applications.
Apply to assemble and erect the tower, line construction, hoist devices and other hoist operations. Features: The product is made of Epoxy resin plate with MC nylon wheel, and it has light weight.
Main Technical Parameters
Item number Model Number of sheaves Rated load (kN) Max. Rope Diameter (mm) Weight (kg)
11401 QHJ1×1 1 10 Φ8 1.8
11402 QHJ1×2 2 Φ6 1.8
11403 QHJ1×3 3 Φ6 2.1
11411 QHJ2×1 1 20 Φ10 2.9
11412 QHJ2×2 2 Φ8 3.1
11413 QHJ2×3 3 Φ8 3.8
11421 QHJ3×1 1 30 Φ11 4.1
11422 QHJ3×2 2 Φ10 4.3
11423 QHJ3×3 3 Φ8 5.3
11424 QHJ3×4 4 Φ8 6.3
11431 QHJ5×1 1 50 Φ13 5.6
11432 QHJ5×2 2 Φ11 6.1
11433 QHJ5×3 3 Φ10 7.3
11434 QHJ5×4 4 Φ10 8.3
11441 QHJx1 1 5 Φ8 1.3
11442 QHJx2 2 Φ6 1.3
11443 QHJx3 3 Φ6 1.8
