Robust Excavator Wire Rope Mesh Grapple Attachment
This robust excavator wire rope mesh grapple attachment delivers secure, efficient material handling for construction, demolition, and industrial projects, built for long-lasting durability.
Standard Duty Support Grips
Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation
Designed for loads up to 600 lbs. and vertical runs of no more than 100 ft.
Wire mesh is produced from high quality, non-magnetic, tin coated bronze which provides superior corrosion resistance
Support Grips will hold more than one cable

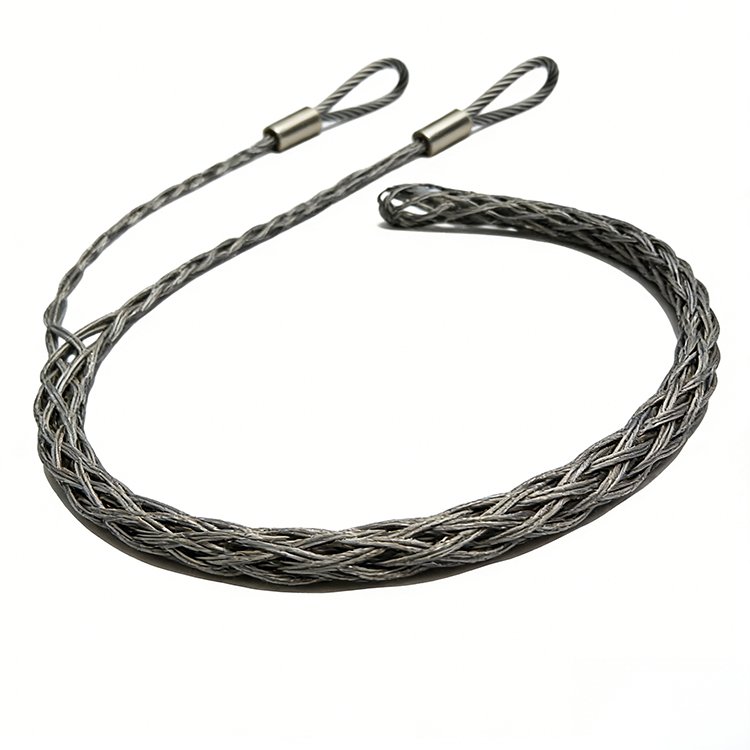

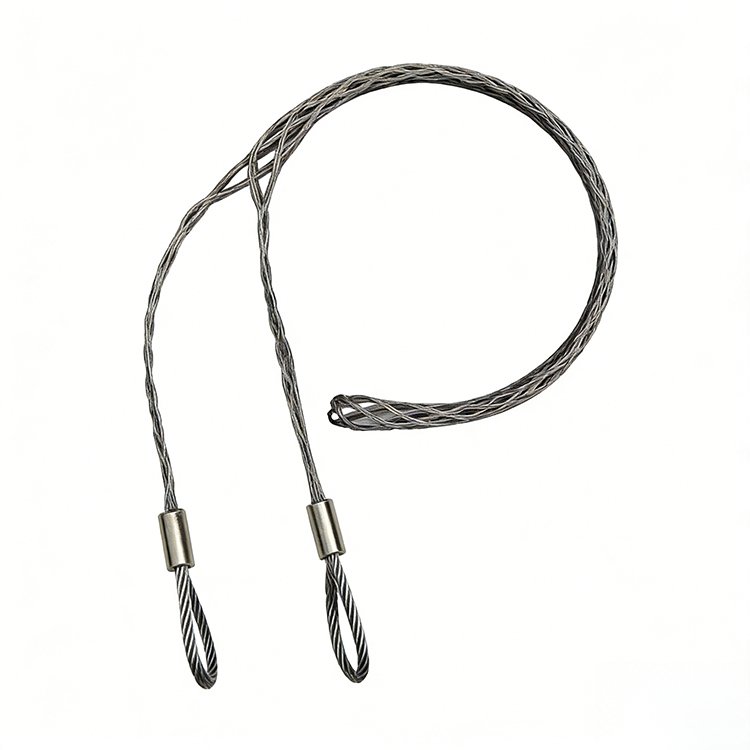

Split Lace, Double Eye
Part Number Cable Diameter Bale Length Mesh Length Approx Break Strength
DHG14L 1/4”(6.0-9.9mm) 6”(152.4mm) 6”(152.4mm) 500 lbs.
DHG38L 3/8”(10.1-11.9mm) 6”(152.4mm) 6”(152.4mm) 700 lbs.
DHG12L 1/2”(11.4-16.0mm) 7”(177.8mm) 10”(254.0mm) 1330 lbs.
DHG55L 5/8”(21.3-22.6mm) 8”(203.2mm) 18”(457.2mm) 1990 lbs.
DHG78L 7/8”(27.4-30.4mm) 13”(330.2mm) 17”(431.8mm) 3120 lbs.
DHG114L 1-1/4”(39.1-42.4mm) 8”(203.8mm) 25”(635.0mm) 3120 lbs.
DHG158L 1-5/8”(50.3-51.8mm) 12”(304.8mm) 27”(685.8mm) 4490 lbs.
DHG214L 2-1/4”(59.7-59.9mm) 14”(355.6mm) 26”(660.4mm) 6560 lbs.
DHG3L 3”(75.9-76.6mm) 18”(457.2mm) 30”(762.0mm) 6560 lbs.
DHG4L 4”(99.2-101.6mm) 20”(508.0mm) 38”(965.2mm) 7860 lbs.
DHG5L 5”(125.6-127.9mm) 12”(304.8mm) 55”(1397mm) 7680 lbs.
