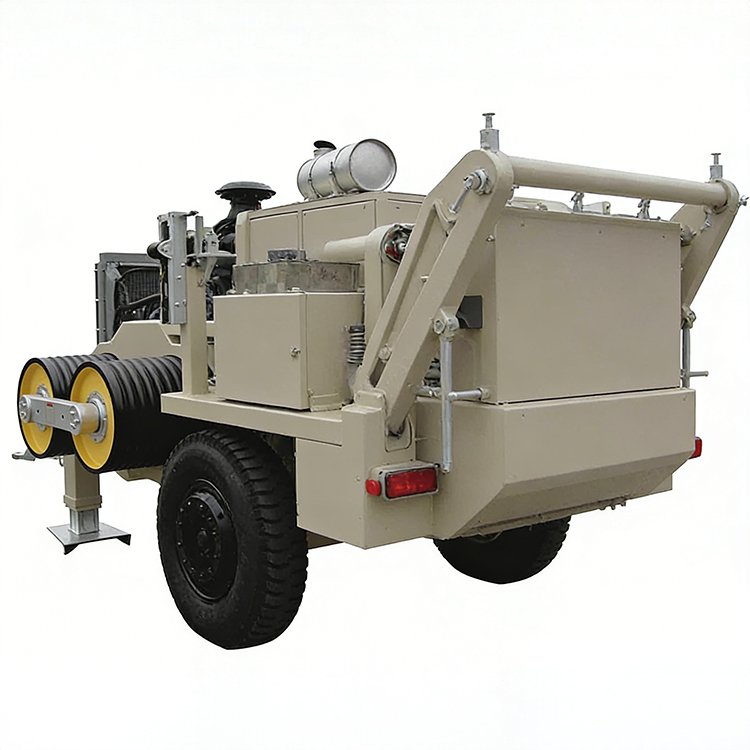

Robust Trailer-Mounted Hydraulic Cable Puller for Power Line Work
Robust trailer-mounted hydraulic cable puller for efficient power line installation. Features durable reels, powerful engine, and easy mobility for construction projects.
Product Features
This SA-YQ180 Hydraulic Puller is designed with an overload automatic protection system. Users can preset the maximum traction force for conductor-stringing operation. Both traction force and pulling speed are steplessly adjustable. It is convenient for our users to read the pull in the rope from the line pull gauge.
Technical Parameters
Model SA-YQ180 Hydraulic Puller
Maximum Traction Force (kN) 180
Continuous Tractive Effort (kN) 150
Maximum Pulling Spent (km√h) 5
Bullwheel Bottom of Groove Diameter (mm Φ630
Number of Bullwheel Grooves 9
Maximum Diameter of Suitable Steel Rope (mm) Φ24
Maximum Through Connector Diameter (mm) Φ65
Engine Power / Speed (kW/rpm) 209/2100
Maximum Pulling Spent (km√h) 5500x 2170x 2570
Weight (kg) 8000
Main Configurations
Engine Cummins(U5A) water-cooled diesel engine
Main Variable Displacement Pump, Main Motor Rexroth (BOSCH)
Reducer RR (ltalian)
Main Hydraulic Valves Rexroth(BOSCH)
Radiator AKG
Hydraulic Instrument WAIKA
Suitable Drum Model GSP1600 (ltem number: 07125D)
