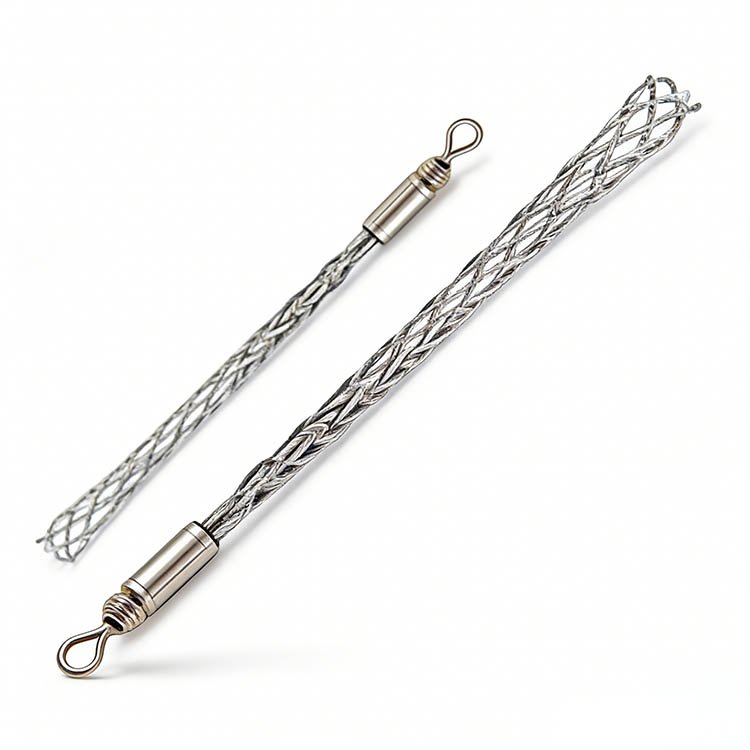

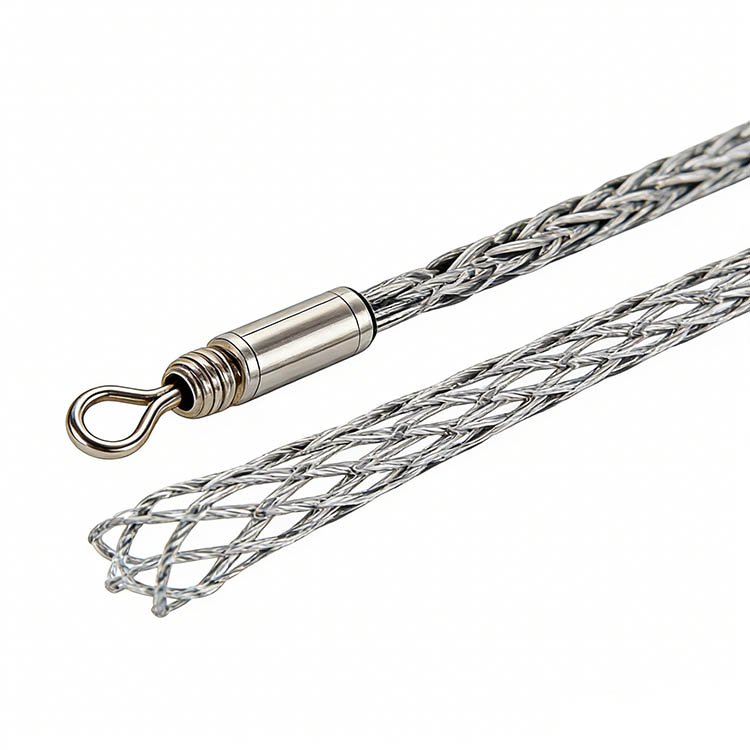

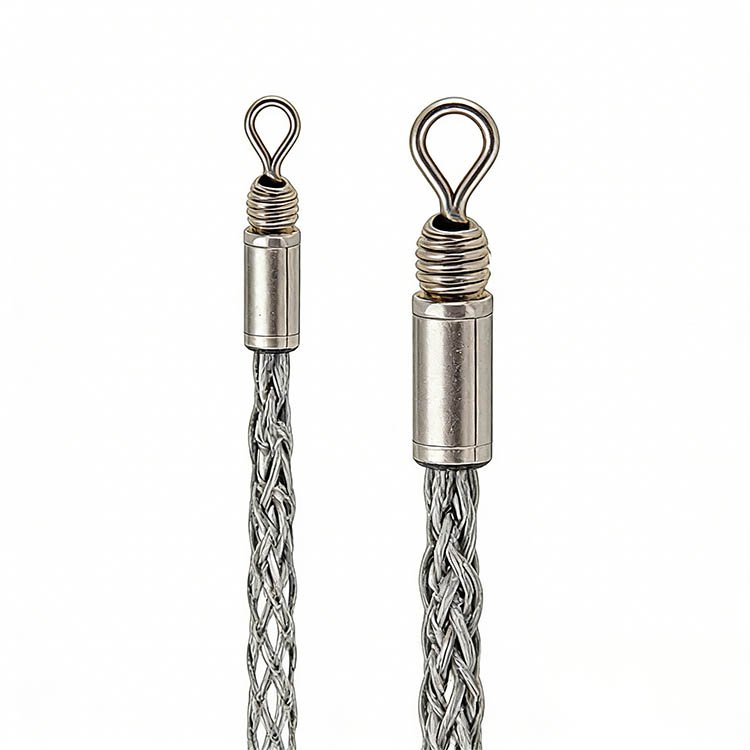

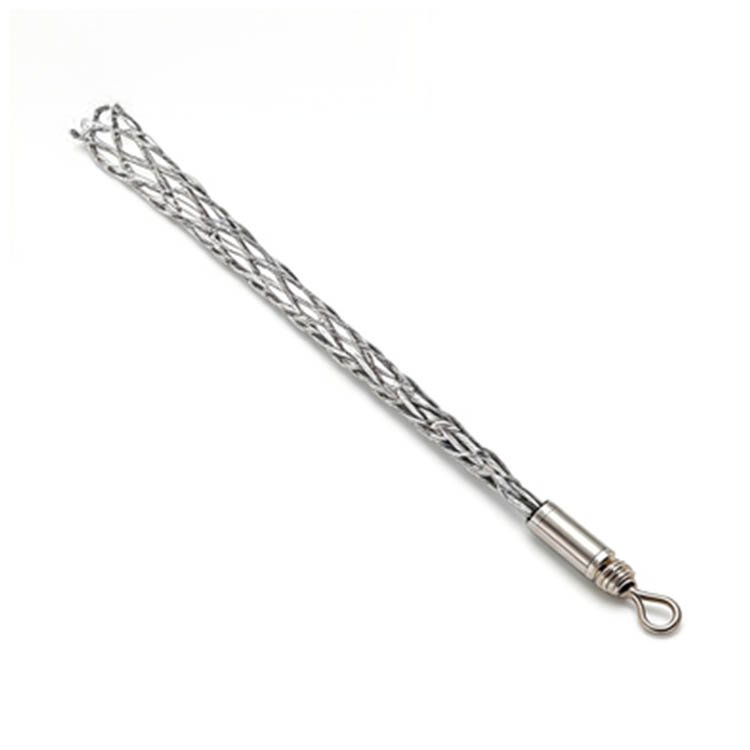

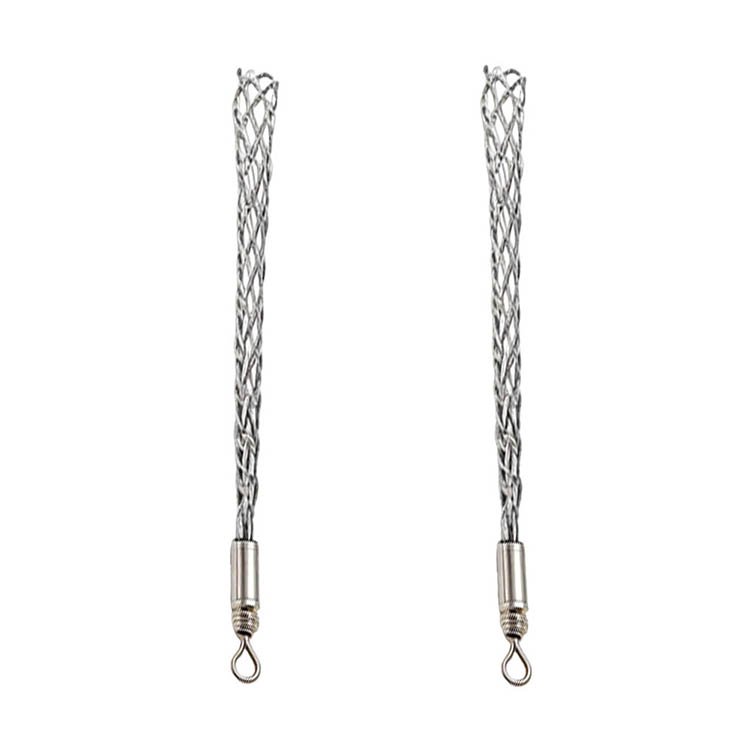

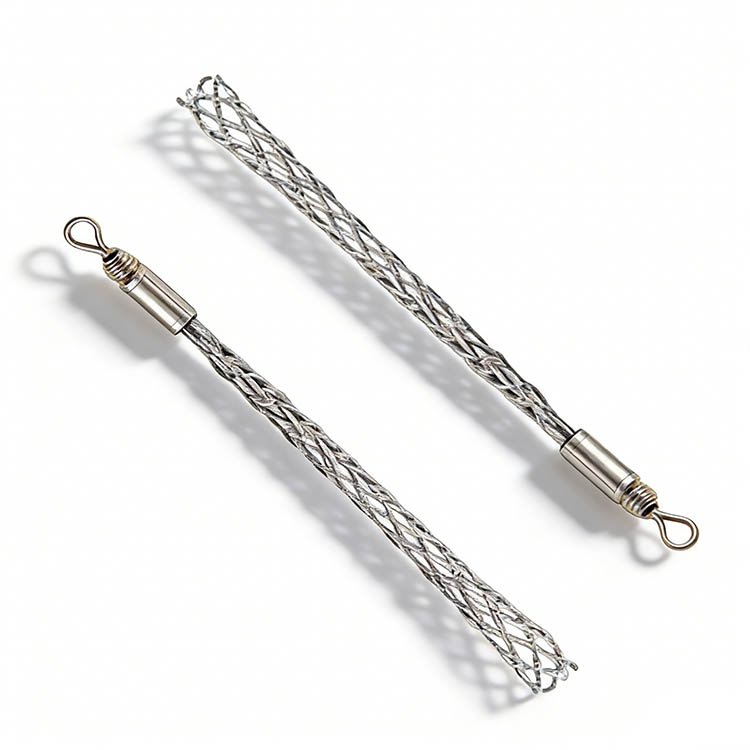

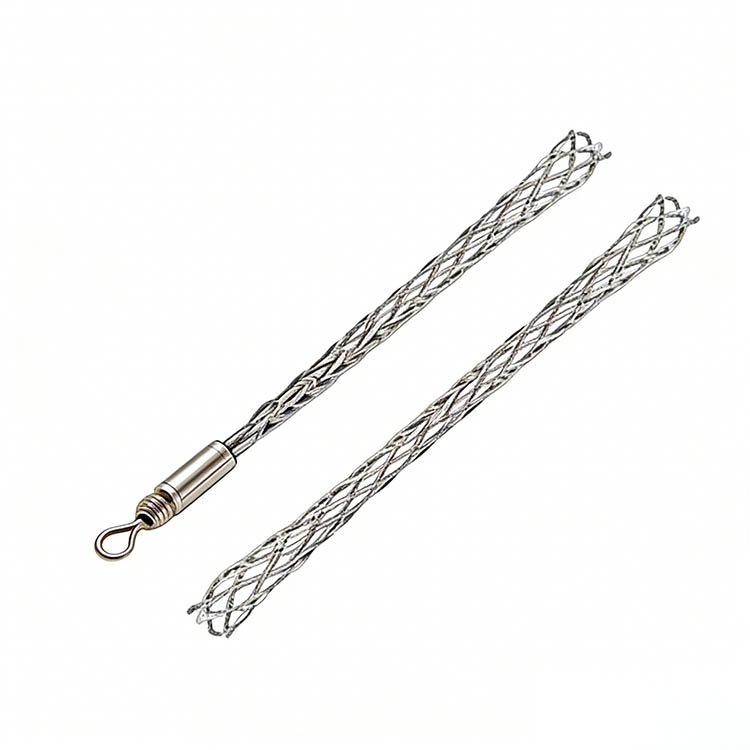

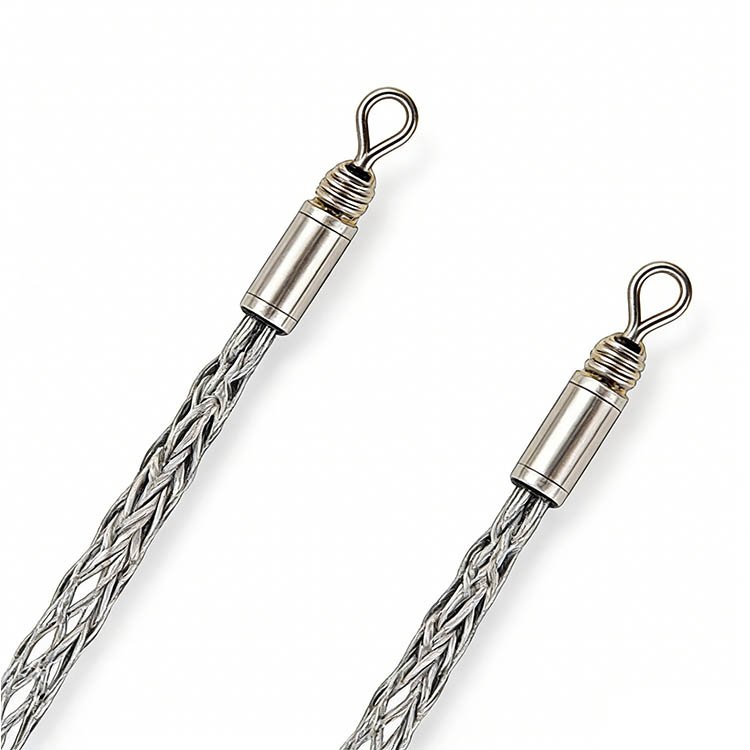

Stable Pulling Grips
Stable Pulling Grips are woven in Galvanized steel or stainless steel wire mesh
Single eye easily mates to swivel and line type connectors. Easy attachment to pull line
Available in standard length, double weave
Used when cable end is not accessible
Used in factory maintenance and construction, utility work and replacement of underground cable
Swivel Eye Pulling Grips
Part Number Cable Diameter Mesh Length Approx Break Strength
SPG0406 0.15-0.24″ (3.8-6.1mm) 7.5″ (190.5mm) 100 lbs.
SPG0609 0.23-0.35″ (6.0-8.9mm) 8.5″ (215.9mm) 100 lbs.
SPG0912 0.35-0.49″ (9.0-12.4mm) 10″ (254.0mm) 280 lbs.
SPG1214 0.47-0.55″ (12.4-13.9mm) 12″ (304.8mm) 350 lbs.
SPG1419 0.55-0.75″ (14.0-19.0mm) 15″ (381.0mm) 500 lbs.
SPG1925 0.75-1.00″ (19.0-25.4mm) 17″ (431.8mm) 900 lbs.
SPG2532 1.00-1.24″ (25.4-31.8mm) 17″ (431.8mm) 900 lbs.
