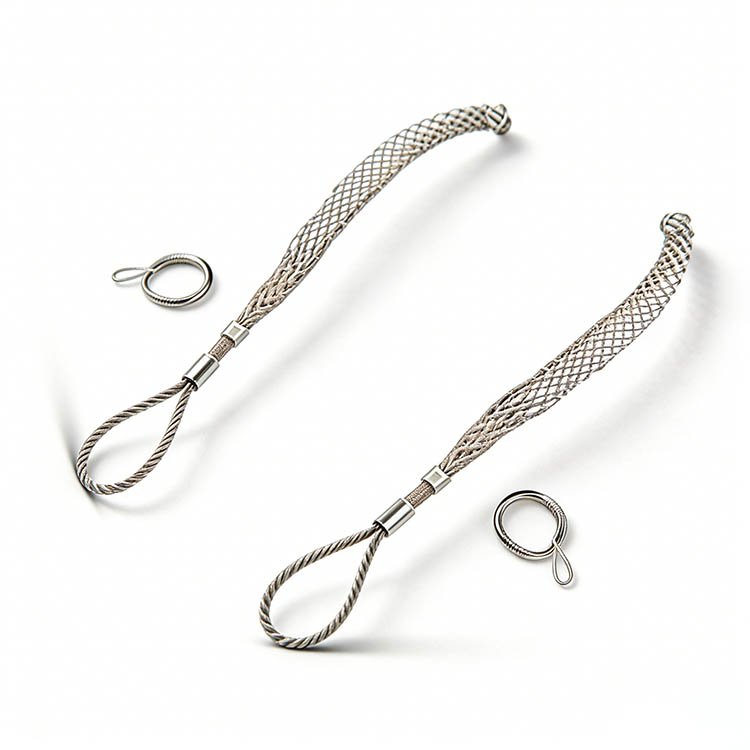

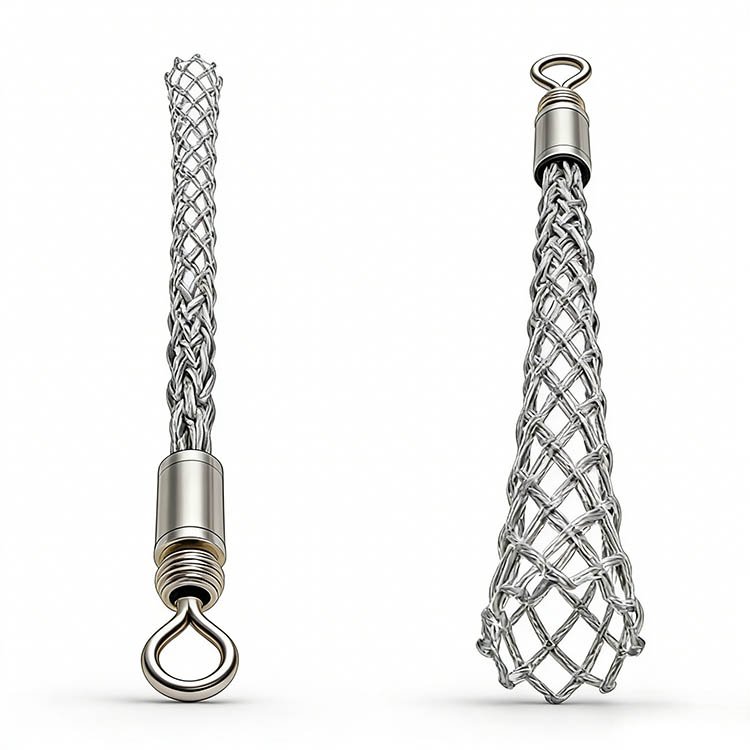

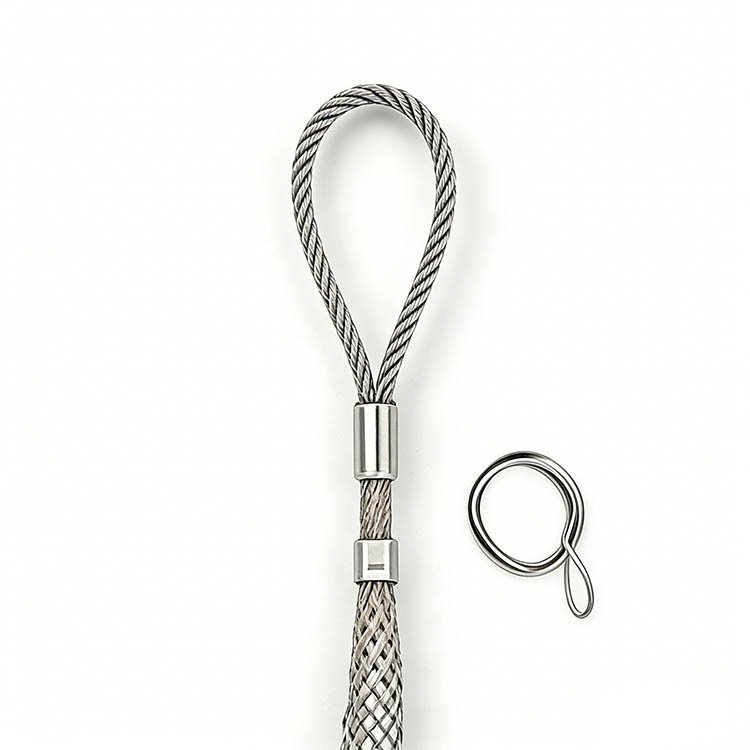

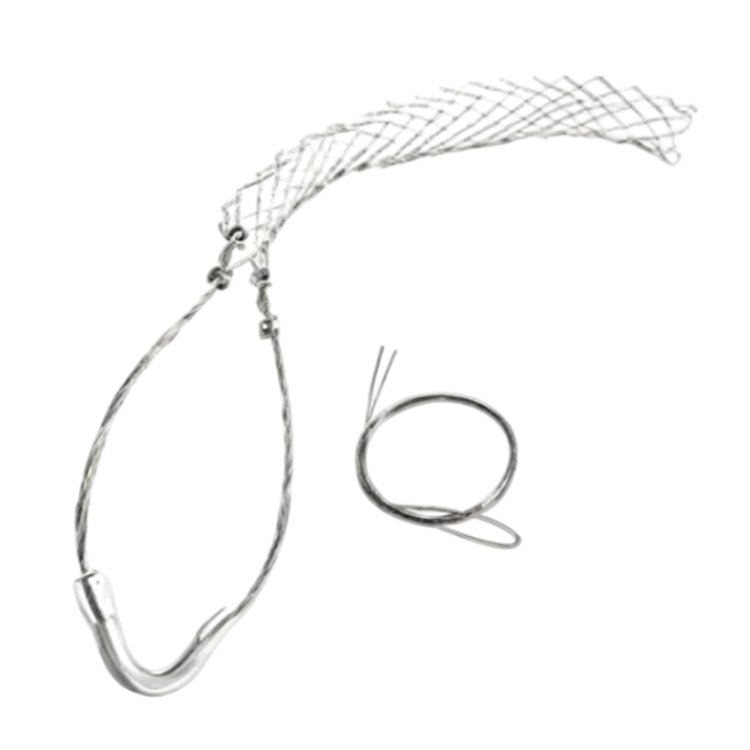

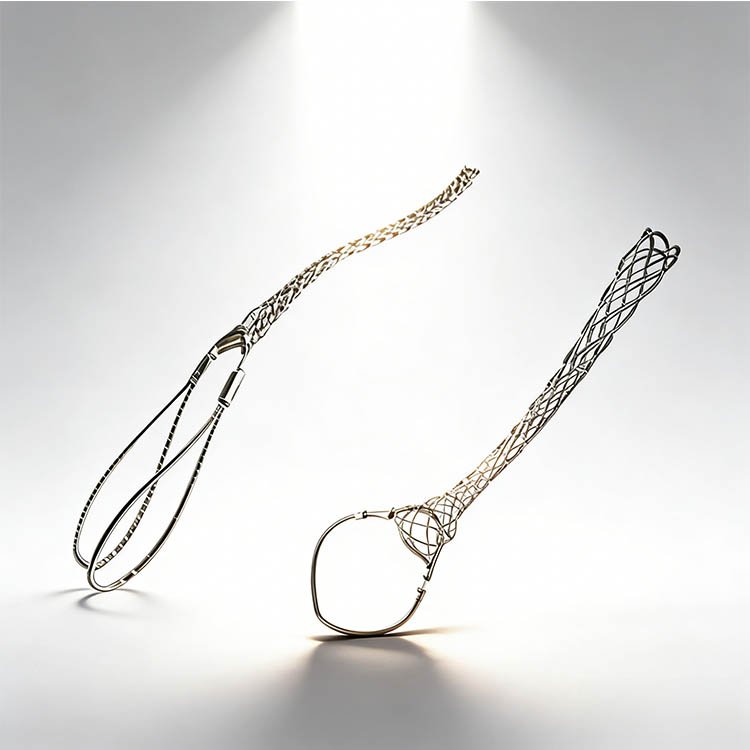

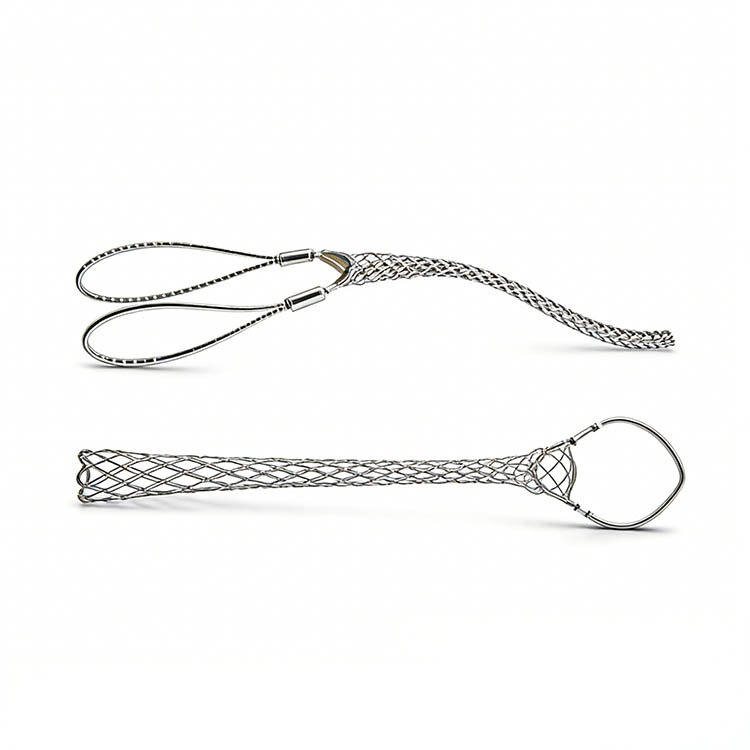

Strain Relief Grips
Securely hold, pull or support the wire, rope, tubing or fiber optic cable
Pull cable, rope, or tubing into place, support it after it has been installed, to prevent cable pullout
provide strain-relief that reduces the arc of bend at points of wire connections or terminations
wide selection of style, weave, attachment and wire options designed

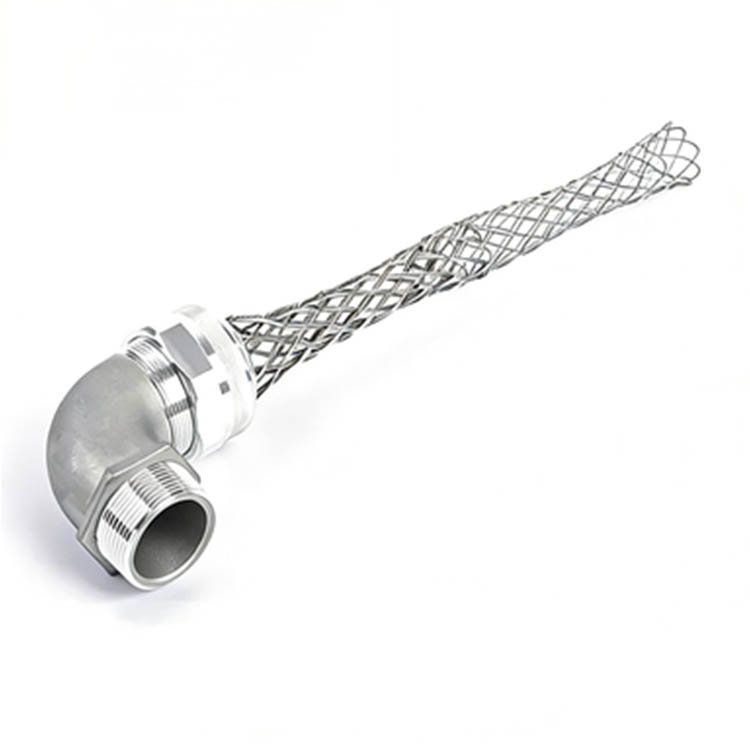

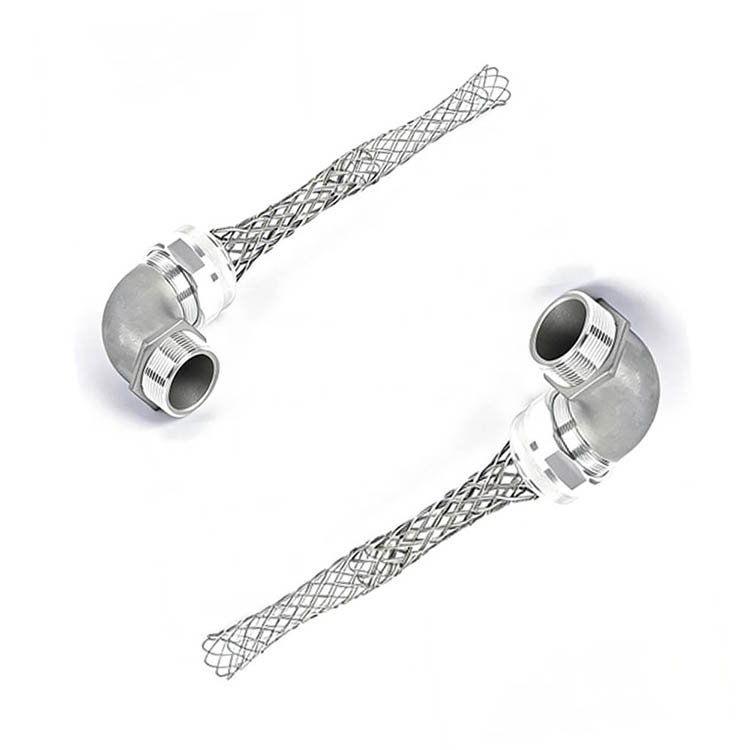

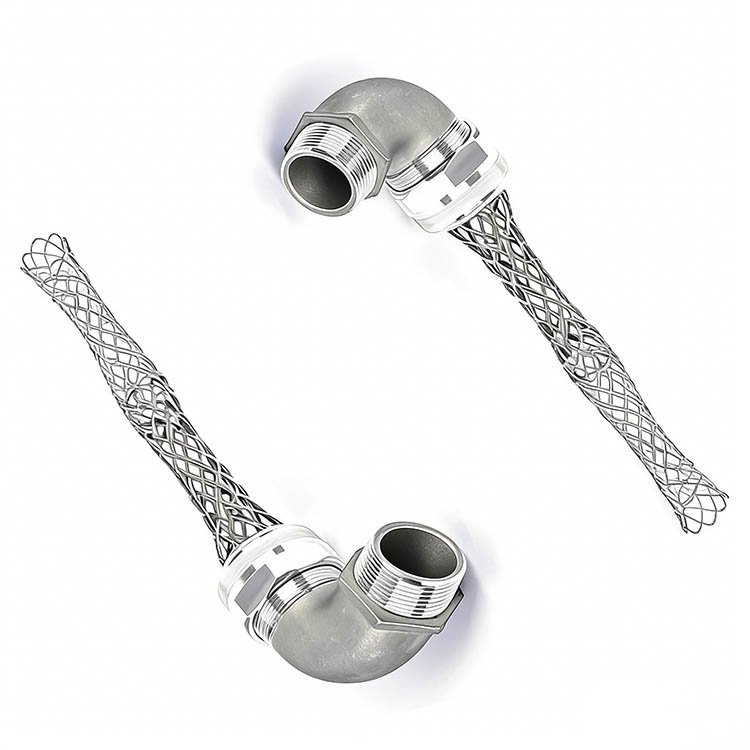

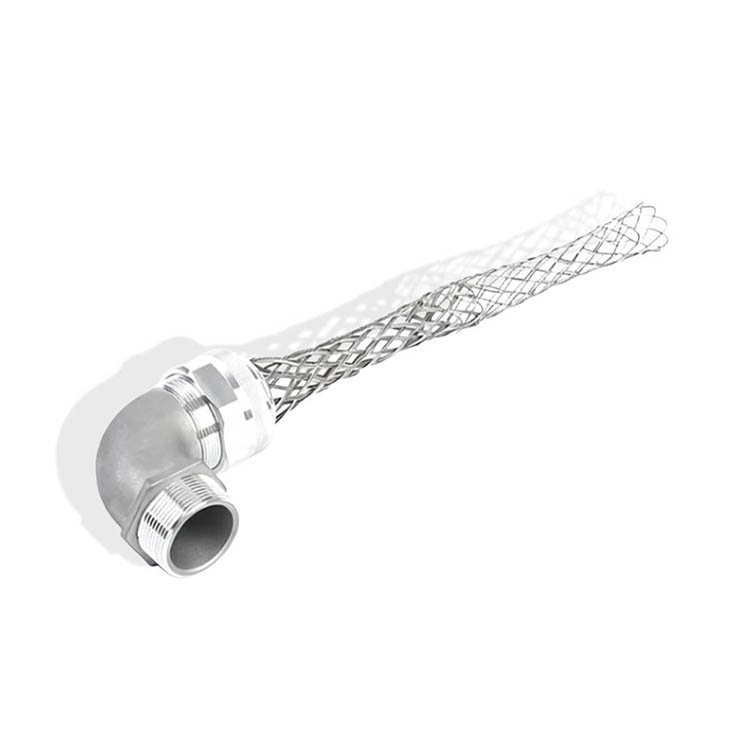

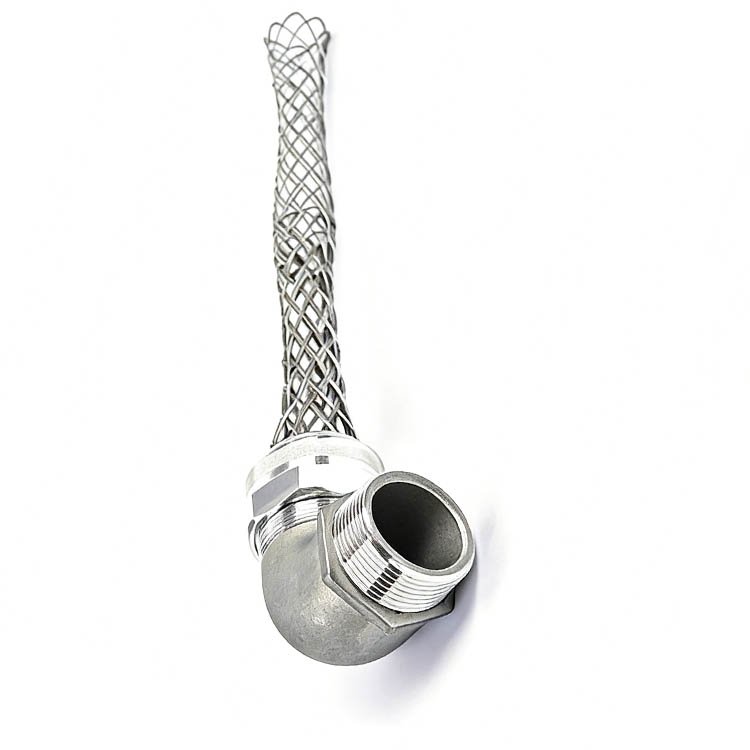

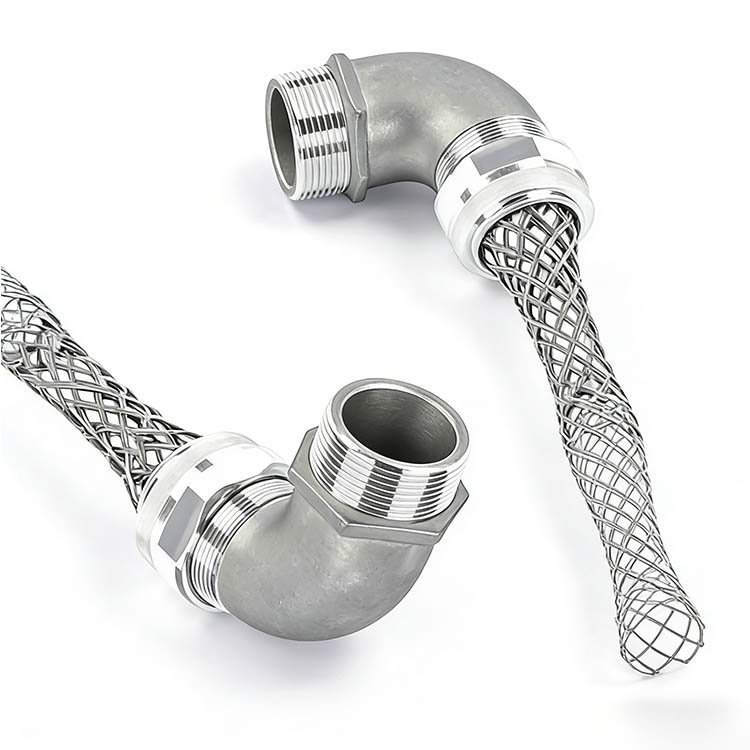

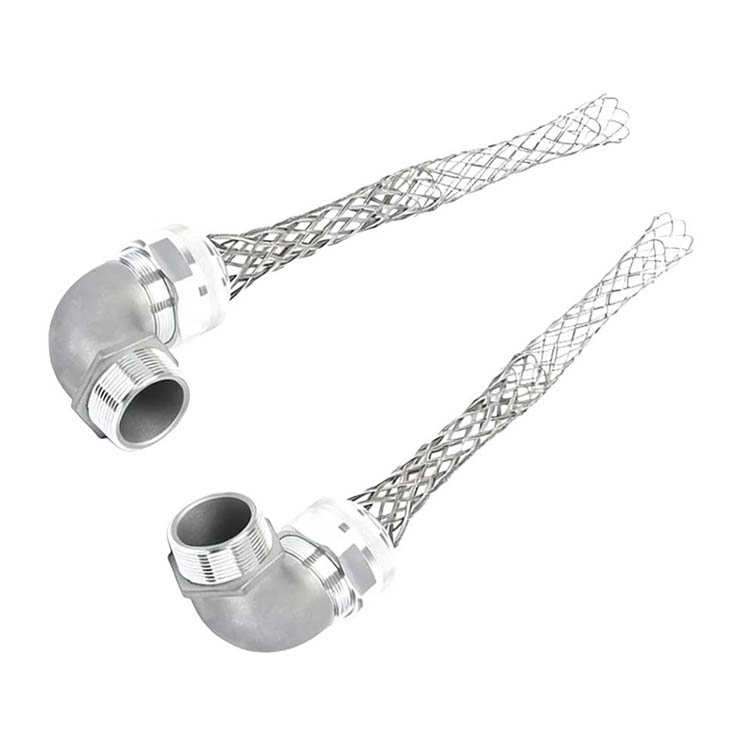

Deluxe Cord Grips, 90°Male Connector
Part Number Cable Diameter NPT Fittings Mesh Length
DCG9409 0.250-0.375″(6.35-9.52mm) 1/2″ 4.25″(107.95mm)
DCG9412 0.375-0.500″(9.52-12.70mm) 1/2″ 6.25″(158.75mm)
DCG9415 0.500-0.625″(12.70-15.88mm) 1/2″ 6.50″(165.10mm)
DCG9812 0.375-0.500″(9.52-12.70mm) 3/4″ 6.25″(158.75mm)
DCG9815 0.500-0.625″(12.70-15.88mm) 3/4″ 6.50″(165.10mm)
DCG9819 0.625-0.750″(15.88-19.05mm) 3/4″ 8.50″(215.90mm)
DCG9822 0.750-0.875″(19.05-22.23mm) 1″ 9.25″(234.95mm)
DCG9825 0.875-1.000″(22.23-25.40mm) 1″ 9.50″(241.30mm)
DCG91025 0.875-1.000″(22.23-25.40mm) 1-1/4″ 9.50″(241.30mm)
DCG91028 1.000-1.125″(25.40-28.58mm) 1-1/4″ 9.50″(241.30mm)
DCG91231 1.125-1.250″(28.58-31.75mm) 1-1/2″ 10″(254.00mm)
DCG91234 1.250-1.375″(31.75-34.93mm) 1-1/2″ 12″(304.88mm)
